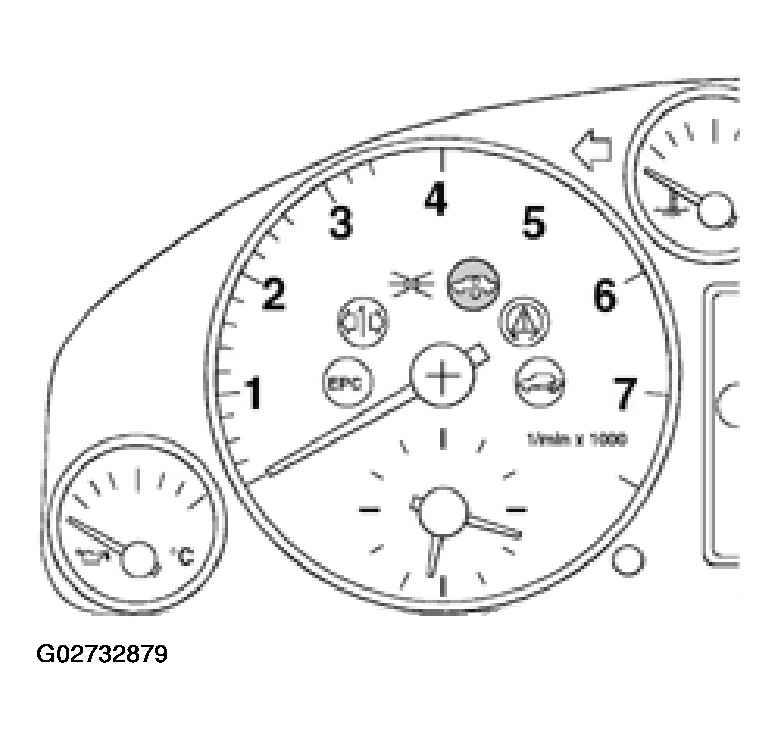

Indicator lamp for level control system -K134-
The malfunction may have the following causes if the self leveling suspension system indicator light K134 does not go out when the ignition is switched on and the check routine has been completed:
- Voltage below 10 V
- Malfunction in the self leveling suspension system. See DTC TABLE, FOUR-WHEEL SELF LEVELING SUSPENSION SYSTEM , check DTC Memory.
- Instrument cluster malfunctioning
- The indicator light flashes at around 1 Hz if the vehicle is in an extreme low or extreme high level position at ignition.
