Check Control Module Versions (function 01)

• Press Buttons -0- and -1-.

Display:

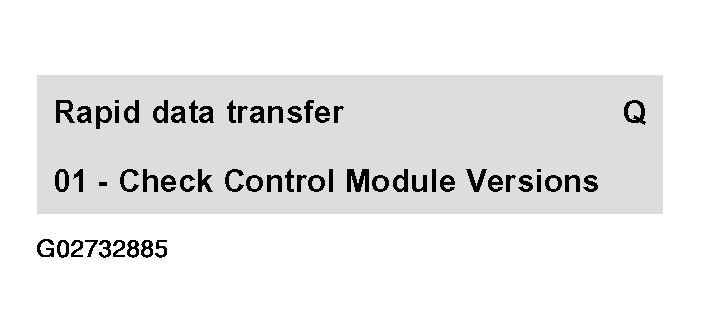

Fig 1: VAG 1551 Scan Tool - 01 - Check Control Module Version

Courtesy of AUDI OF AMERICA, INC.

• Confirm the entry using the Q button.
• Display:

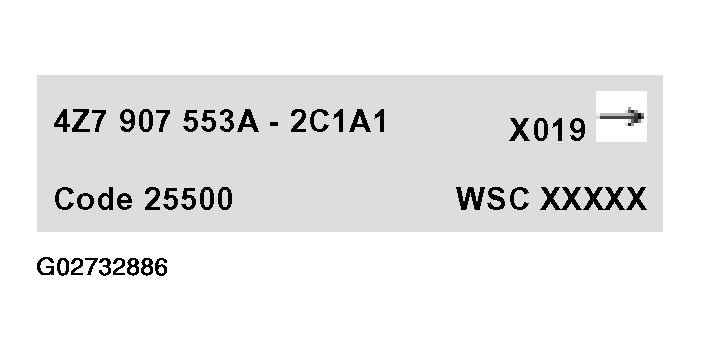

  Fig 2: VAG 1551 Scan Tool - Code 25500

  Courtesy of AUDI OF AMERICA, INC.

Explanation of the display:

• 4Z7 907 553A: Number of the control module
• 2C1A1: Hardware version
• X019: Software version of the control module (other values may also be displayed)
• 25500: Code Control Module. See CODE CONTROL MODULE (FUNCTION 07)  .

  Using the --> button causes return to the basic function mode.

  Display:

  Fig 3: VAG 1551 Scan Tool - Select Function XX

  Courtesy of AUDI OF AMERICA, INC.
