Working procedure

Position the vehicle on a level surface.
Switch the ignition on.
The basic setting is performed via Function 11 "Log-in".)

Perform Function "11 - Log-in"

Display:

Fig 1: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

Press Buttons -1- and -1-.

Display:

Fig 2: VAG 1551 Scan Tool - 11 - Login Procedure

Courtesy of AUDI OF AMERICA, INC.

Confirm the entry using the Q button.

Display:

Fig 3: VAG 1551 Scan Tool - Enter Code XXXXX

Courtesy of AUDI OF AMERICA, INC.

Press Buttons 3, 1, 5, 6 and 4

Display:

Fig 4: VAG 1551 Scan Tool - Code 31564

Courtesy of AUDI OF AMERICA, INC.

Confirm the entry using the Q button.

NOTE: For VAS 5051 and VAS 5052 use back arrow.

Display:

Fig 5: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

Entry of the measured height values is performed using Function 10 "Adaptation".

Press Buttons -1- and -0-.

Display:

Fig 6: VAG 1551 Scan Tool - 10 - Adaptation

Courtesy of AUDI OF AMERICA, INC.

Confirm the entry using the Q button.

Display:

Fig 7: VAG 1551 Scan Tool - Enter Channel Number XX

Courtesy of AUDI OF AMERICA, INC.

Press Buttons 0 and 1

Display:

Fig 8: VAG 1551 Scan Tool - Channel Number 01

Courtesy of AUDI OF AMERICA, INC.

Confirm the entry using the Q button.

Display:

Fig 9: VAG 1551 Scan Tool - Wait

Courtesy of AUDI OF AMERICA, INC.

Wait, the vehicle will now be raised automatically to two different height levels. The following is displayed after completion of adjustment:

Display:

Press the --> button.

Fig 10: VAG 1551 Scan Tool - Enter Value For Wheel FL

Courtesy of AUDI OF AMERICA, INC.

Display:

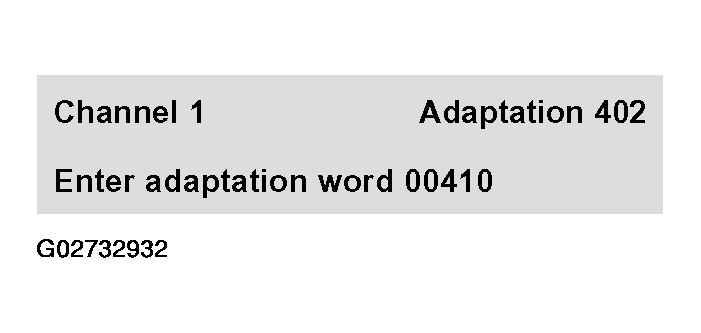

Fig 11: VAG 1551 Scan Tool - Enter Adaptation Word 00410

Courtesy of AUDI OF AMERICA, INC.

Measure height dimension. Value entered = Bodywork reference point relative to wheel center point in mm. In example display shown, distance measured is 410 mm. Also see HEIGHT DIMENSION, DETERMINING .

NOTE:

A height dimension must be entered for each measurement position (at each wheel) even if the figure displayed is correct.
When using the VAS 5051 for Basic Setting, be sure to press the appropriate symbol to advance the program, otherwise the test step may not be completed.
When using the VAS 5051 or VAS 5052, each adaptation value must be changed and re-saved so that each adaptation step is completed.

Display:

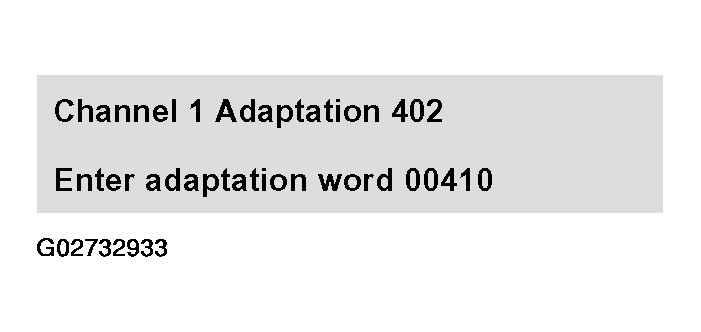

Fig 12: VAG 1551 Scan Tool - Enter Adaptation Word 00410

Courtesy of AUDI OF AMERICA, INC.

Confirm the entry using the Q button.

Display:

Fig 13: VAG 1551 Scan Tool - Value Permissible

Courtesy of AUDI OF AMERICA, INC.

Confirm the entry using the Q button.

Display:

Fig 14: VAG 1551 Scan Tool - Store Changed Value?

Courtesy of AUDI OF AMERICA, INC.

Confirm the entry using the Q button.

Display:

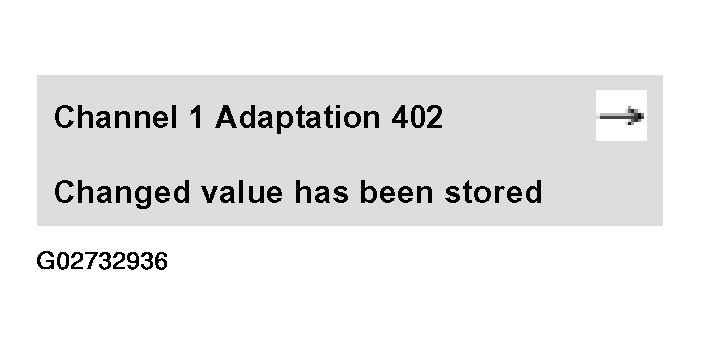

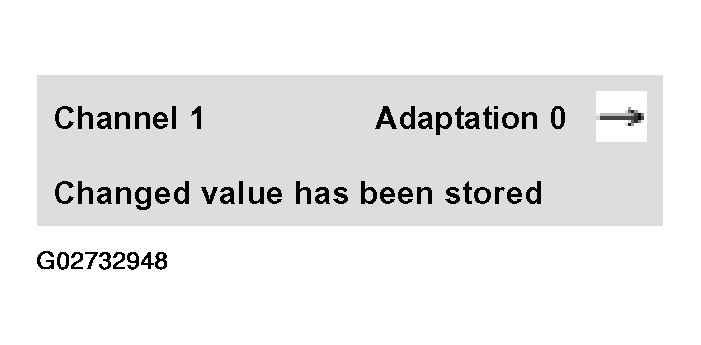

Fig 15: VAG 1551 Scan Tool - Changed Value Has Been Stored

Courtesy of AUDI OF AMERICA, INC.

Press the --> button.

Display:

Fig 16: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

Continue adaptation for the remaining three wheels.
- Channel 02 - Wheel fr
- Channel 03 - Wheel rl
- Channel 04 - Wheel rr
  Always measure the bodywork height on the corresponding wheel.

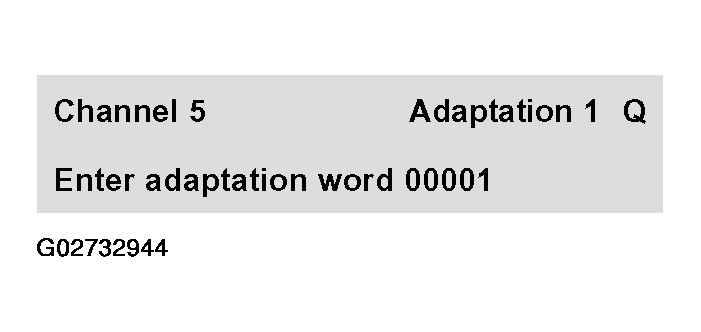

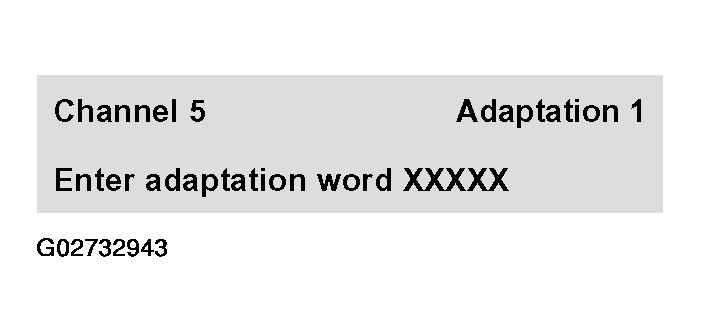

  After entry of the four measured values the entry must be confirmed using Function 10 "Adaptation".

Display:

Fig 17: VAG 1551 Scan Tool - Select Function XX
