Contact assignment of multi-pin connector I - 18-pin - on wiring harness/self leveling suspension system -J197-

Control module connection to valve block, compressor and relay.

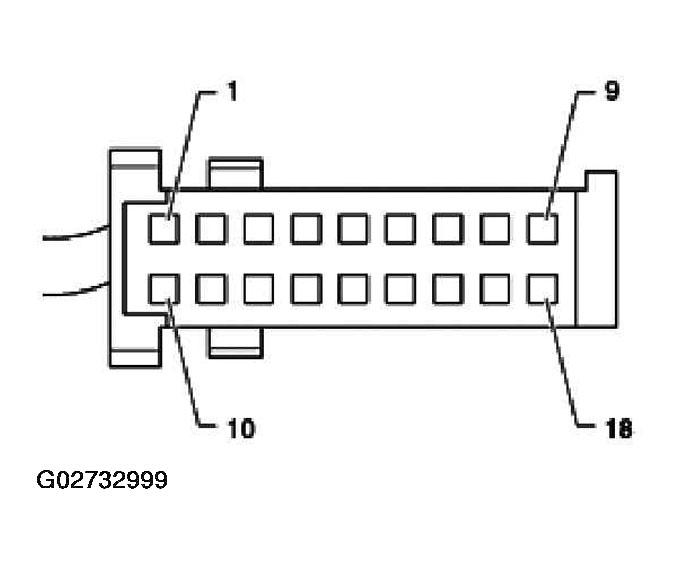

Fig 1: Identifying Connector Terminal I - 18 Pin - Wiring Harness/Self Leveling Suspension System -J197-
G02732999Courtesy of AUDI OF AMERICA, INC.
