DTC table

NOTE:

All possible malfunctions which can be detected by the level control system control module -J197- are listed below by their malfunction code. Existing malfunctions are printed out with their malfunction code (5-digit) only if the printer of the VAG1551 is switched on
If a malfunction occurs on a long-term basis the malfunction-indicator light for the self leveling suspension system remains on until the malfunction has been eliminated and the DTC memory has been cleared.
If malfunctions occur only occasionally and/or if the DTC memory has not been cleared following elimination of the malfunction, this malfunction is also indicated as a "sporadically occurring malfunction". "/SP" appears on the right in the display of the VAG1551 and the malfunction-indicator light does not illuminate.
If malfunctioning components are detected, also check the wiring to the components for short-circuits and line breakage using the circuit diagram.

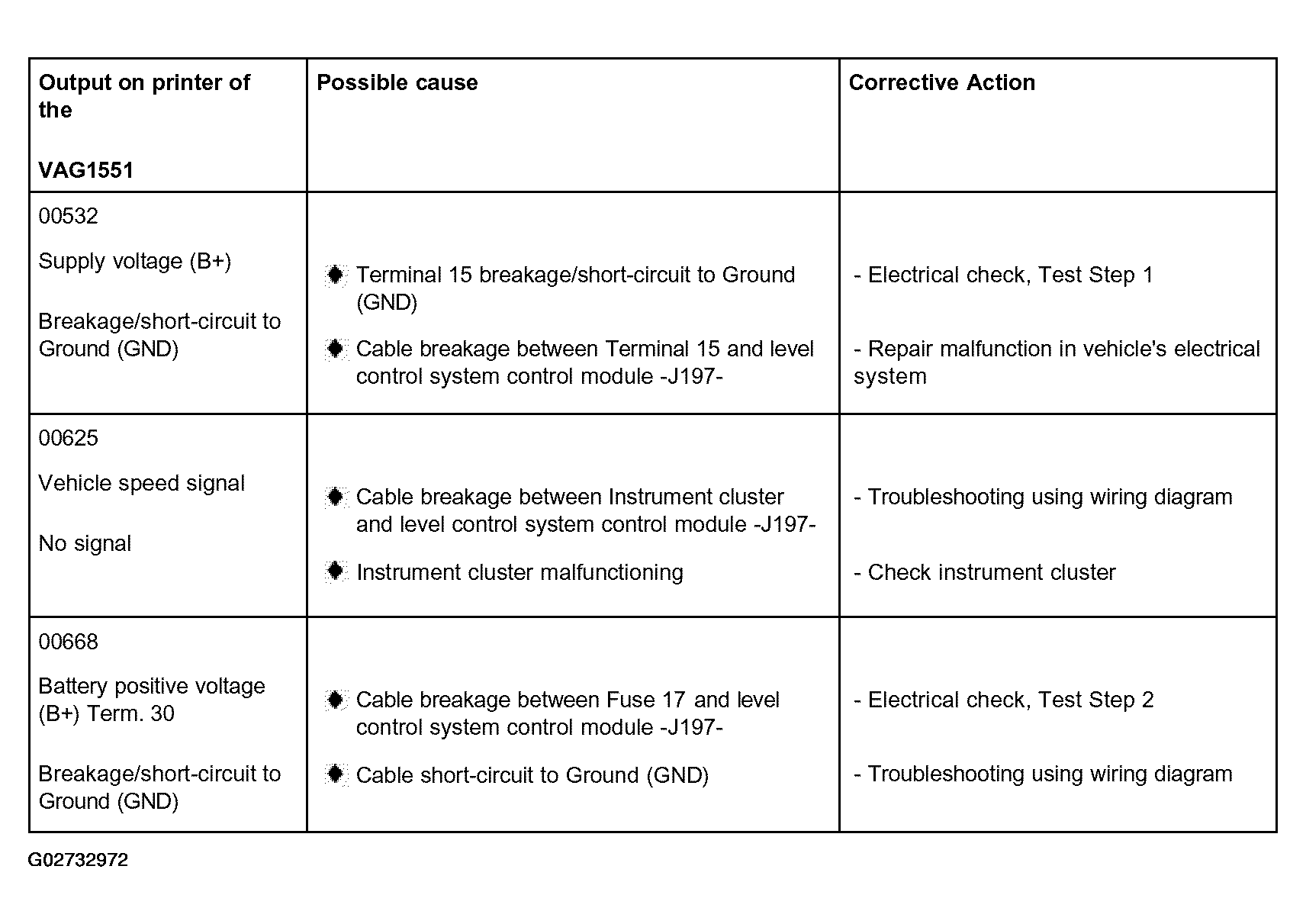

Fig 1: Self Leveling Suspension DTC Diagnostic Chart (00532, 00625 & 00668)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .
To check instrument cluster, see INSTRUMENTS - UP TO 2000 or INSTRUMENTS - 2001 AND UP .

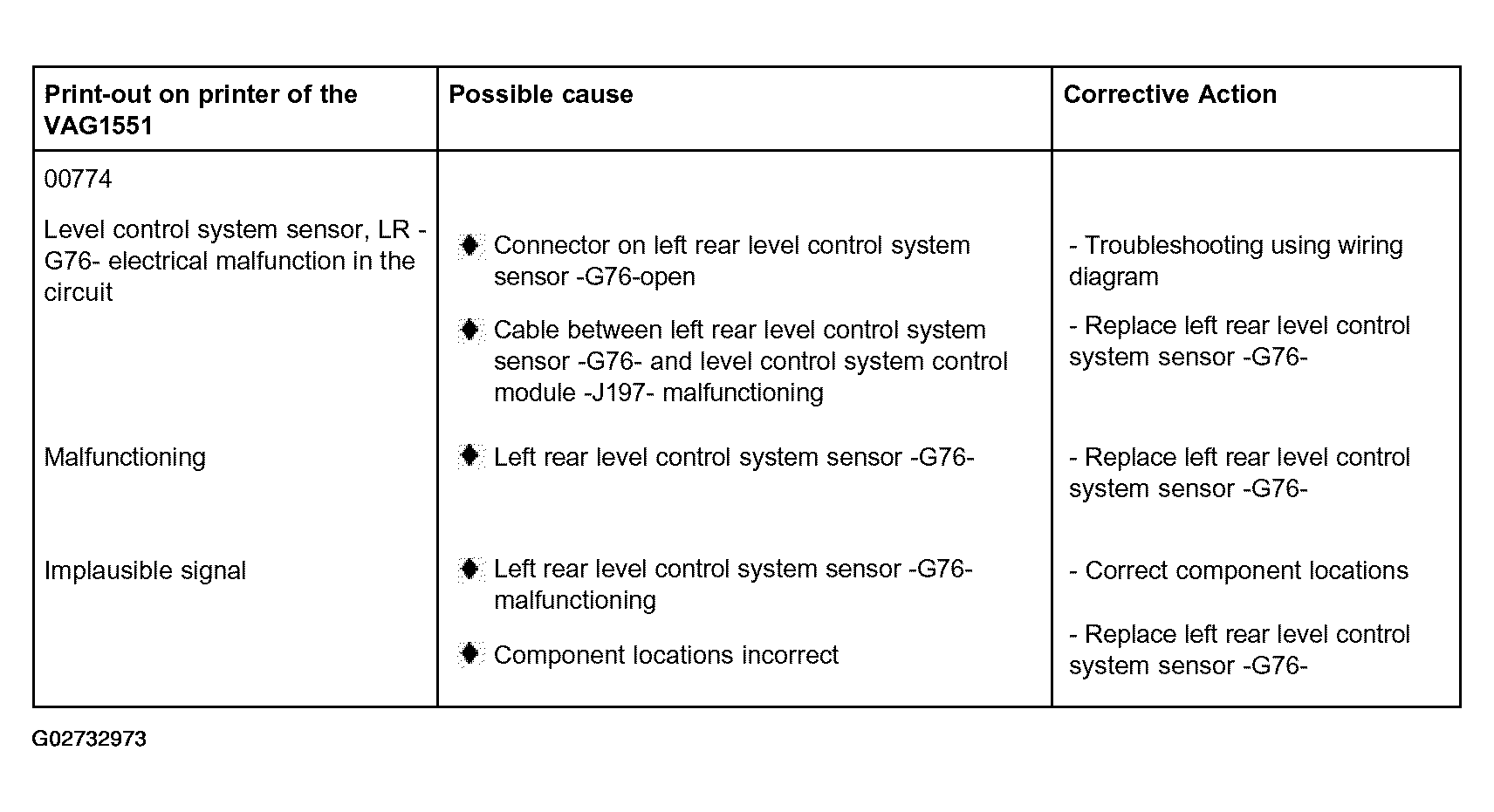

Fig 2: Self Leveling Suspension DTC Diagnostic Chart (00774)

Courtesy of AUDI OF AMERICA, INC.

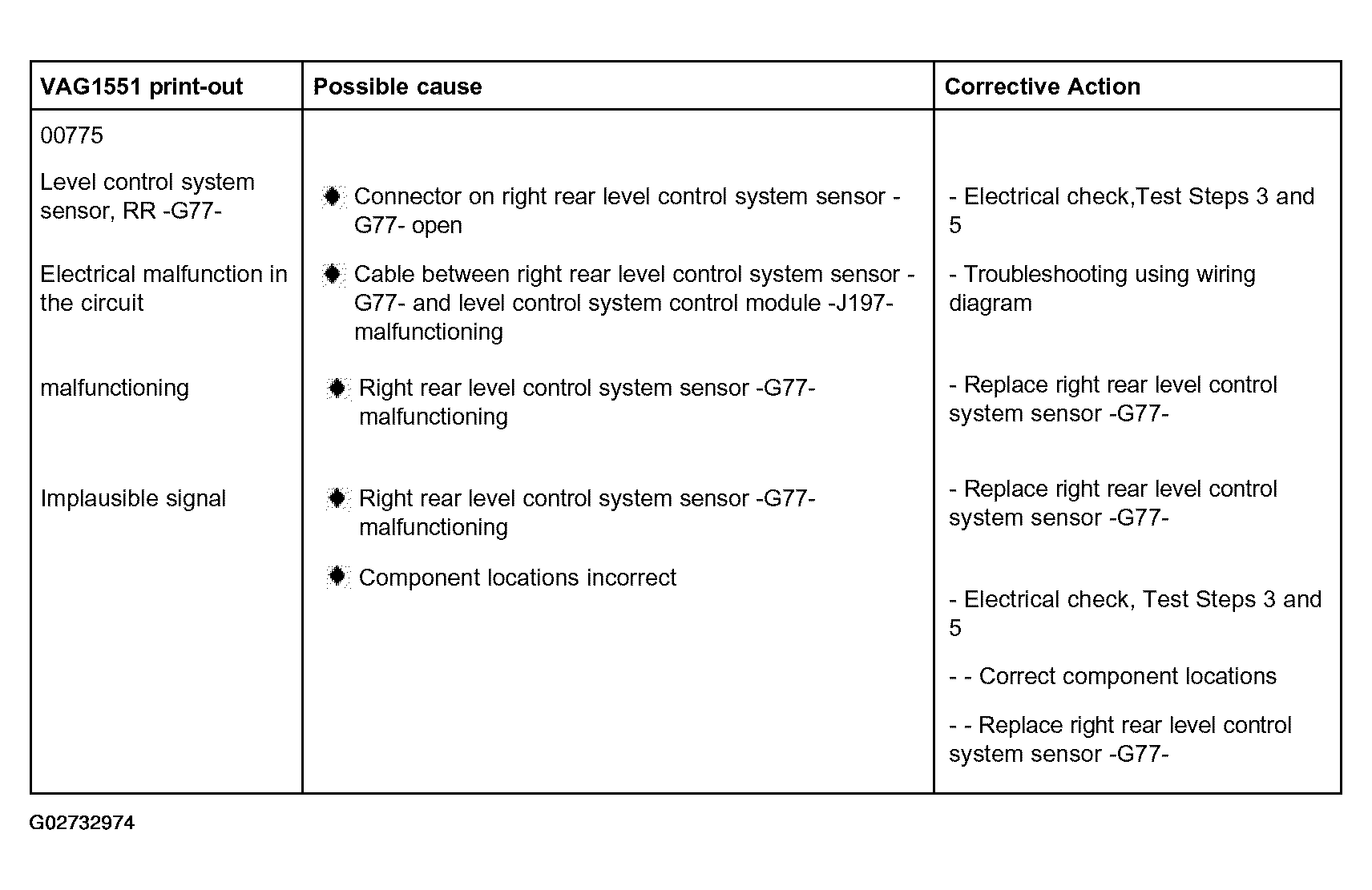

Fig 3: Self Leveling Suspension DTC Diagnostic Chart (00775)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

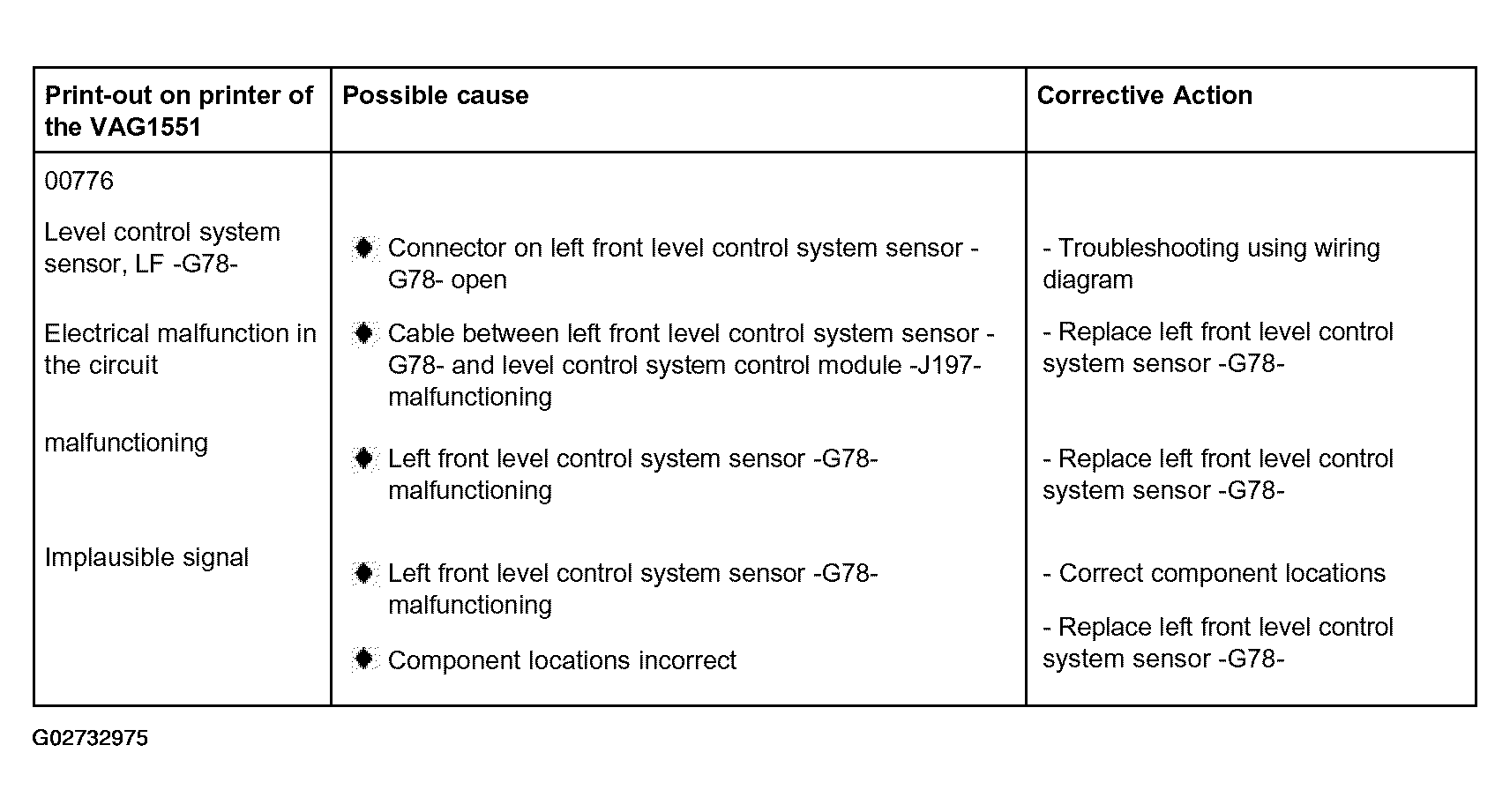

Fig 4: Self Leveling Suspension DTC Diagnostic Chart (00776)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

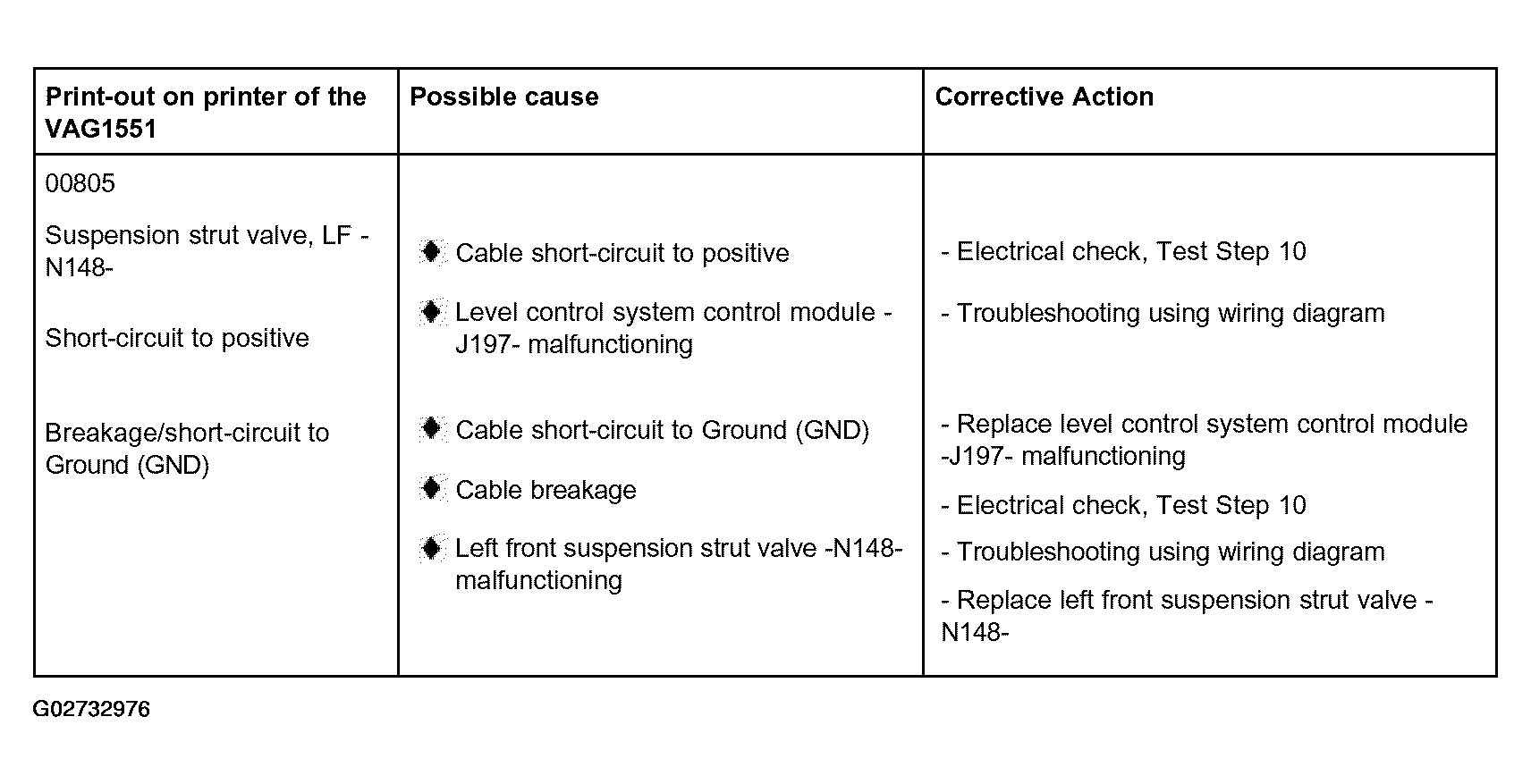

Fig 5: Self Leveling Suspension DTC Diagnostic Chart (00805)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

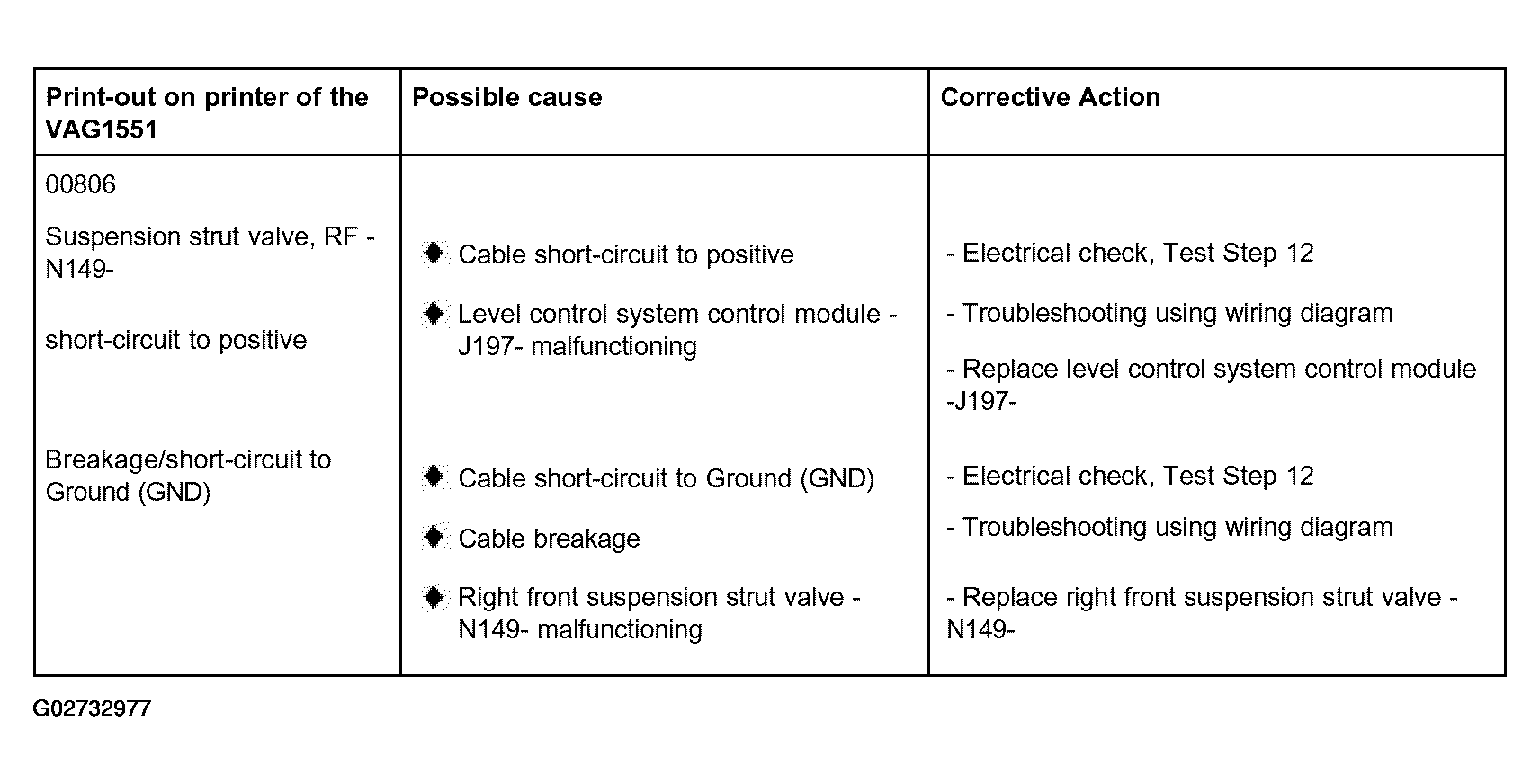

Fig 6: Self Leveling Suspension DTC Diagnostic Chart (00806)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

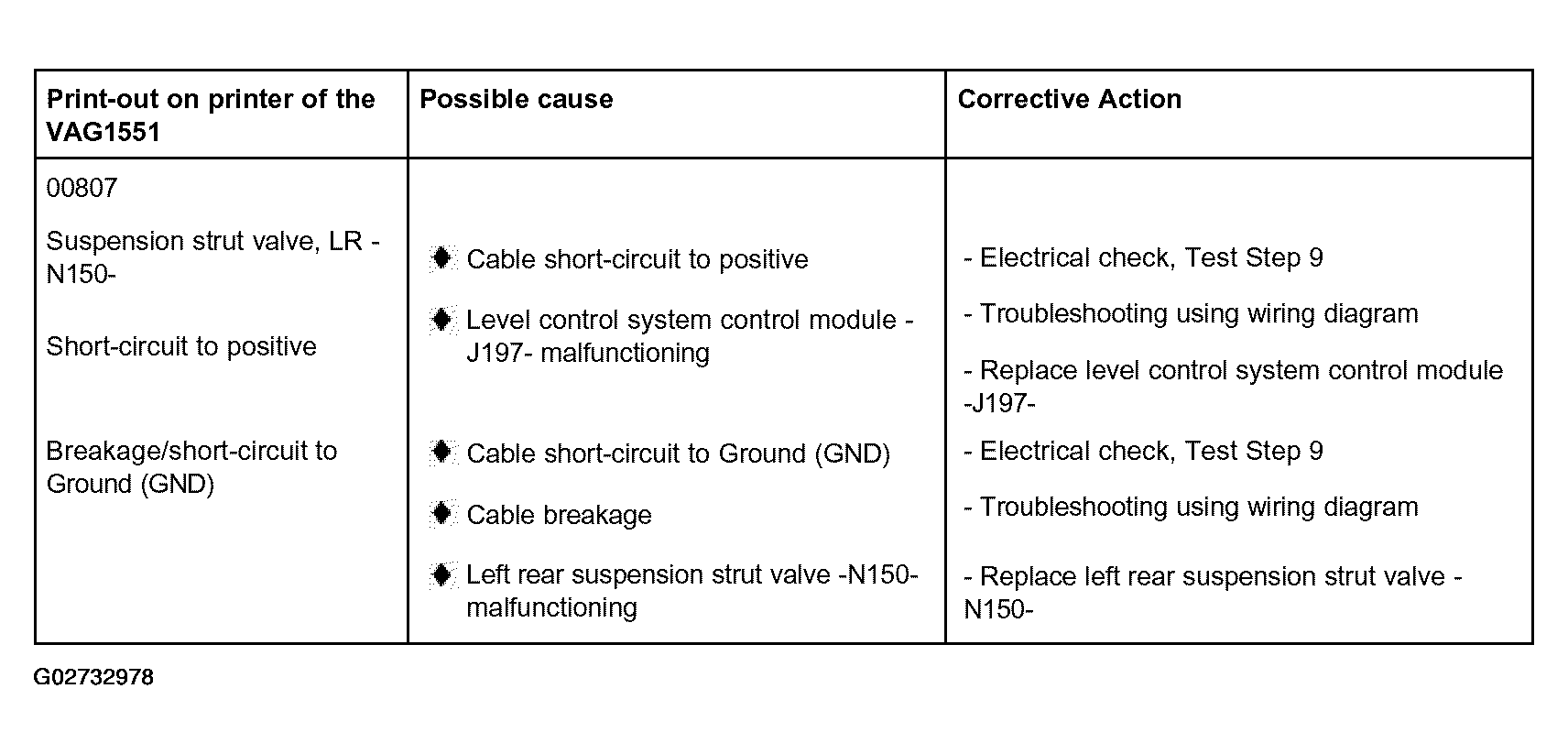

Fig 7: Self Leveling Suspension DTC Diagnostic Chart (00807)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

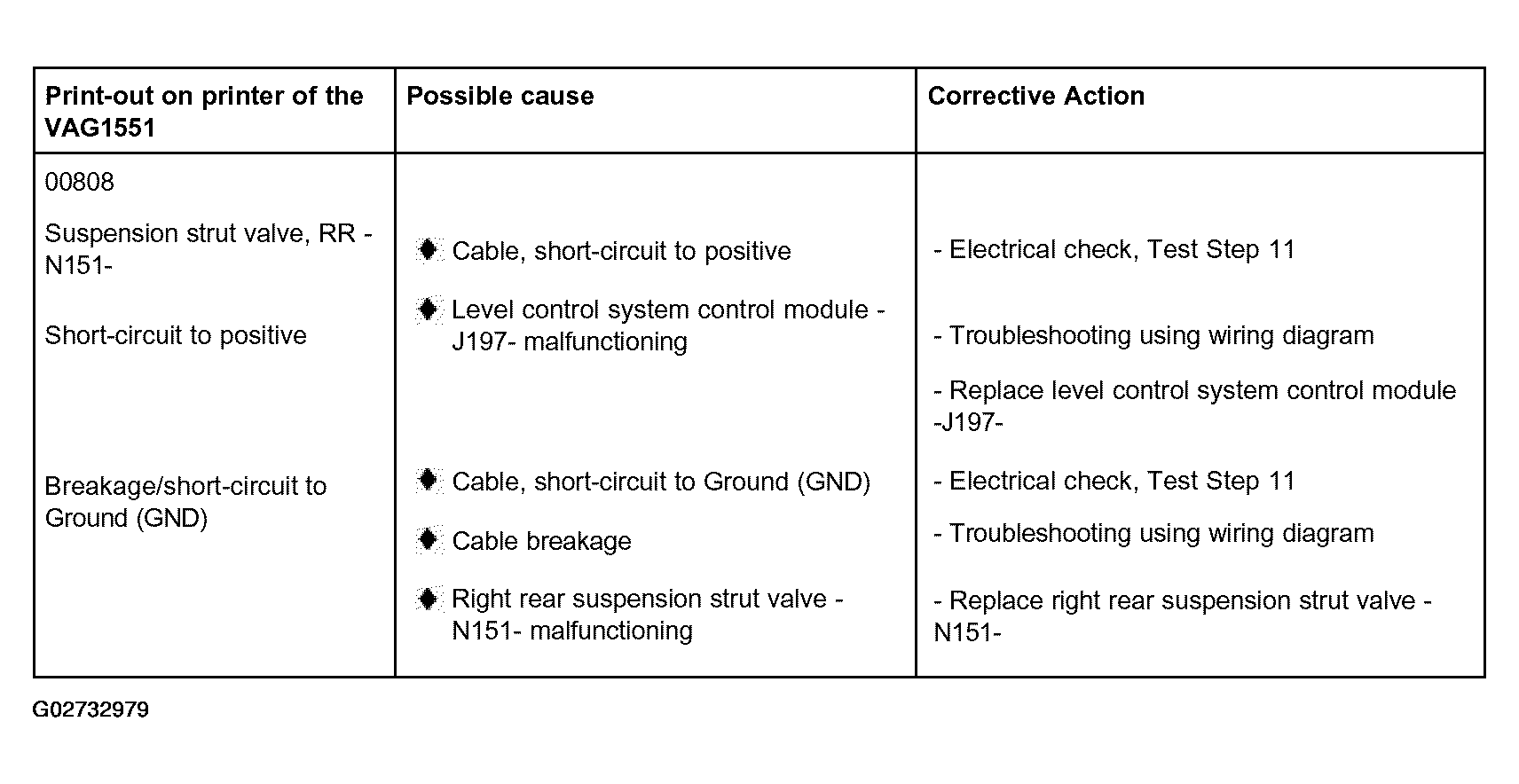

Fig 8: Self Leveling Suspension DTC Diagnostic Chart (00808)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

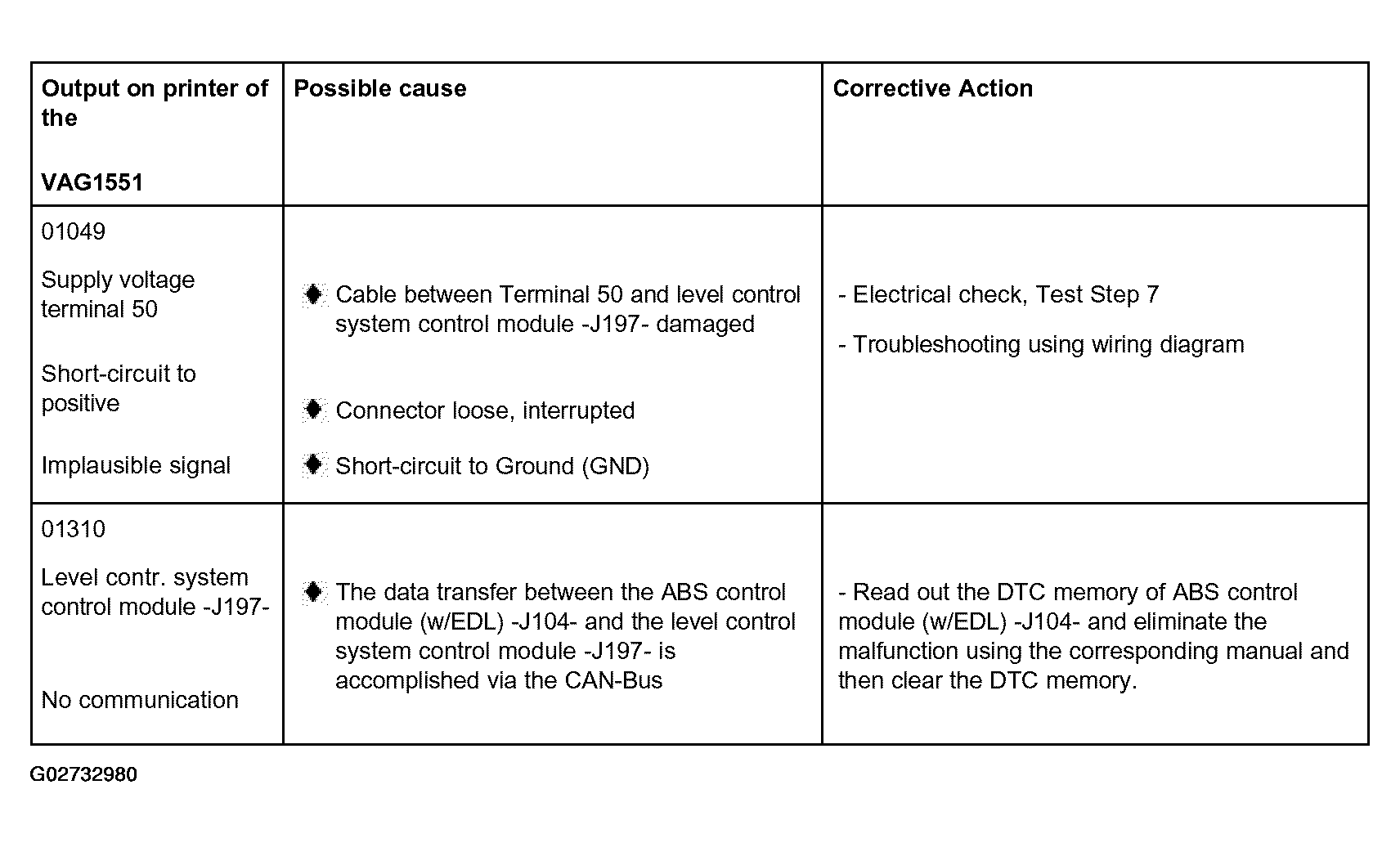

Fig 9: Self Leveling Suspension DTC Diagnostic Chart (01049 & 01310)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

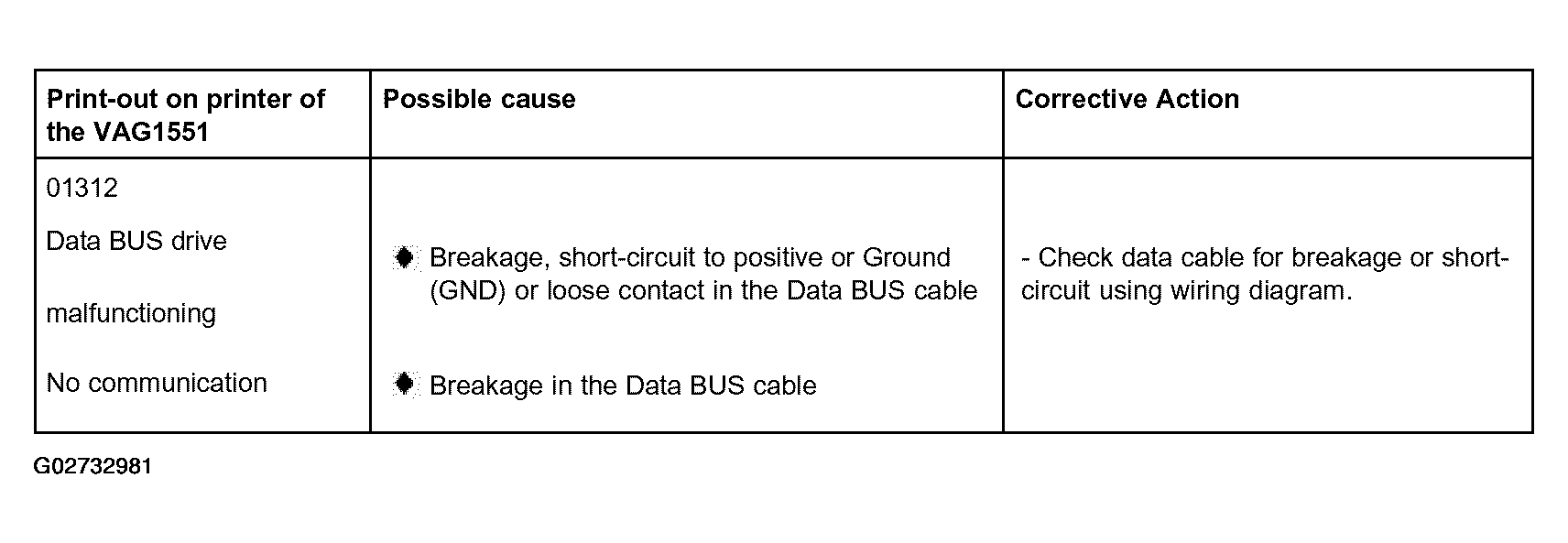

Fig 10: Self Leveling Suspension DTC Diagnostic Chart (01312)

Courtesy of AUDI OF AMERICA, INC.

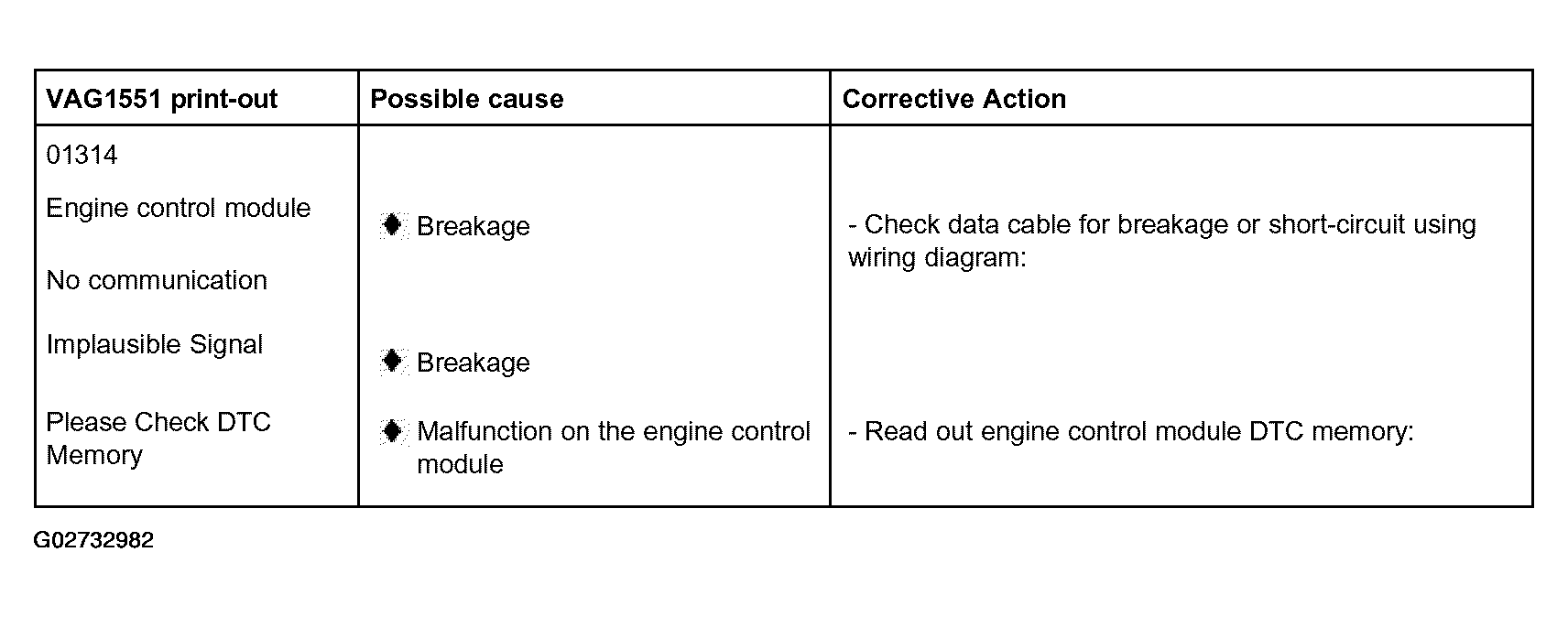

Fig 11: Self Leveling Suspension DTC Diagnostic Chart (01314)

Courtesy of AUDI OF AMERICA, INC.

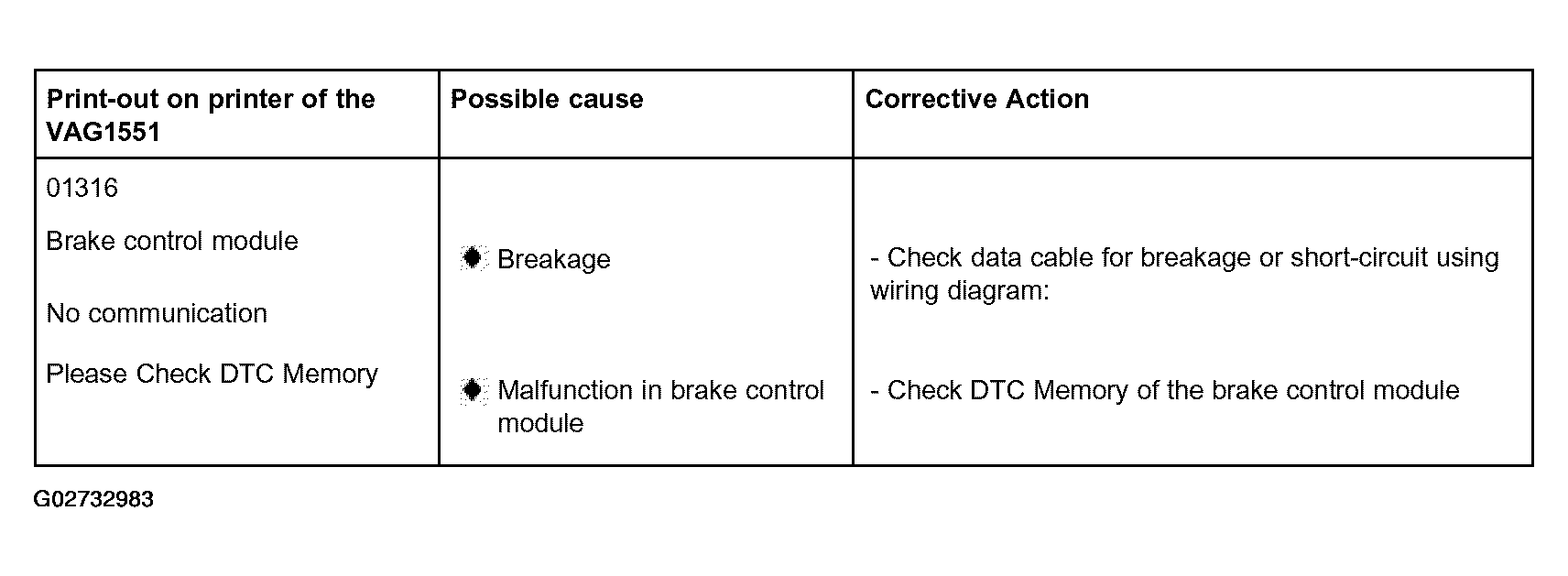

Fig 12: Self Leveling Suspension DTC Diagnostic Chart (01316)

Courtesy of AUDI OF AMERICA, INC.

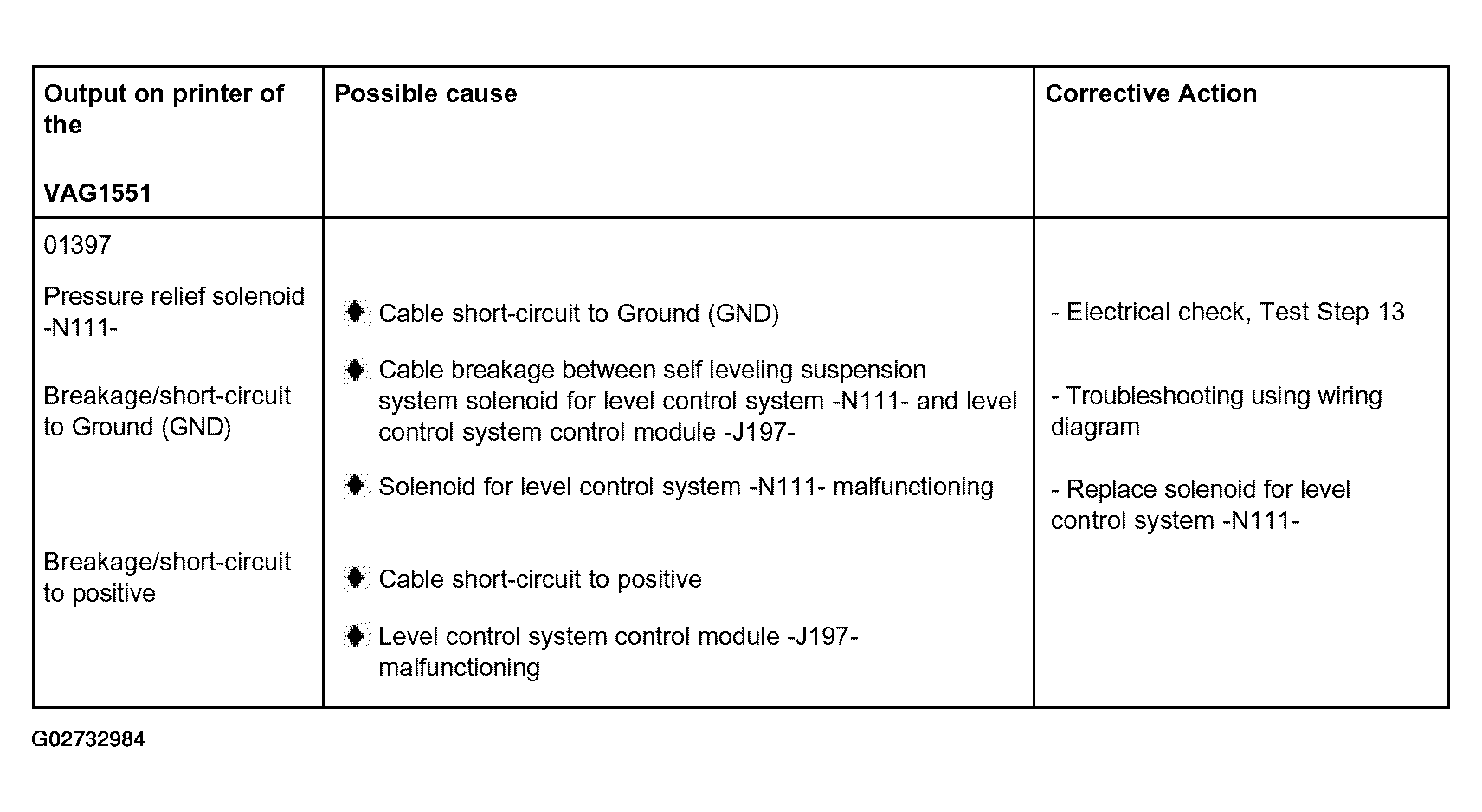

Fig 13: Self Leveling Suspension DTC Diagnostic Chart (01397)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

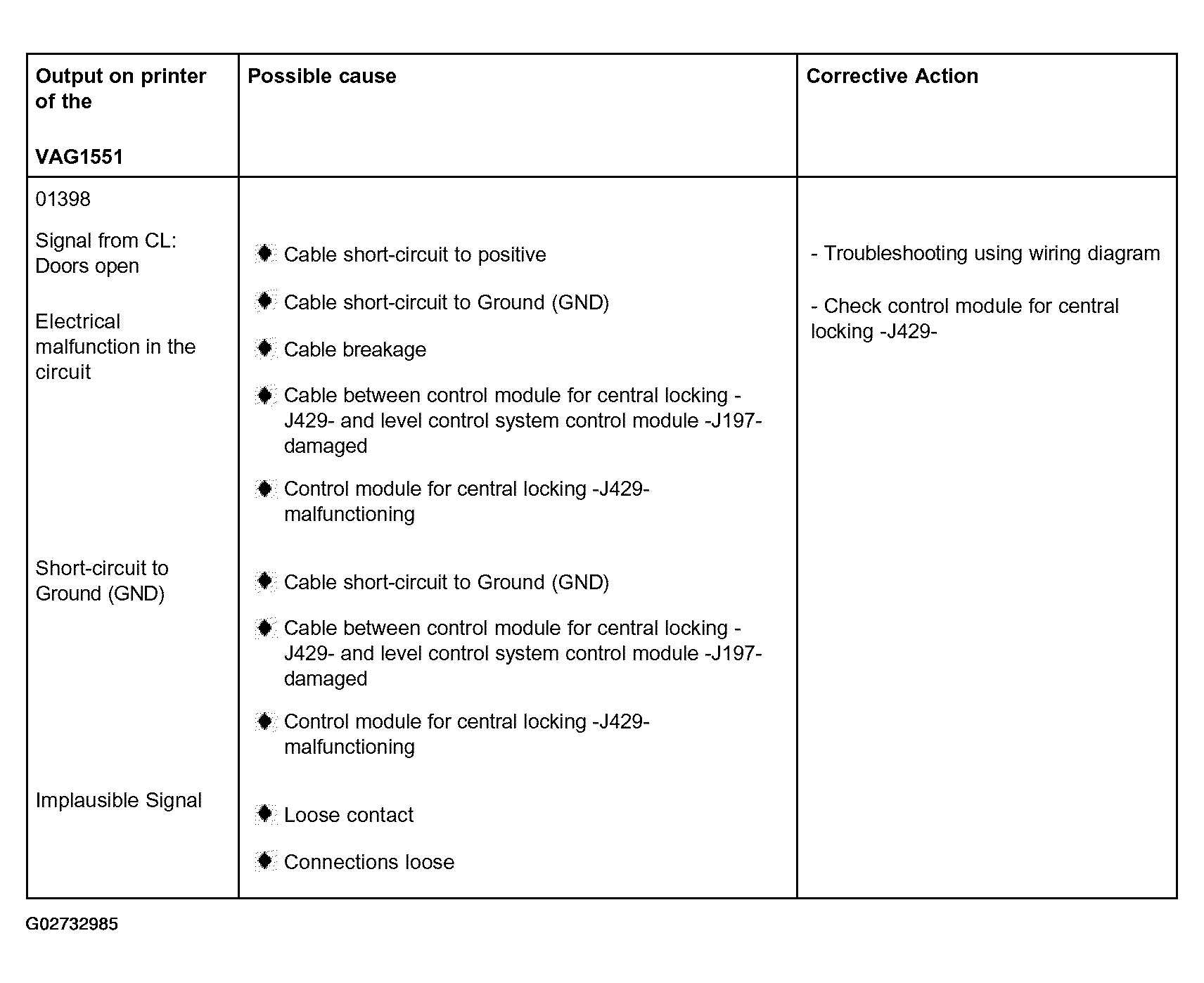

Fig 14: Self Leveling Suspension DTC Diagnostic Chart (01398)

Courtesy of AUDI OF AMERICA, INC.

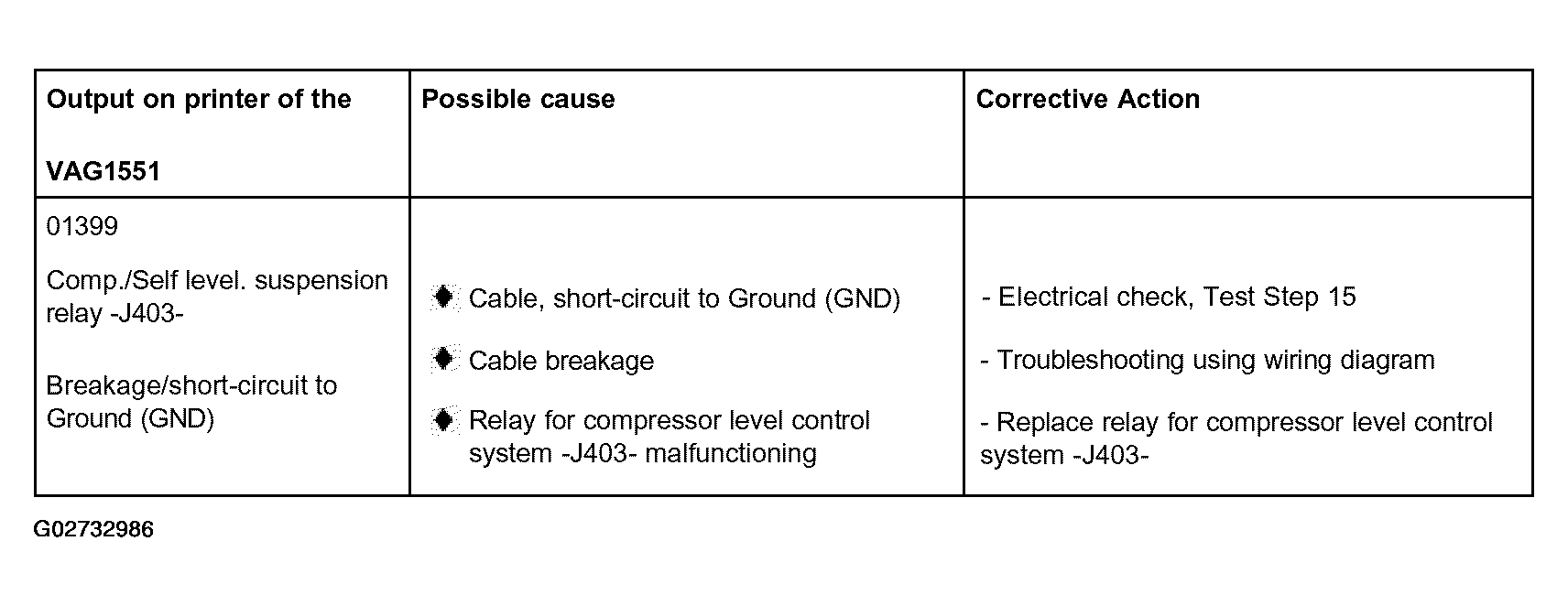

Fig 15: Self Leveling Suspension DTC Diagnostic Chart (01399)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

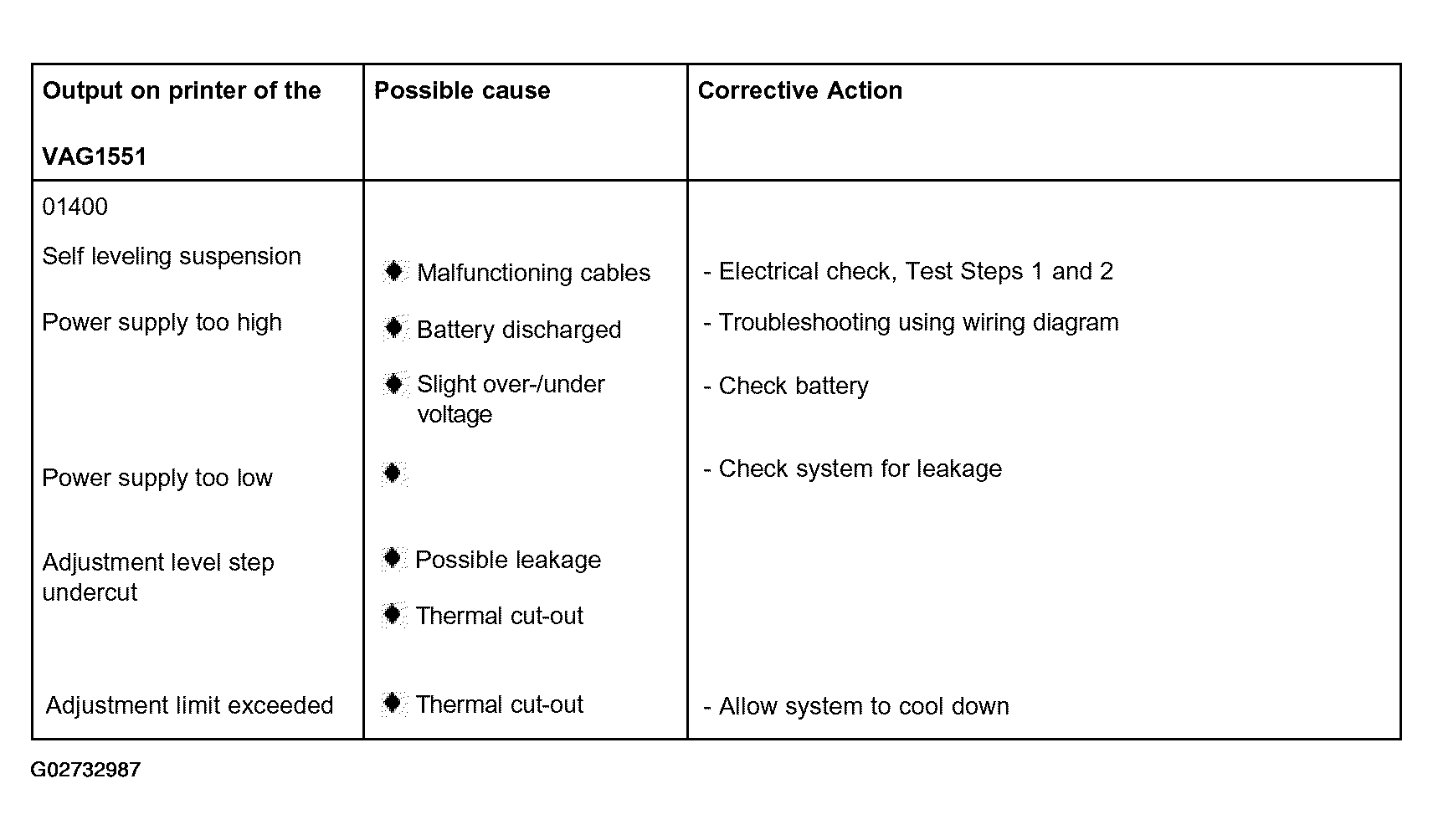

Fig 16: Self Leveling Suspension DTC Diagnostic Chart (01400)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

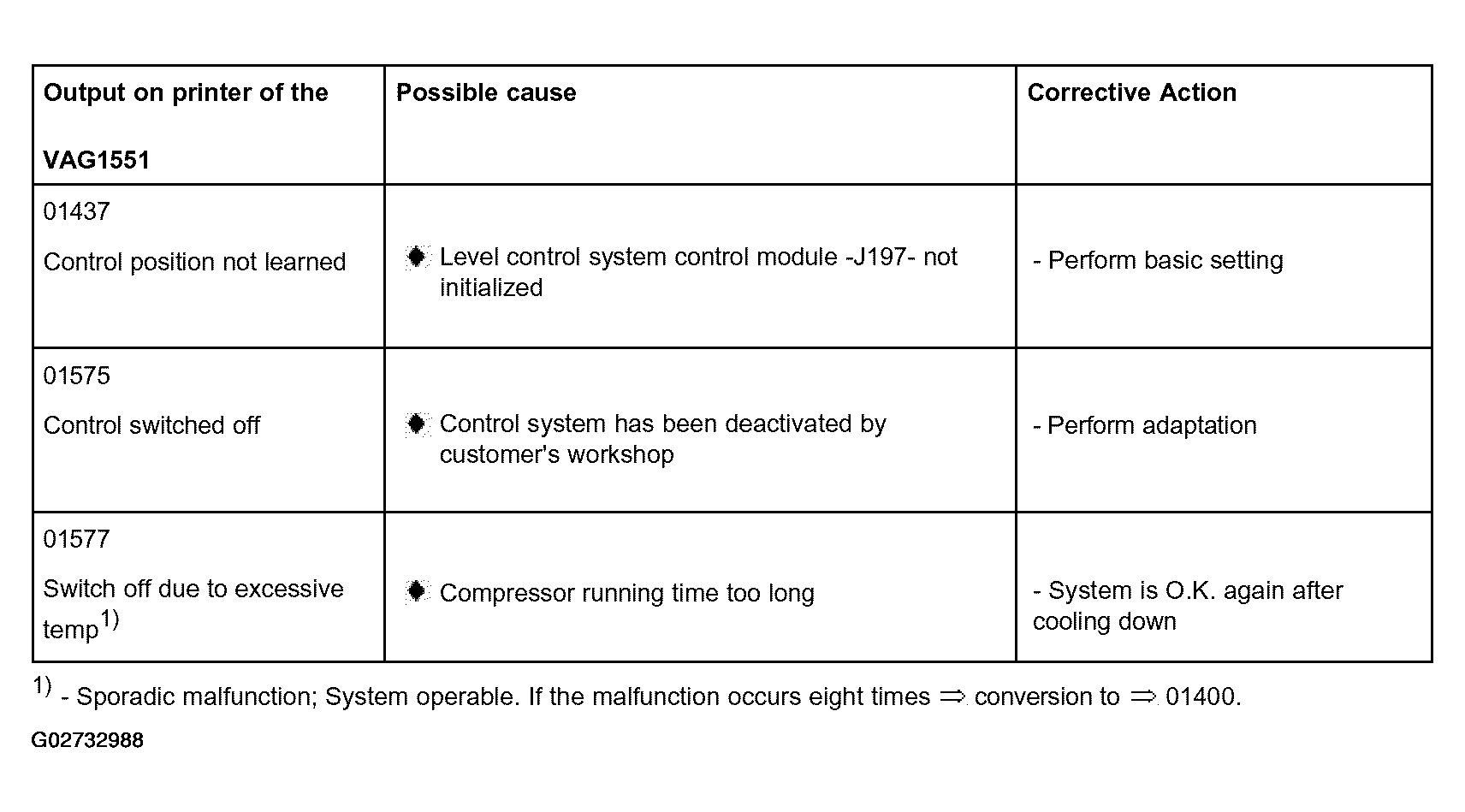

Fig 17: Self Leveling Suspension DTC Diagnostic Chart (01437, 01575 & 01577)

Courtesy of AUDI OF AMERICA, INC.

For basic setting, see BASIC SETTING (FUNCTION 04) .
For adaptation, see ADAPTATION (FUNCTION 10), ACTIVATING AND DEACTIVATING SELF LEVELING SUSPENSION SYSTEM .

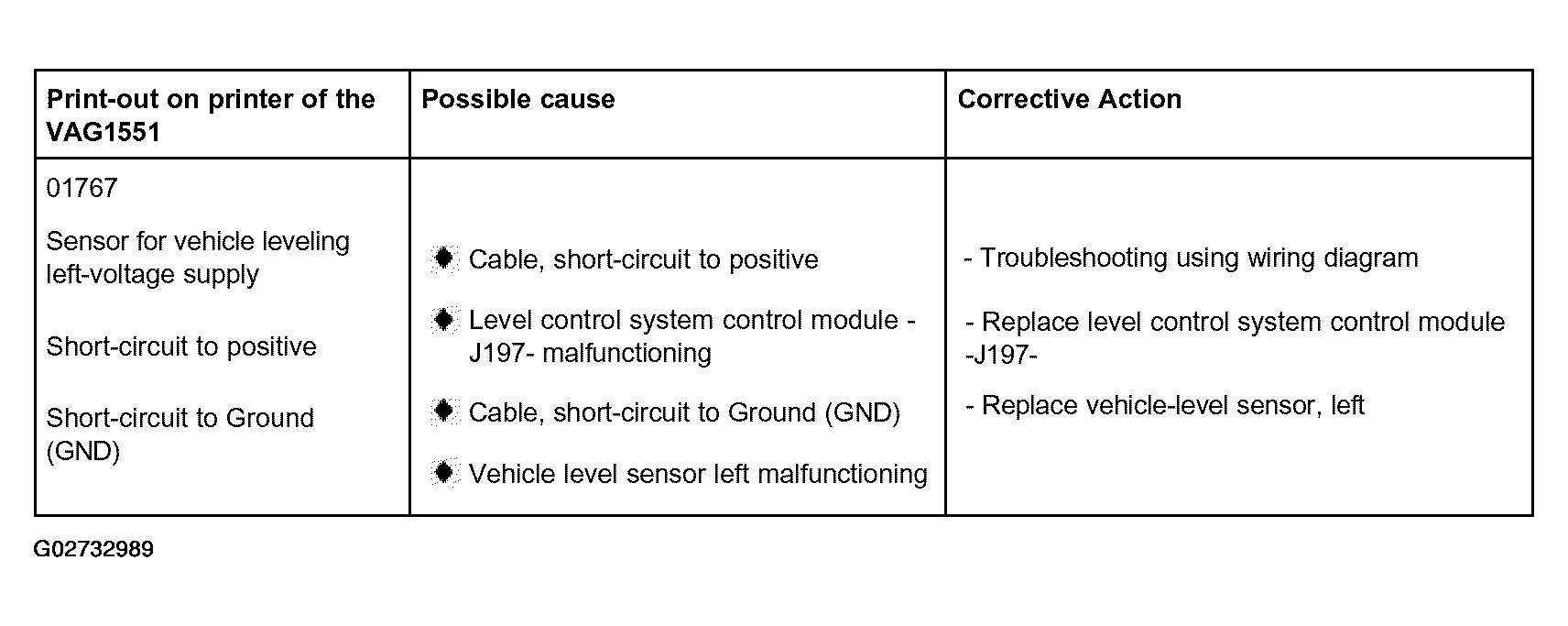

Fig 18: Self Leveling Suspension DTC Diagnostic Chart (01767)

Courtesy of AUDI OF AMERICA, INC.

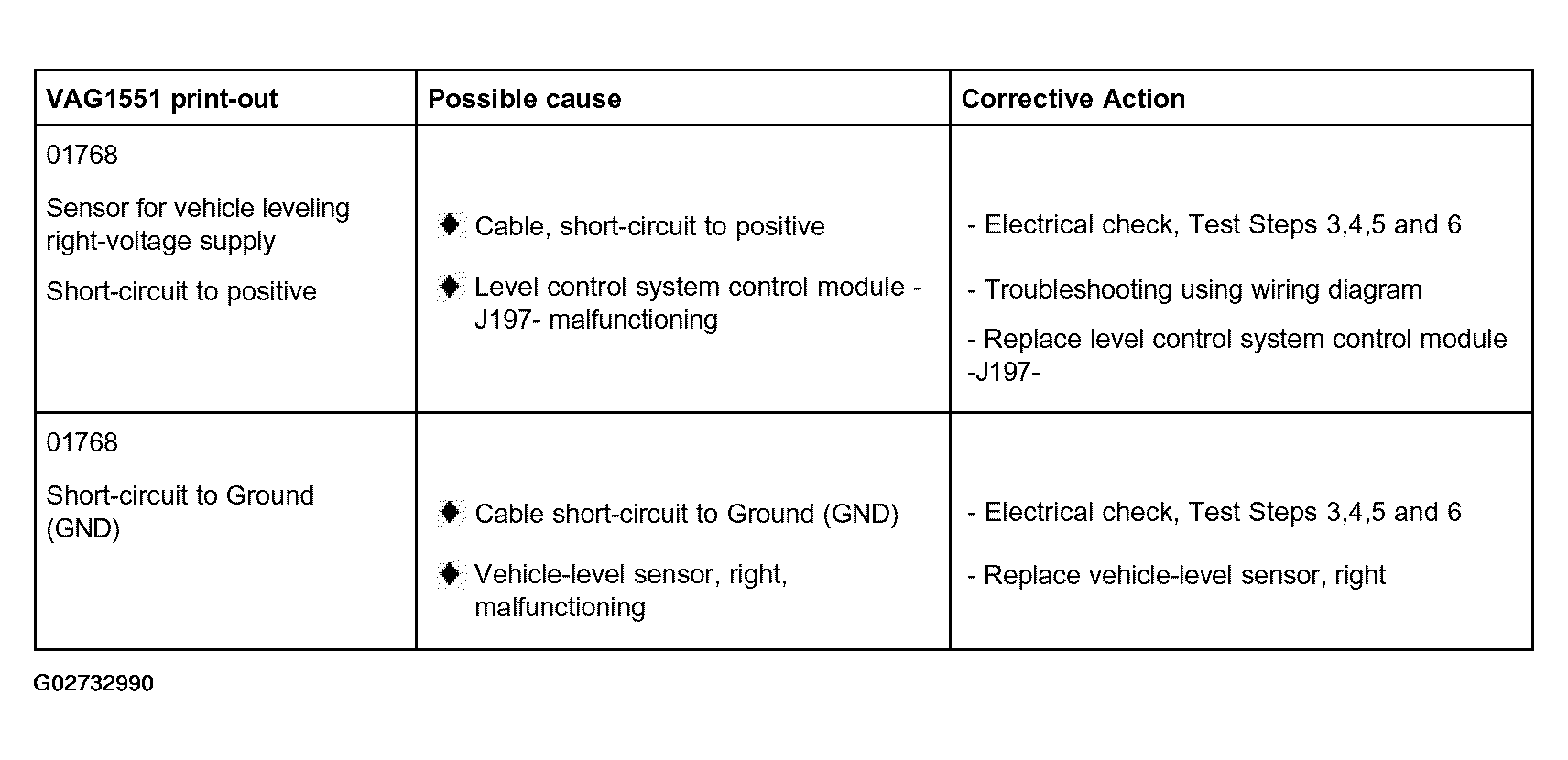

Fig 19: Self Leveling Suspension DTC Diagnostic Chart (01768)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

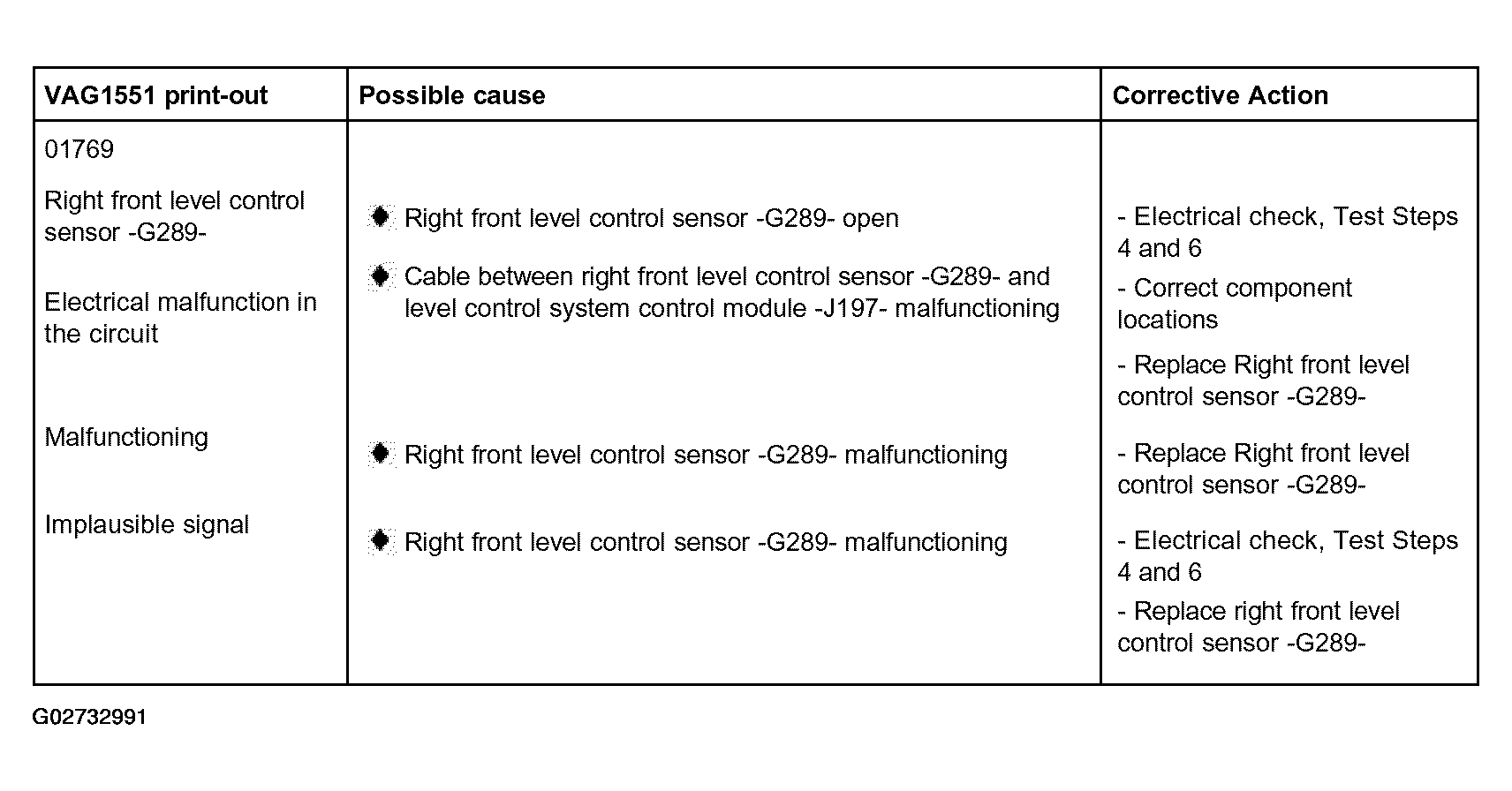

Fig 20: Self Leveling Suspension DTC Diagnostic Chart (01769)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

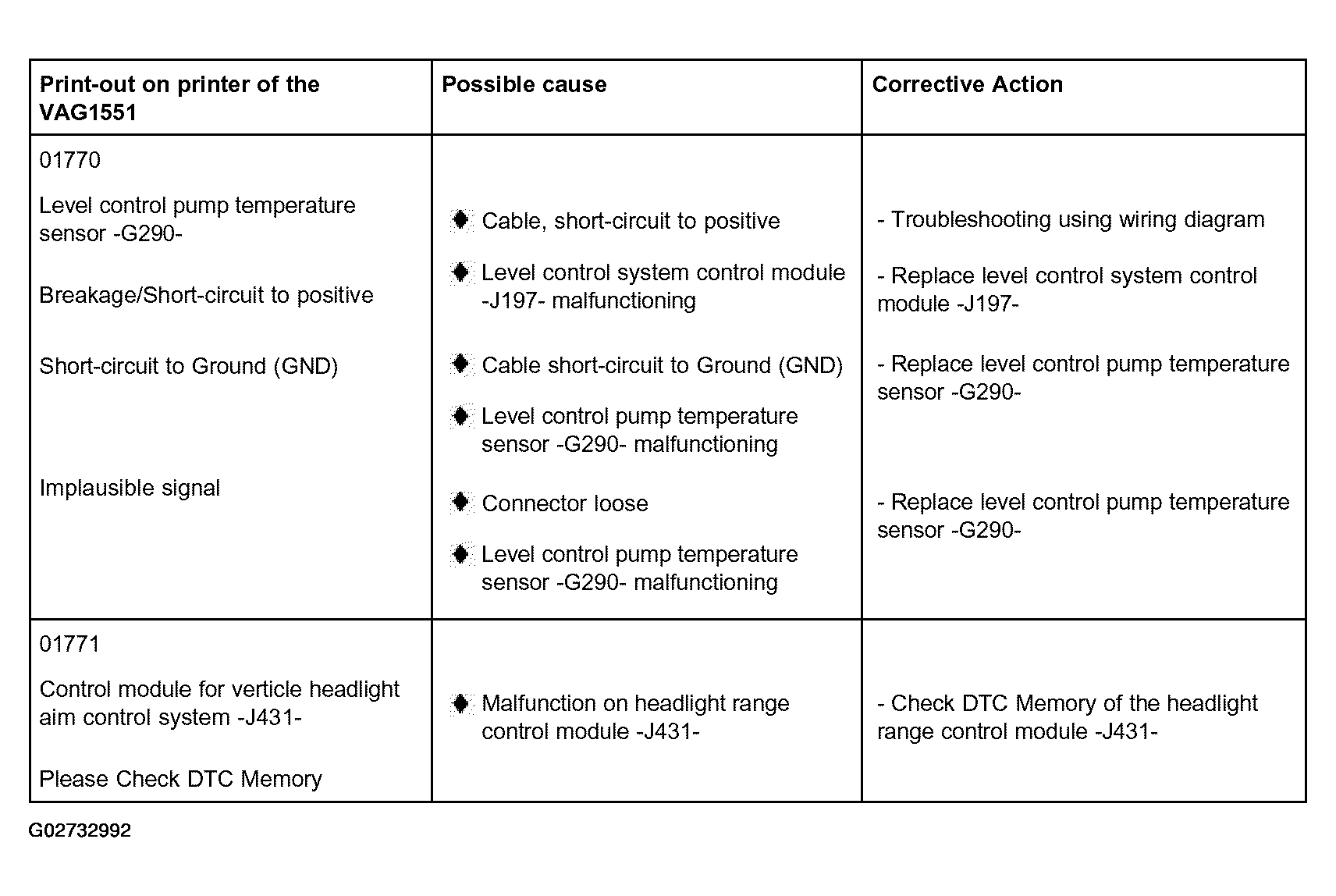

Fig 21: Self Leveling Suspension DTC Diagnostic Chart (01770 & 01771)

Courtesy of AUDI OF AMERICA, INC.

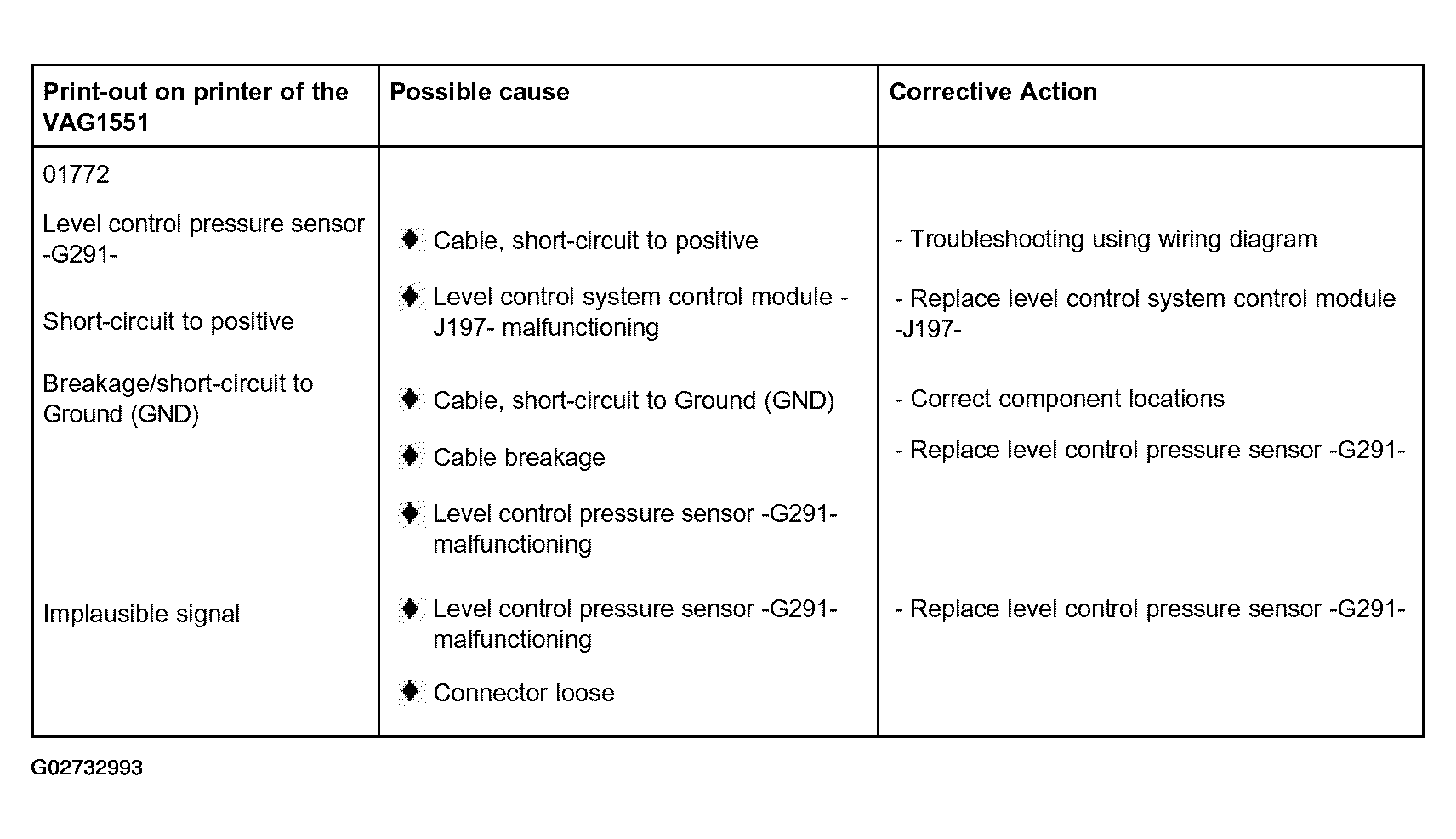

Fig 22: Self Leveling Suspension DTC Diagnostic Chart (01772)

Courtesy of AUDI OF AMERICA, INC.

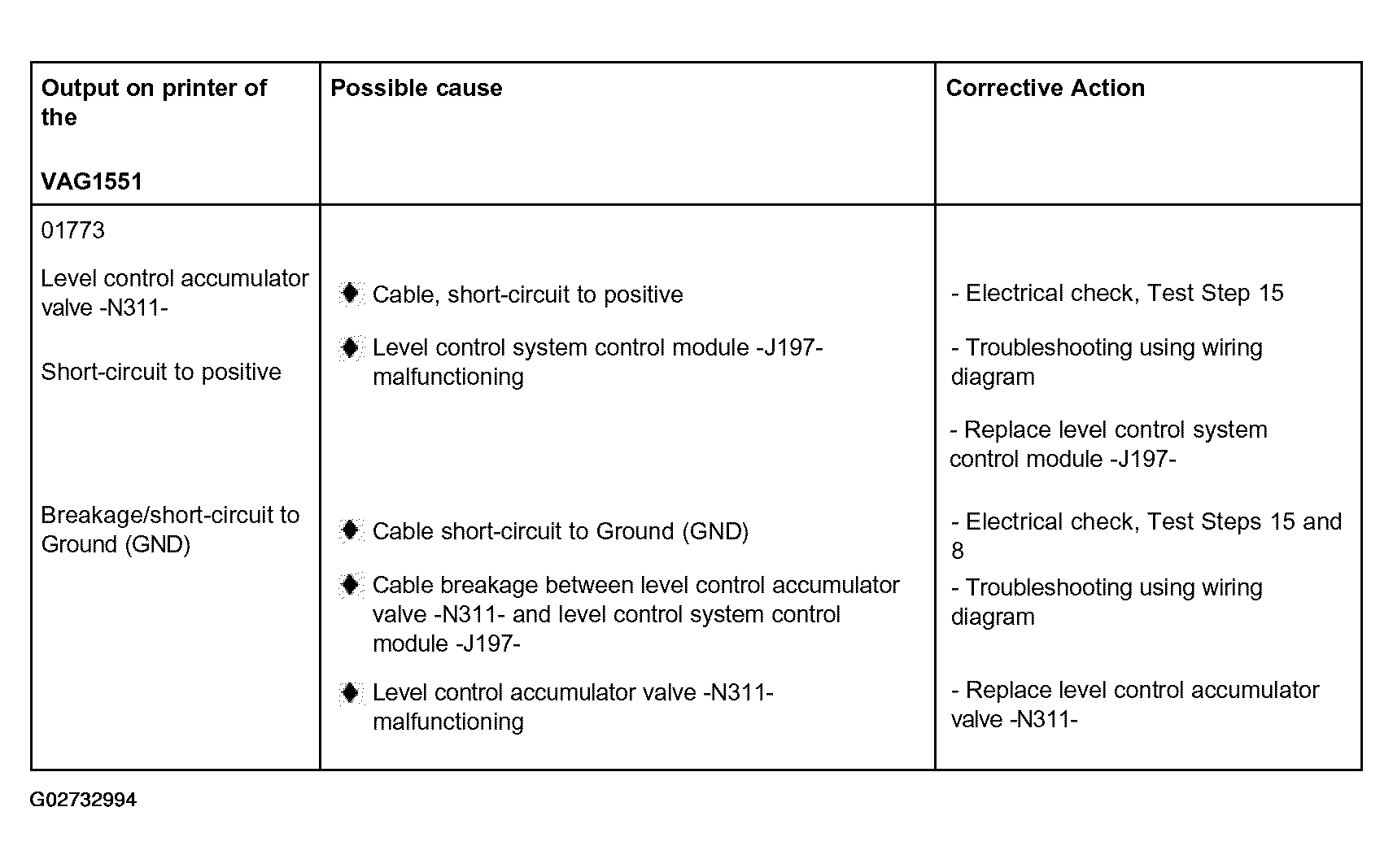

Fig 23: Self Leveling Suspension DTC Diagnostic Chart (01773)

Courtesy of AUDI OF AMERICA, INC.

For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

Fig 24: Self Leveling Suspension DTC Diagnostic Chart (01774)

Courtesy of AUDI OF AMERICA, INC.

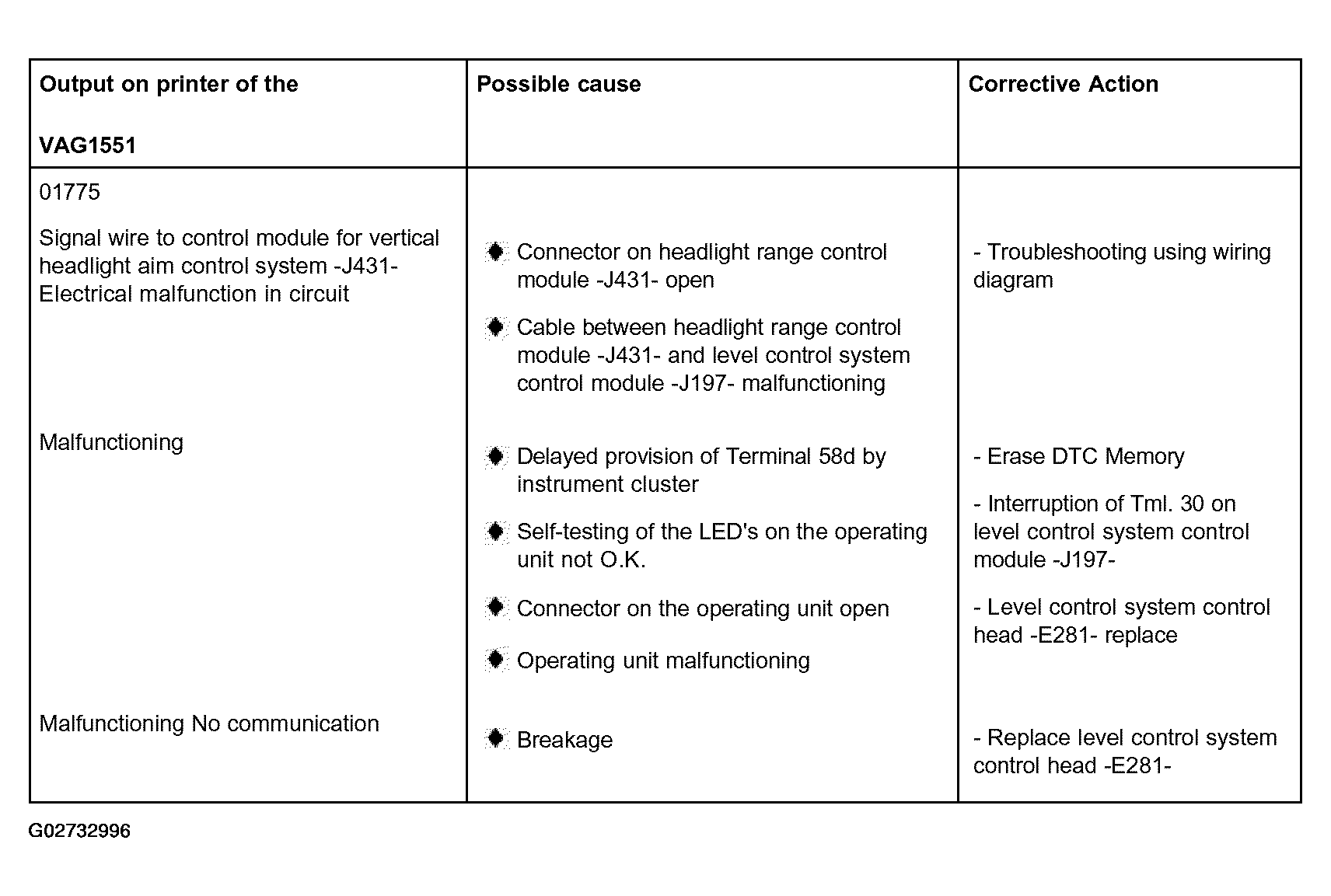

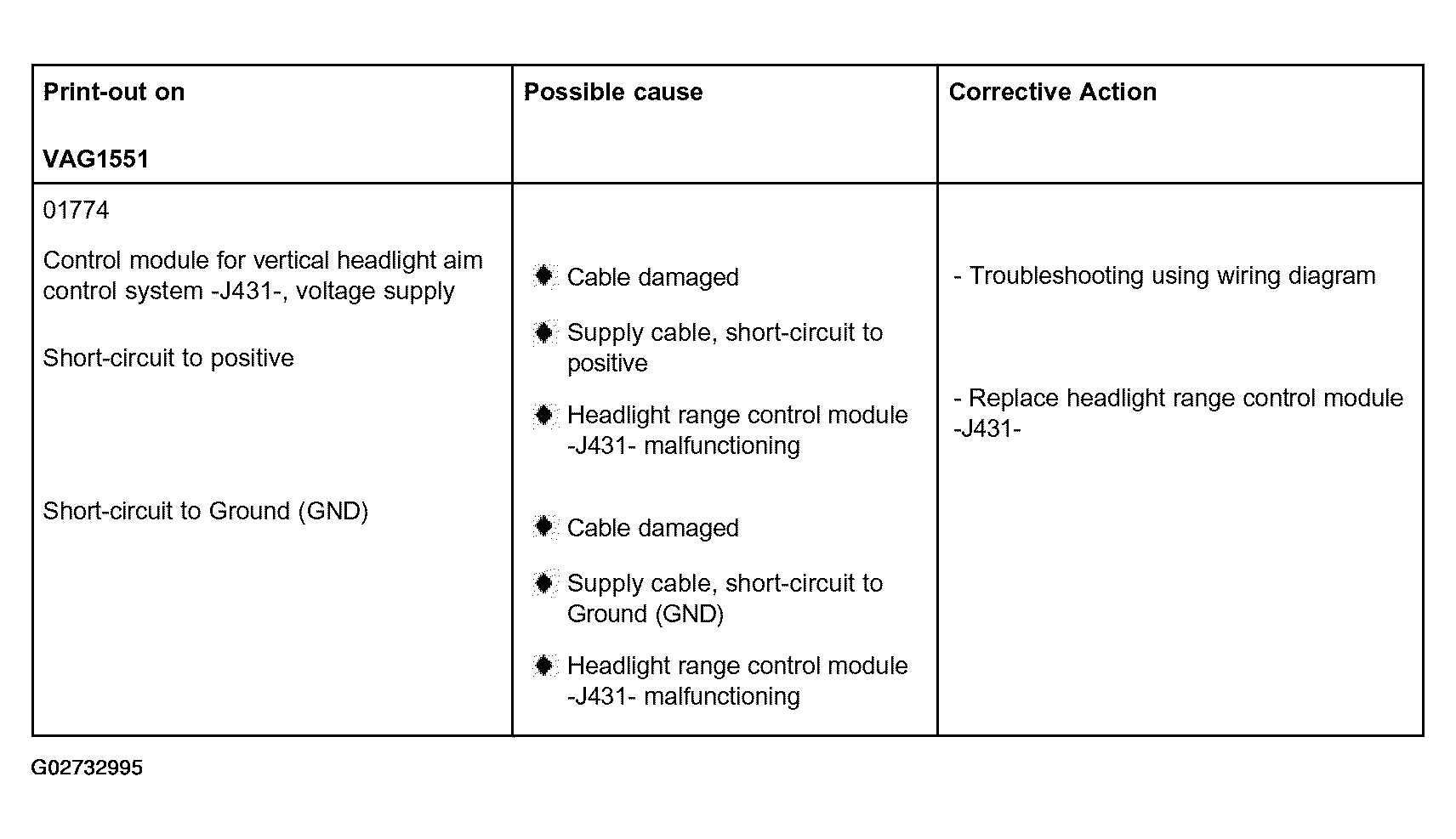

Fig 25: Self Leveling Suspension DTC Diagnostic Chart (01775)

Courtesy of AUDI OF AMERICA, INC.

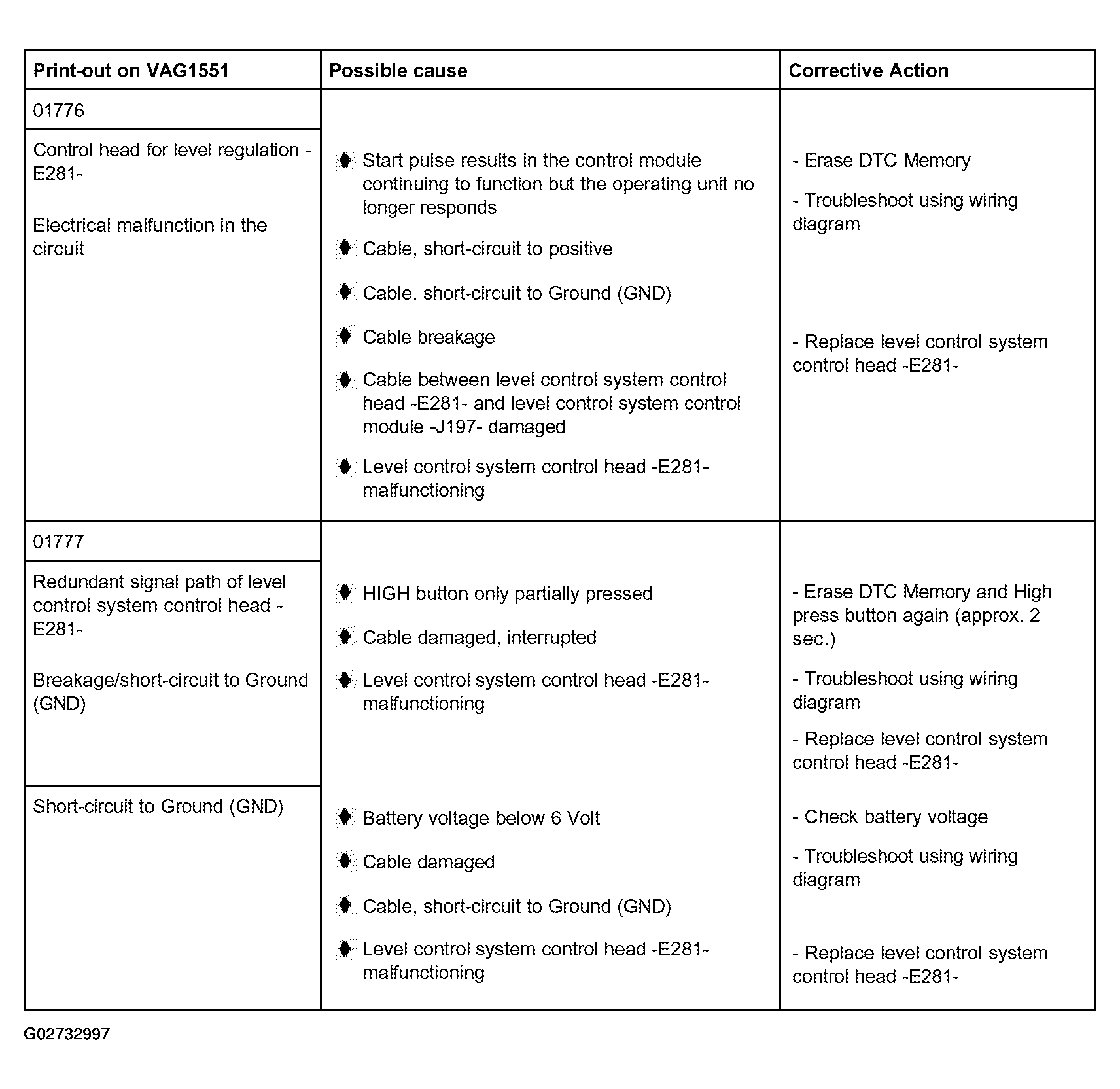

Fig 26: Self Leveling Suspension DTC Diagnostic Chart (01776 & 01777)

Courtesy of AUDI OF AMERICA, INC.

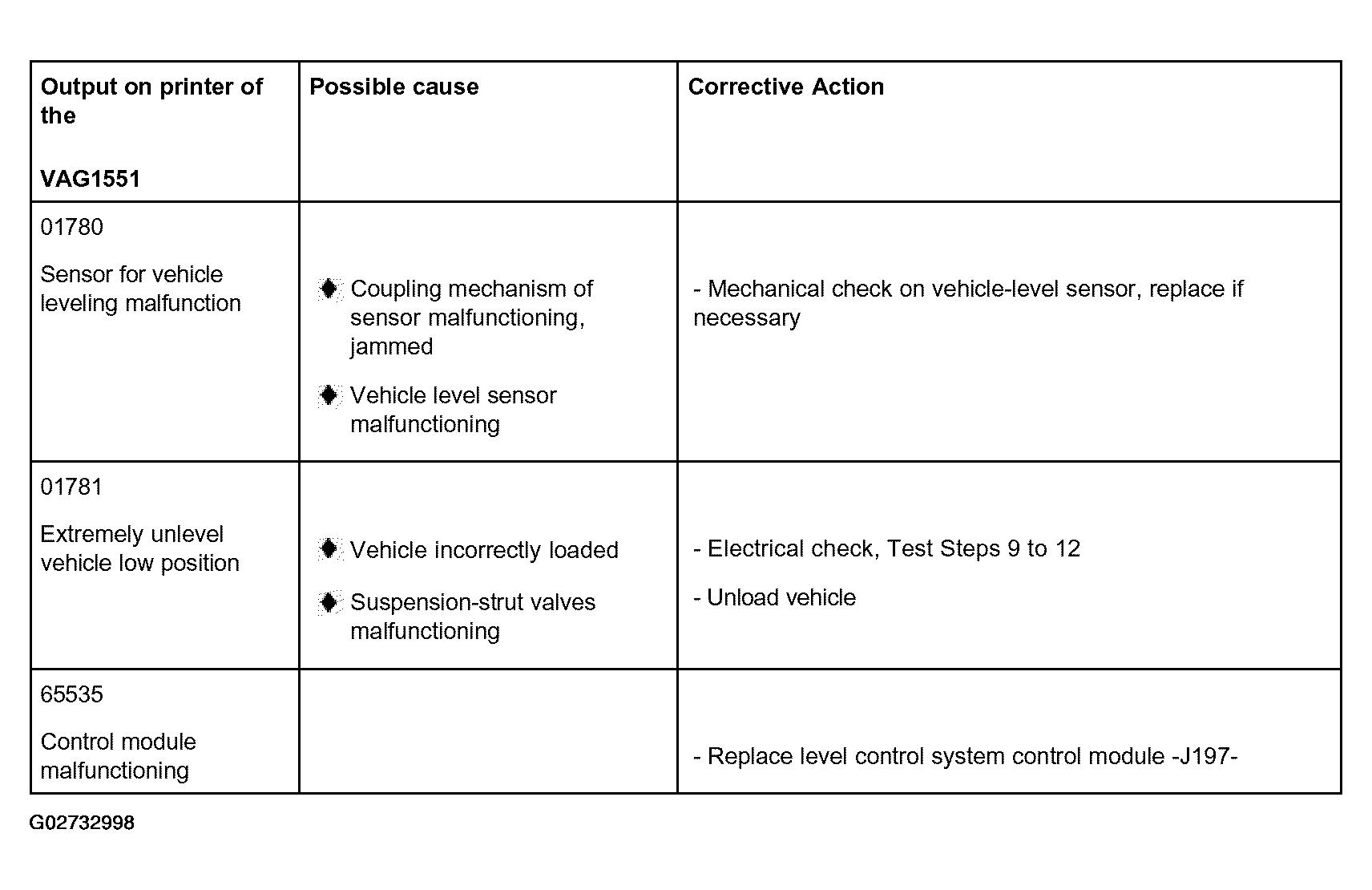

Fig 27: Self Leveling Suspension DTC Diagnostic Chart (01780, 01781 & 65535)

Courtesy of AUDI OF AMERICA, INC.

To check vehicle level sensor, see SELF LEVELING SUSPENSION .
For electrical check, see FOUR-WHEEL PNEUMATIC SYSTEM, ELECTRICAL CHECK .

NOTE: Malfunction "65535 - Control module malfunctioning" cannot be cleared using the VAG 1551 scan tol!!
