Perform Function "02 - Check DTC Memory"

Display

Fig 1: VAG 1551 Scan Tool - Select Function
G02732967Courtesy of AUDI OF AMERICA, INC.

Display

Fig 2: VAG 1551 Scan Tool - 02 Check DTC Memory
G02732968Courtesy of AUDI OF AMERICA, INC.

The number of codes stored is shown on the display.

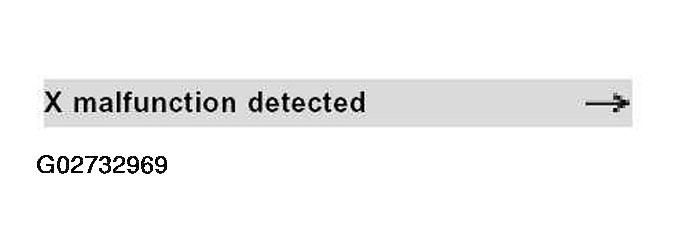

Fig 3: VAG 1551 Scan Tool - X Malfunction Detected
G02732969Courtesy of AUDI OF AMERICA, INC.

If "No malfunction detected" appears, the program returns to the starting position after actuation of the --> button.

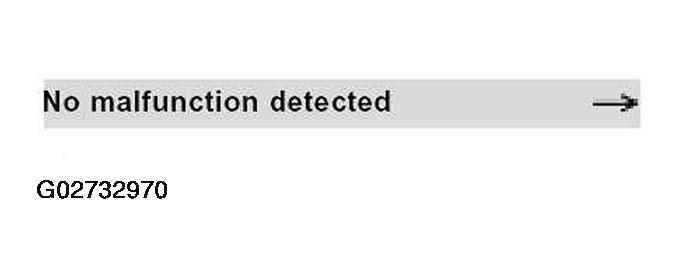

Fig 4: VAG 1551 Scan Tool - No Malfunction Detected
G02732970Courtesy of AUDI OF AMERICA, INC.

Display:

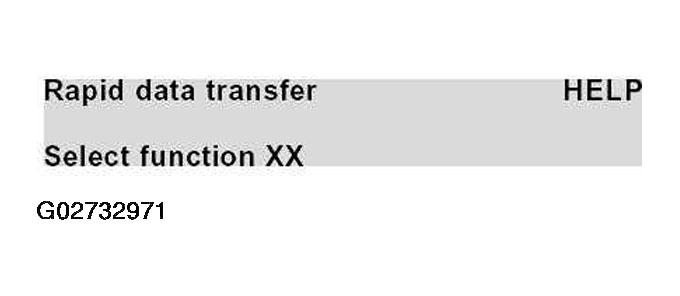

Fig 5: VAG 1551 Scan Tool - Select Function XX
G02732971Courtesy of AUDI OF AMERICA, INC.

If anything else is shown on the display:

See operating manual for the scan tool.
