Transportation wiper blades, removing

Transportation blades can easily be removed as follows:

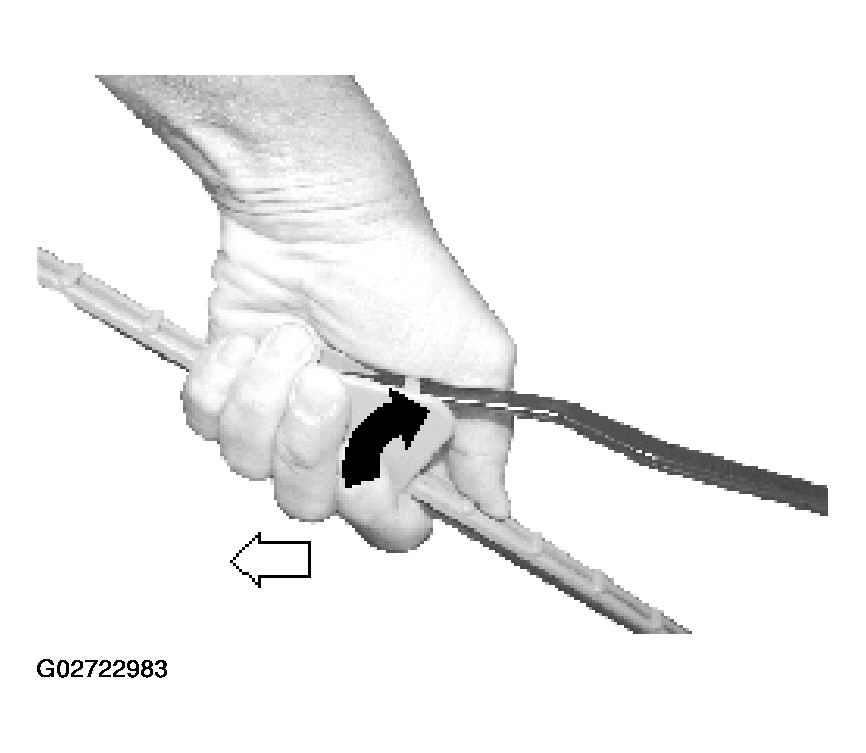

Grasp blade as shown and rotate in direction of arrow (toward windshield).

Fig 1: Grasping Blade

Courtesy of AUDI OF AMERICA, INC.

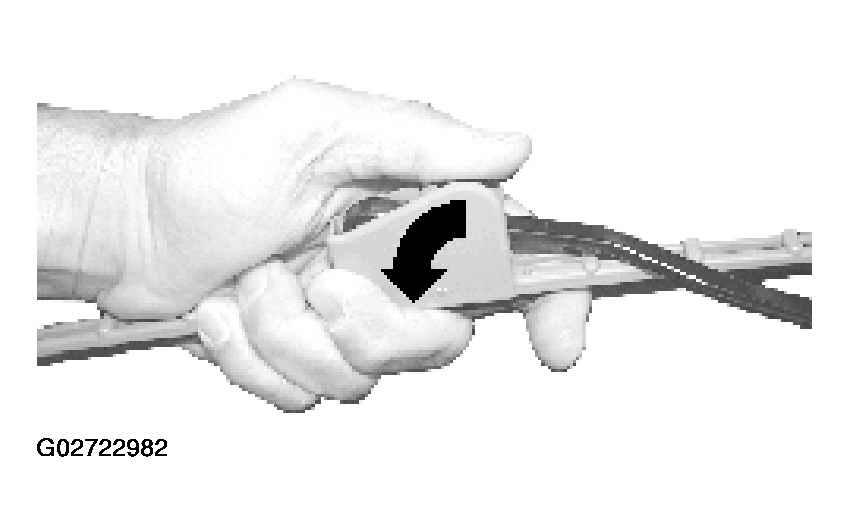

Rotate blade in opposite direction (black arrow) then, carefully slide blade off wiper arm.

Fig 2: Rotating Blade In Opposite Direction

Courtesy of AUDI OF AMERICA, INC.

NOTE: Wiper arm/blade alignment has been preset at the factory, then checked and adjusted (if necessary) during the PDI. DO NOT twist or bend the wiper arm. If wiper arm/blade alignment is incorrect, chattering and/or streaking will occur.

If arm has been bent:

See WINDSHIELD WIPER SYSTEM .

Install original equipment wiper blades (located in trunk) at the time of retail vehicle delivery.

NOTE:

Wiper blade with air deflector (arrow) must be installed on driver's side with deflector on bottom of wiper blade.

Fig 3: Identifying Wiper Blade With Air Deflector

Courtesy of AUDI OF AMERICA, INC.

Passenger's side wiper blade may be curved, install with curved ends of blade pointing up.

Fig 4: Identifying Passenger's Side Wiper Blade

Courtesy of AUDI OF AMERICA, INC.
