Transmission, mounting on assembly stand

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

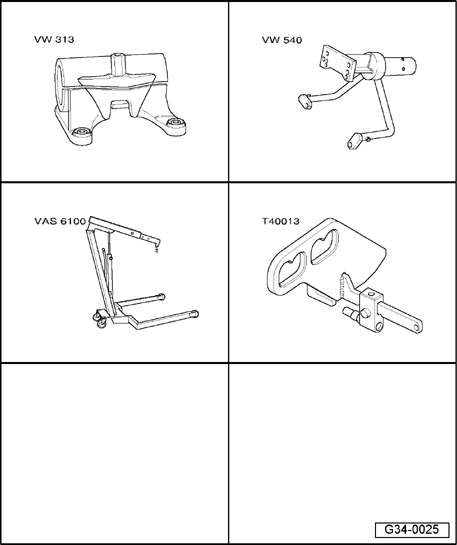

Fig 1: Identifying Special Tools - Transmission, Mounting On Assembly Stand

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Support clamp VW313
Engine/transmission support VW540
Workshop crane VAS6100
Transmission lift hook T40013

Fig 2: Hook Of Workshop Crane Fastened In 4th Notch On Lifting Tackle

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Procedure

Insert transmission lift hook T40013 in lifting eye on transmission and secure.
Fasten hook of workshop crane VAS6100 in 4th notch - arrow - on transmission lift hook T40013.
Lift transmission with workshop crane VAS6100 and transmission lift hook T40013.

Fig 3: Holding Fixture VW 540 Secured To Transmission And Installed Into Support Clamp VW313

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Secure holding fixture VW 540 to transmission and install into support clamp VW313.
