Coolant distribution housing with Map Controlled Engine Cooling Thermostat F265 , assembly overview

WARNING: This page is about a different car, the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

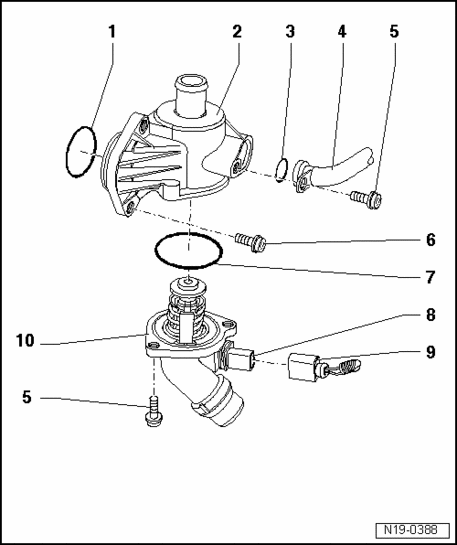

Fig 1: Coolant Distribution Housing With Map Controlled Engine Cooling Thermostat F265 , Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - O-ring

Replace

2 - Coolant distribution housing

3 - O-ring

Replace

4 - Lower coolant line

5 - 10 Nm

6 - 15 Nm

7 - Seal

Replace

8 - Heating element connection

9 - Connector

10 - Map Controlled Engine Cooling Thermostat F265

Checking → Map Controlled Engine Cooling Thermostat F265 , checking
With connecting piece
Opening begins approx. 105 °C
Removing and installing → Map Controlled Engine Cooling Thermostat F265 , removing and installing
