Sealing flanges and flywheel/drive plate, removing and installing
WARNING: This page is about a different car, the 2006 Audi A4, 2005 Audi A4, 2004 Audi A4, and 2003 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Servicing work on clutch:
- →
- 30 CLUTCH for 5 SPD. MANUAL TRANSMISSION 012/01W FRONT WHEEL DRIVE
- 30 CLUTCH for 5 SPD. MANUAL TRANSMISSION 01A ALL WHEEL DRIVE
- 30 CLUTCH for 6 SPD. MANUAL TRANSMISSION 01E ALL WHEEL DRIVE
- 30 CLUTCH for 6-SPEED MANUAL TRANSMISSION 01X, FRONT-WHEEL DRIVE
- 30 CLUTCH for 6-SPEED MANUAL TRANSMISSION 02X, FOUR-WHEEL DRIVE
- 30 CLUTCH for 6-SPEED MANUAL TRANSMISSION 0A3, ALL WHEEL DRIVE

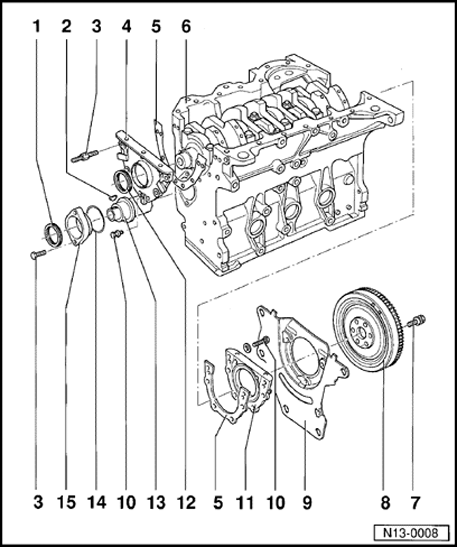

1 - Oil seal
- Install with 10-203
2 - Woodruff key
- Make sure key is seated properly
3 - 25 Nm
4 - Front sealing flange
- Remove oil pan to remove and install → Oil pan, removing and installing
5 - Gasket
- Replace
6 - Cylinder block
- Removing and installing crankshaft → Crankshaft, removing and installing
- Disassembling and assembling pistons and connecting rods → Pistons and connecting rods, disassembling and assembling
7 - Securing bolt for dual-mass flywheel/drive plate
- Replace
- Tightening torque for dual-mass flywheel: 60 Nm + 1/2 turn (180 ° ) further
- Tightening torque for drive plate (vehicles with automatic transmission): 60 Nm + 1/4 turn (90 ° ) further
8 - Dual-mass flywheel/drive plate
- Removing and installing dual-mass flywheel → Dual-mass flywheel/drive plate, removing and installing
- Removing and installing drive plate
9 - Intermediate plate
- Must be located on dowel sleeves
- Do not damage/bend when installing
10 - 10 Nm
11 - Rear sealing flange
- With oil seal
- Remove oil pan to remove and install → Oil pan, removing and installing
- Replace only as complete assembly
12 - Oil seal
- Replacing → Crankshaft oil seal - pulley end, replacing
13 - Intermediate shaft
- Axial clearance max. 0.25 mm
14 - O-ring
- Replace
15 - Sealing flange for intermediate shaft
