Oil seal for right Camshaft position (CMP) sensor, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Remove cover -1-.

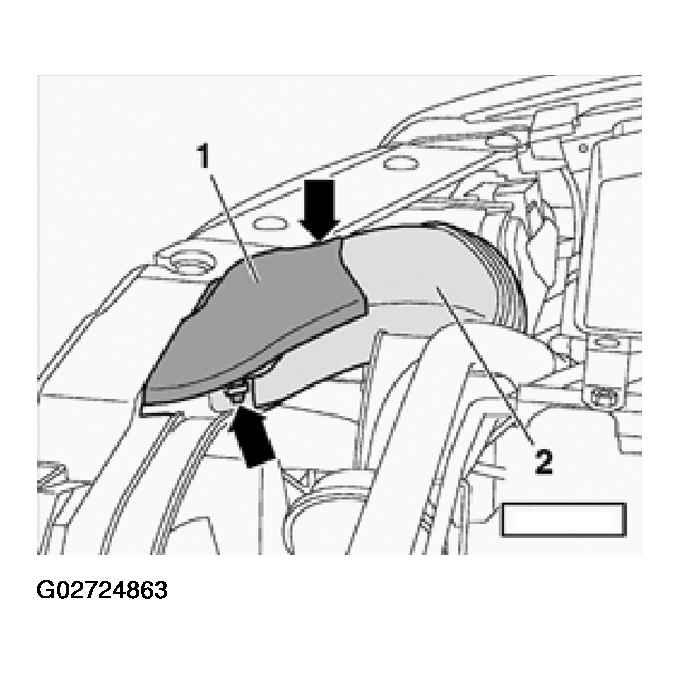

Remove air intake hose for air cleaner -2-.

Fig 1: Removing Air Intake Hose For Air Cleaner

G02724863

Courtesy of AUDI OF AMERICA, INC.

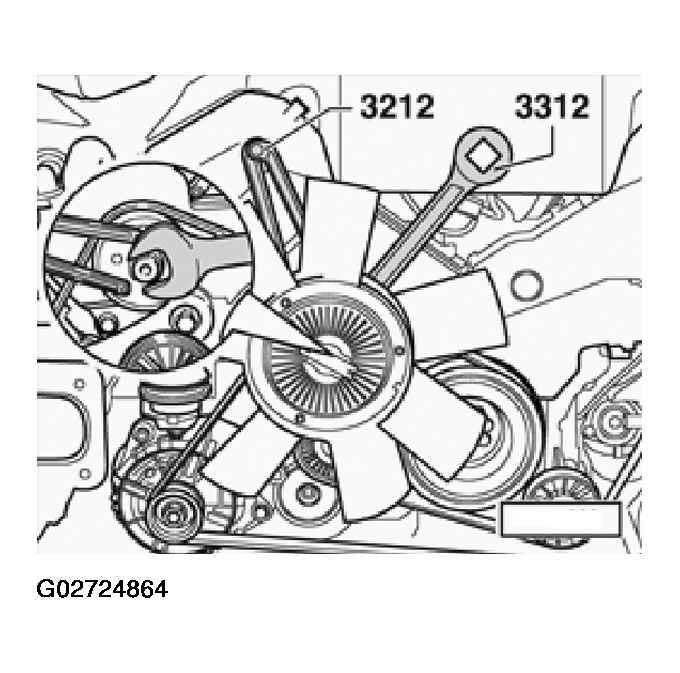

Counter-hold viscous fan pulley with pin wrench 3212 and tighten fan using open-end wrench 3312 and torque wrench (FAN HAS LEFT-HAND THREAD).

Fig 2: Installing Viscous Fan Pulley With Pin Wrench 3212

G02724864

Courtesy of AUDI OF AMERICA, INC.

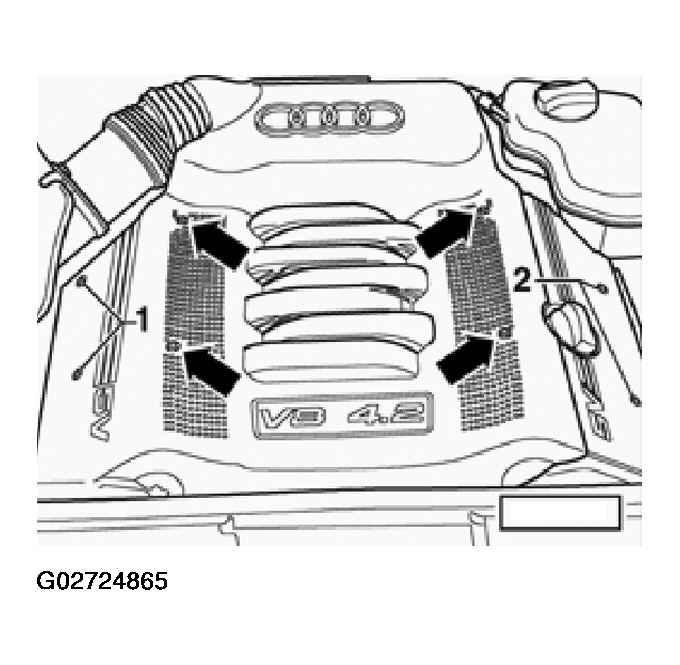

Remove cover -arrows-.

Fig 3: Removing Cover

G02724865

Courtesy of AUDI OF AMERICA, INC.

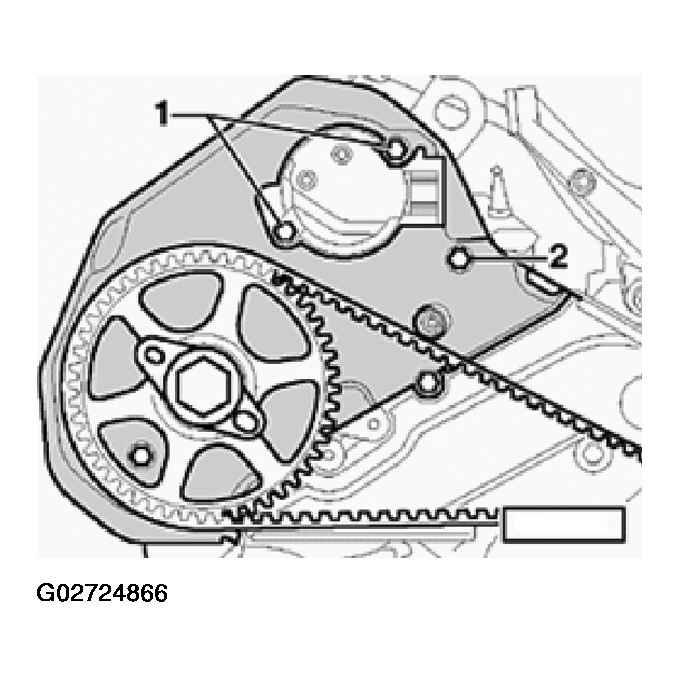

Remove right toothed belt cover.
Disconnect connector for Camshaft Position (CMP) sensor.
Remove bolts -1-.
Loosen bolt -2-.
Pull toothed belt cover toward front and remove CMP housing.

Fig 4: Pulling Toothed Belt Cover Toward Front - Right Side

G02724866

Courtesy of AUDI OF AMERICA, INC.

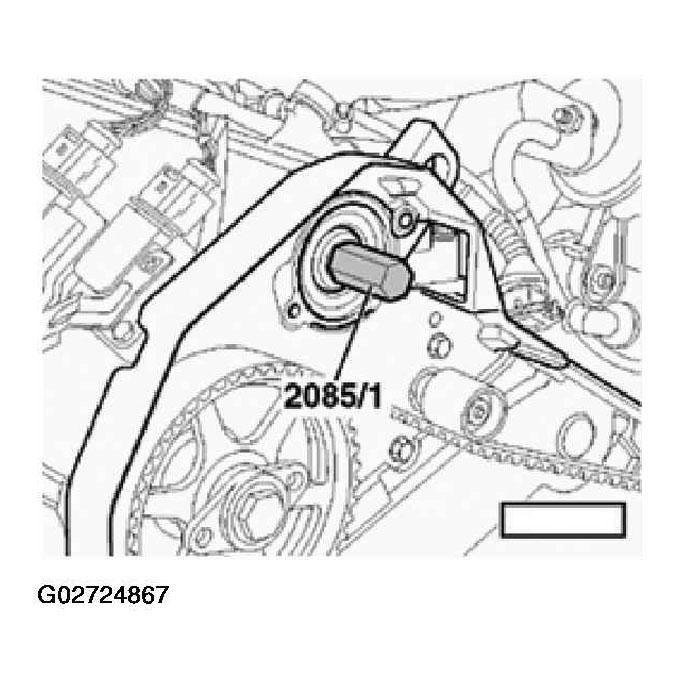

Install bolt from seal extractor 2085/1.

Fig 5: Installing Bolt From Seal Extractor 2085/1

G02724867

Courtesy of AUDI OF AMERICA, INC.

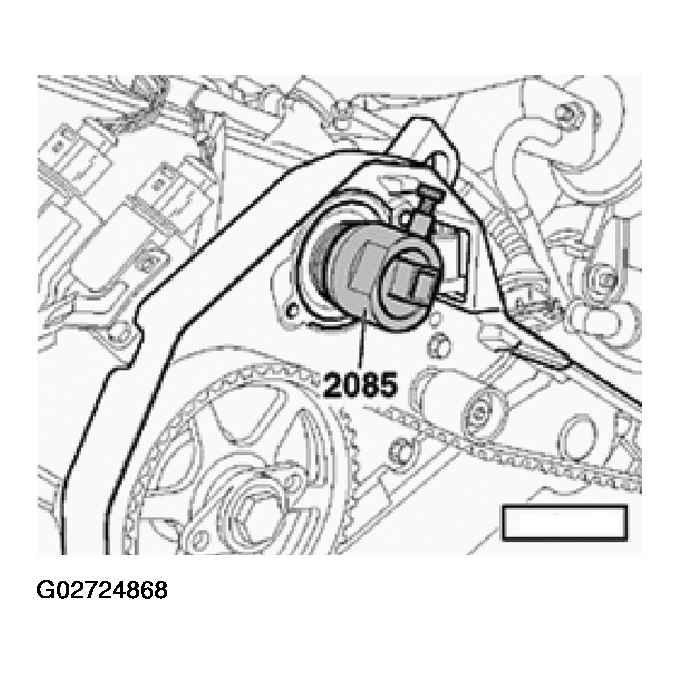

Remove seal with seal extractor 2085 and bolt 2085/1.

Fig 6: Removing Oil Seal For Right Camshaft Position (CMP) Sensor Using Seal Extractor 2085 And Bolt 2085/1
Courtesy of AUDI OF AMERICA, INC.
