Right cylinder head cover, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Install cylinder head in reverse order of removal but note the following:

NOTE: Replace cylinder head cover gaskets if damaged.

Apply a small amount of sealant D 454 300 A2 to sealing points -arrows- on sealing surface of cylinder head.

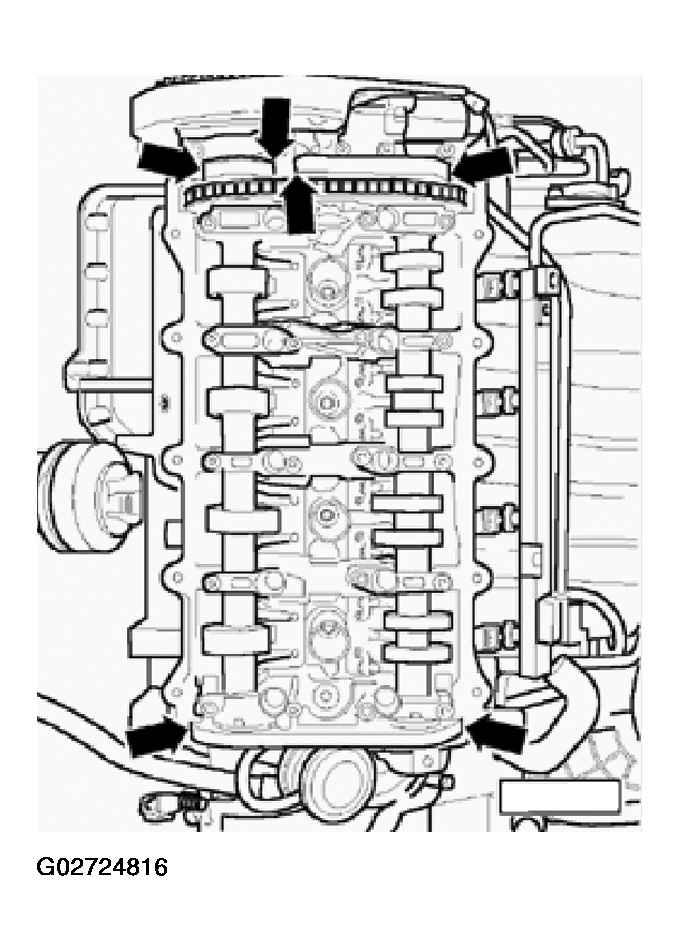

Fig 1: Cylinder Head Cover Sealing Points
Courtesy of AUDI OF AMERICA, INC.

Tighten cylinder cover according to number sequence in illustration.

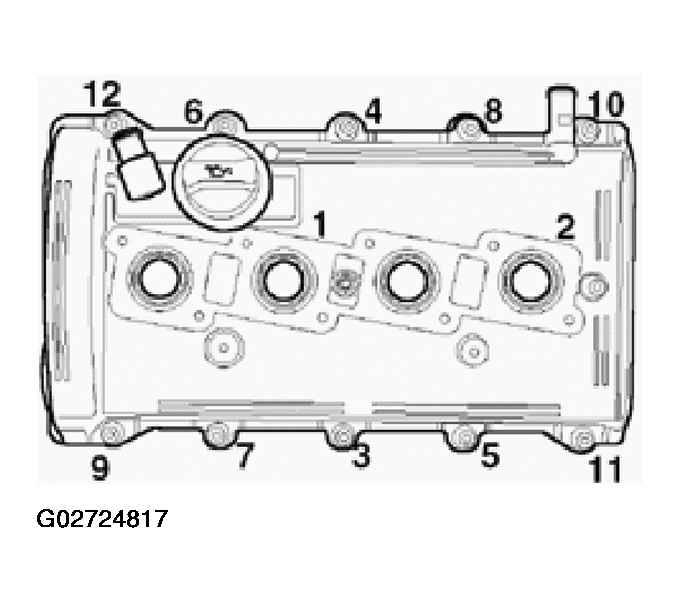

Fig 2: Right Cylinder Head Cover Bolt Tightening Sequence

Courtesy of AUDI OF AMERICA, INC.

TIGHTENING TORQUES: RIGHT CYLINDER HEAD COVER

Tightening torques	Nm/ft lb
Cylinder head cover to cylinder head	10/7
Ignition coil to cylinder head cover	10/7
