Test conditions
WARNING: This page is about a different car, the 2003 Audi S6 and 2002 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
- Engine idling
- Coolant temperature greater than 85 °C (display group 4, display zone 3)
Indicated on display
- Press keys 0 and 4 for function "Basic Setting" and confirm entry by pressing the Q key.

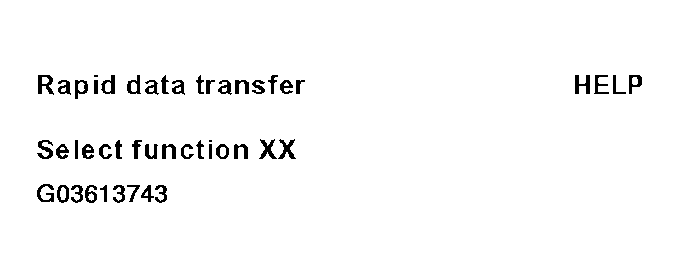

Indicated on display

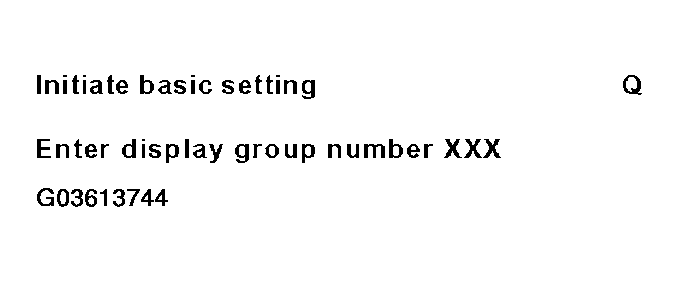

- Enter "070" for "display group number 070" and confirm entry with Q key.

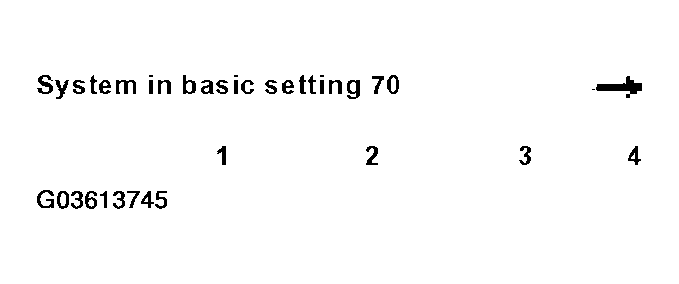

Display readout
- Check specification in display zone 4:
DISPLAY GROUP 070: DIAGNOSIS OF EVAP CANISTER PURGE REGULATOR VALVE
| Display zones | ||||
|---|---|---|---|---|
| 1 | 2 | 3 | 4 | |
| Display group 070: Diagnosis of EVAP canister purge regulator valve (FTBV) | ||||
| Display | xx % | xx.x % | xx % | --- |
| Display | Opening angle of EVAP canister purge regulator valve | Oxygen sensor control deviation | Relative mass flow through EVAP canister purge regulator valve | Diagnosis status |
| Range | min.: 0 % max.: 100 % |
min.: -25.0 % max.: 25.0 % |
Test OFF Test ON FTBV OK FTBV NOK Cancel |
|
| Specified value | xx % | -5.5...6.3 % | xx...xx % | FTBV OK |
| Note: | See note under OPERATION 4: DIAGNOSIS OF FUEL SUPPLY SYSTEM . | If "FTBV NOK" is displayed: Check memory
. See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING AND ERASING. Check EVAP canister purge regulator valve -N80- . See EVAPORATIVE EMISSION (EVAP) CANISTER PURGE REGULATOR VALVE -N80-, CHECKING . |
||
Note on display zone 3:
A display only occurs when the diagnostic result occurred not due to a deviation of the oxygen sensor control (e.g. oxygen sensor 1 from EVAP canister) but due to a deviation of the idling controller within a certain tolerance range. Otherwise display zone 3 remains empty .
If specification "FTBV OK" is attained:
- Press C key.
