Bank 2, actuating valve for camshaft adjustment

WARNING: This page is about a different car, the 2003 Audi S6 and 2002 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Press -->key.

Indicated on display:

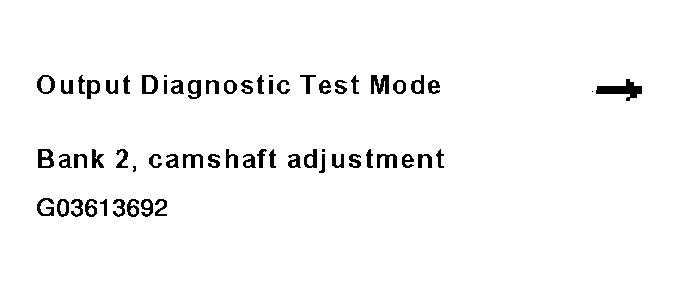

Fig 1: VAG 1551 Scan Tool Display - Actuating Valve For Camshaft Adjustment

Courtesy of AUDI OF AMERICA, INC.

Valve 2 for camshaft adjustment -N208- is actuated for approx. 1 minute (click).

If the valve 2 is not actuated (the valve does not click):

Check valve for camshaft adjustment. See CAMSHAFT TIMING CONTROL, CHECKING .
