Actuating Secondary Air Injection (AIR) solenoid valve -N112-

WARNING: This page is about a different car, the 2003 Audi S6 and 2002 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Press key.

Indicated on display

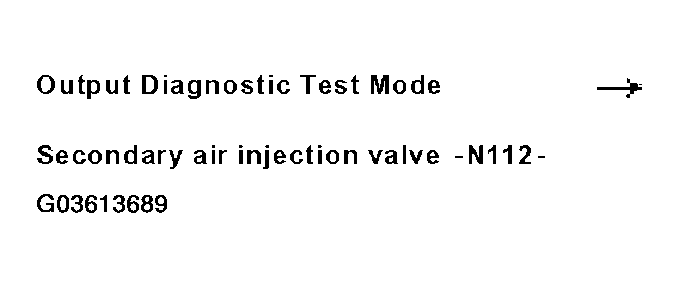

Fig 1: VAG 1551 Scan Tool Display - Actuating Secondary Air Injection Solenoid Valve

Courtesy of AUDI OF AMERICA, INC.

Solenoid valve will continue to be actuated (clicks) until -->key is pressed to switch to next control element.

If the secondary air inlet valve does not click:

Check secondary air injection (AIR) solenoid valve -N112 -. See SECONDARY AIR INJECTION (AIR) SOLENOID VALVE - N112-, CHECKING .
