Vehicle Diagnostic, Testing and Information System VAS 5051, connecting and selecting engine control module: Procedure

WARNING: This page is about a different car, the 2003 Audi S6 and 2002 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Connect vehicle diagnostic, testing and information system VAS 5051 with diagnostic cable VAS 5051/1 or 3.

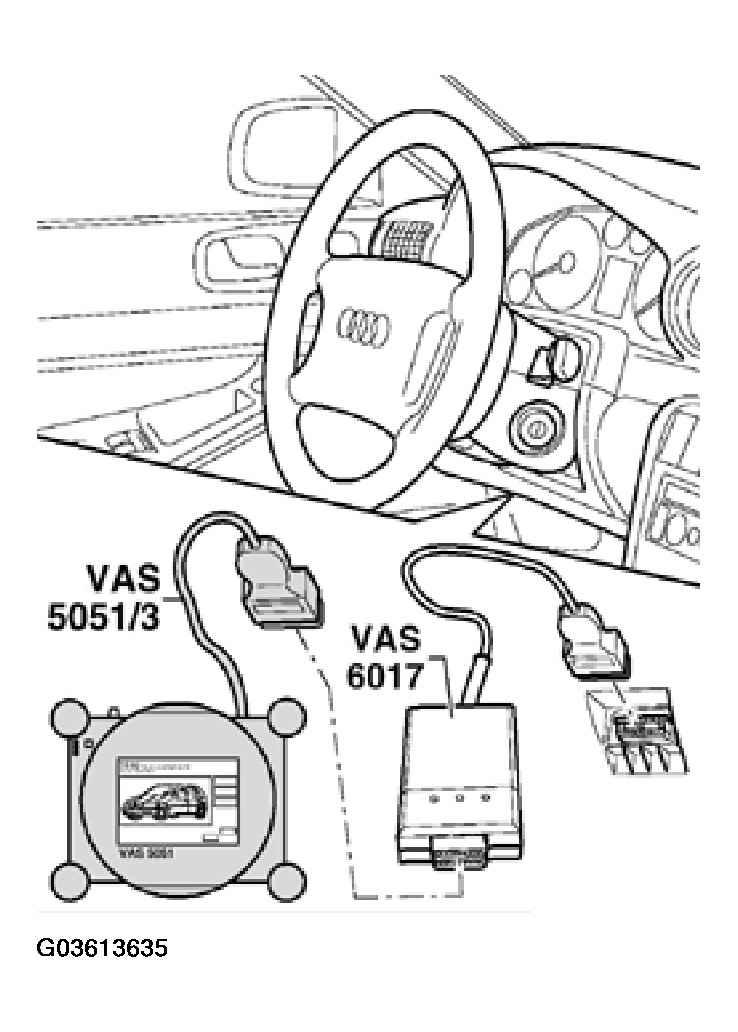

Fig 1: Connecting VAS 5051 To DLC
Courtesy of AUDI OF AMERICA, INC.

In the automatic test sequence function (address word 00), the K -wire adapter VAS 6017 must also be used on vehicles as of model year 2002.

WARNING:

When driving the vehicle for measurement and test purposes, always secure the vehicle diagnostic, testing and information system VAS 5051on the rear seat only and operate it from this position (second person required).
Observe the safety precautions. See SAFETY PRECAUTIONS .

Depending on the function required:

Switch on ignition

Start engine. See FUNCTIONS WHICH CAN BE SELECTED WHEN USING V.A.G 1551 SCAN TOOL .
