Tail light and bulb carrier, removing and installing: Removing

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Fold pre-punched area -1- of luggage compartment lining forward.
Remove bolt -3-.

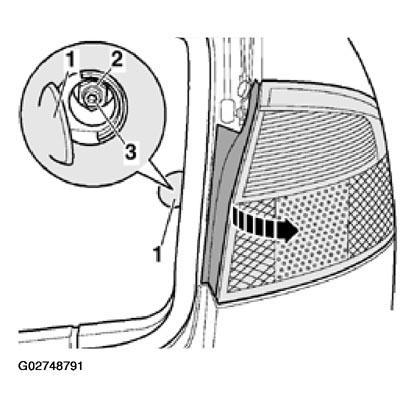

Fig 1: Folding Pre-Punched Area Of Luggage Compartment Lining Forward & Removing Tail Light Bolt

Courtesy of AUDI OF AMERICA, INC.

Swivel tail light outward and disengage retaining pins from body.
Unplug connector at bulb carrier.
Press retaining catches inward -arrows- and take bulb carrier out of tail light unit.

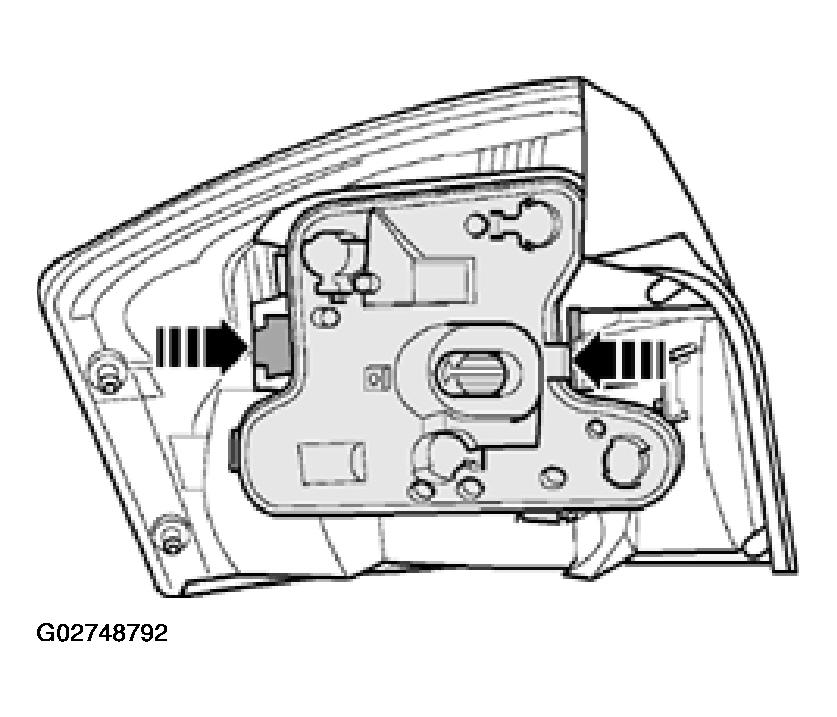

Fig 2: Pressing Retaining Catches Inward

Courtesy of AUDI OF AMERICA, INC.

Turn bulbs to remove them from their holders.
