Tail light and bulb carrier, removing and installing: Installing

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order, paying attention to the following:

NOTE: Make sure that seal between body and tail light housing is properly seated.

Position tail light on body and press retaining pins into holes.
Tighten bolts -3- to 6 Nm.

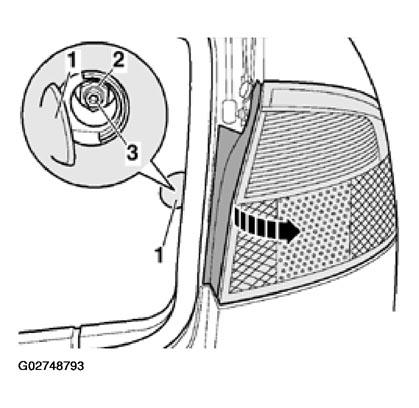

Fig 1: Locating Tail Light Bolts

Courtesy of AUDI OF AMERICA, INC.

NOTE: After loosening nut -2-, tail lights can be aligned to body contours (even gap widths).
