Rear light and bulb carrier (Avant), removing and installing: Removing

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

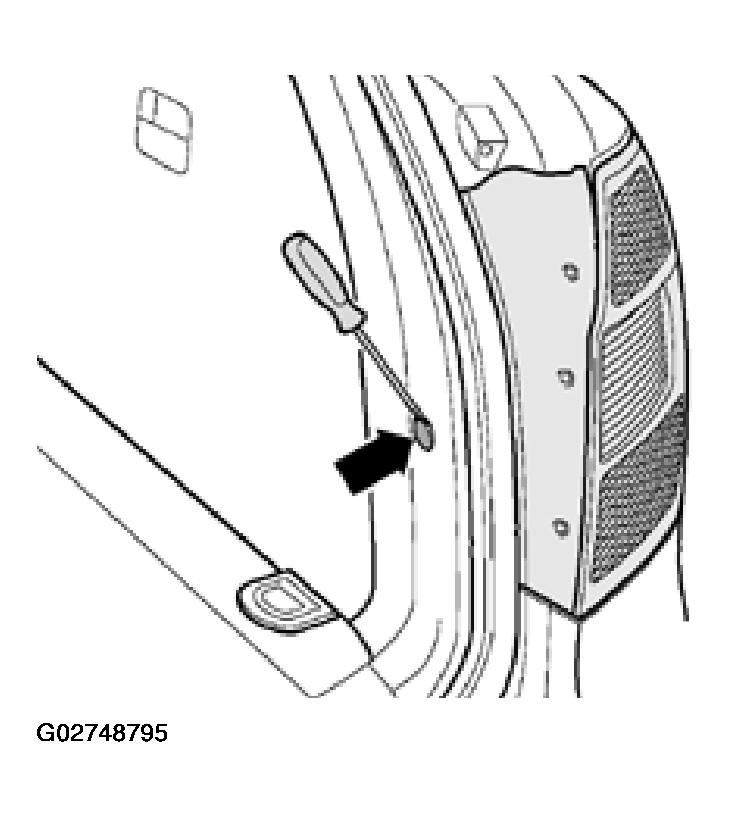

Unclip plug cap -arrow- from luggage compartment trim.

Fig 1: Unclipping Plug Cap From Luggage Compartment Trim (Avant)

Courtesy of AUDI OF AMERICA, INC.

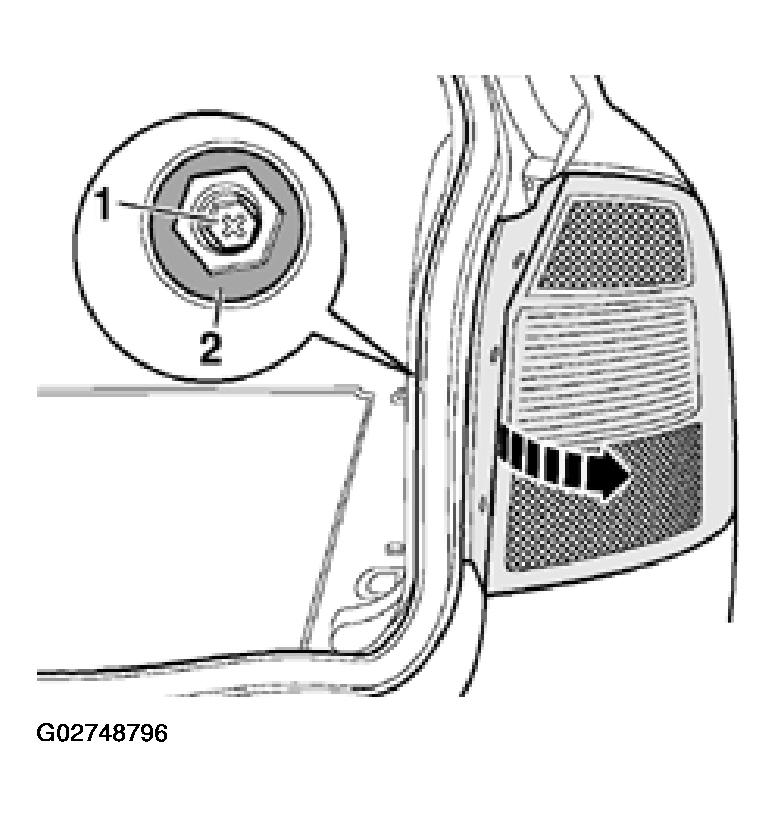

Remove screw -1-.

Fig 2: Removing Tail Light Screw (Avant)

Courtesy of AUDI OF AMERICA, INC.

Swing taillight outward while unhooking securing bolt from chassis.
Disconnect electrical harness connector at bulb carrier.

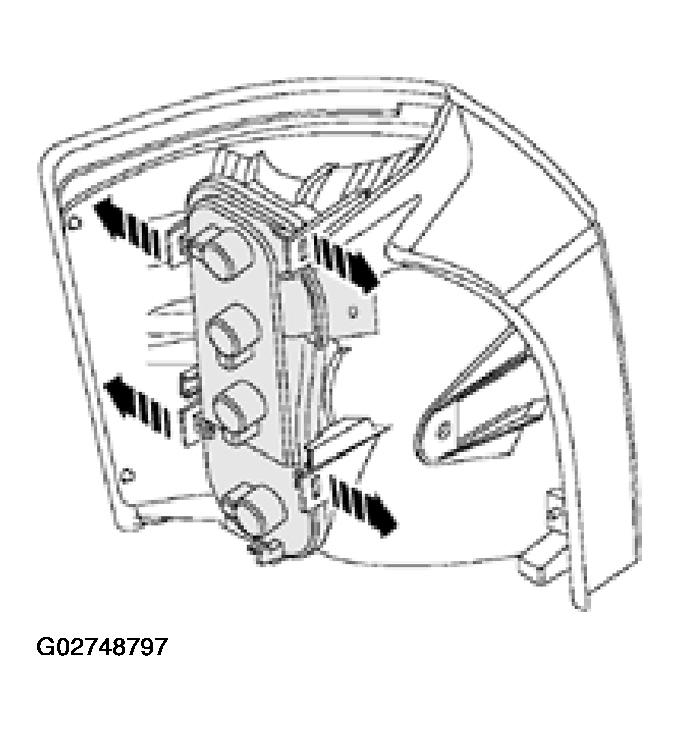

Spread mounting bracket -arrows- and remove bulb carrier from taillight.

Fig 3: Spreading Mounting Bracket And Removing Bulb Carrier From Taillight (Avant)

Courtesy of AUDI OF AMERICA, INC.

Remove light bulbs from sockets.
