Rear light and bulb carrier (Avant), removing and installing: Installing

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Installation is the reverse order of removal while observing the following:

NOTE: Make sure seal between chassis and taillight housing seals evenly.

Place taillight on chassis and press securing bolts into bores.
Tighten screw -1- to 6 Nm.

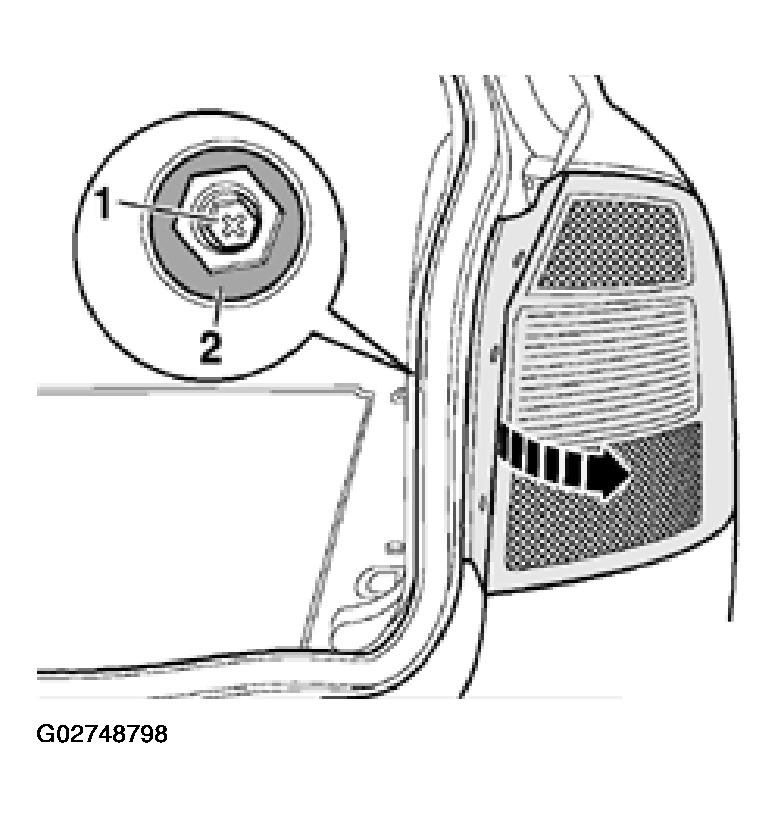

Fig 1: Locating Tail Light Screw (Avant)

Courtesy of AUDI OF AMERICA, INC.

NOTE: Taillight can be adjusted to vehicle contour (same gap dimensions) after loosening nut -2-.
