Overview (Avant)

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following list refers to Fig 1.
  1. Bulb carrier
  2. Clip nut
    • Qty. 2
  3. Electrical harness connector
  4. Securing piece
    • Replace if seal is damaged
  5. Nut - 12 Nm
  6. O-ring
    • Replace if damaged
  7. Bolt - 6 Nm
  8. Light bulb for fog light
    • 12 V, 21 W
  9. Light bulb for turn signal
    • 12 V, 21 W
    • Orange
  10. Light bulb for back up light
    • 12 V, 21 W
  11. Light bulb for brake light/rear light
    • 12 V, 21/5 W
  12. Housing

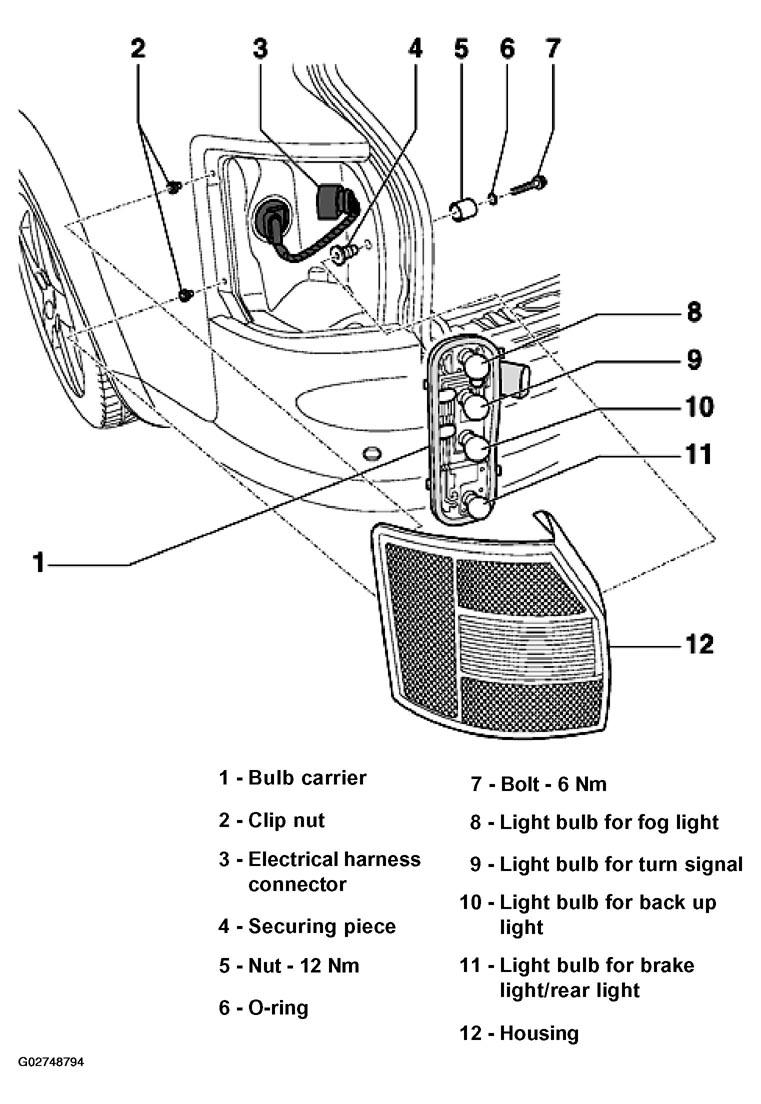

    13. Fig 1: Overview Of Rear Lights (Avant)
    G02748794Courtesy of AUDI OF AMERICA, INC.
