Warning buzzer for parking -H15- (sedan), removing and installing: Removing

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Location: Right rear, below rear shelf.

Remove rear shelf:
See REAR SHELF, ASSEMBLY OVERVIEW .
Disconnect electrical harness connector.
Using a TORX screwdriver, turn to remove threaded pin of expanding clip
Remove warning buzzer -arrow- from luggage compartment separating wall upward.

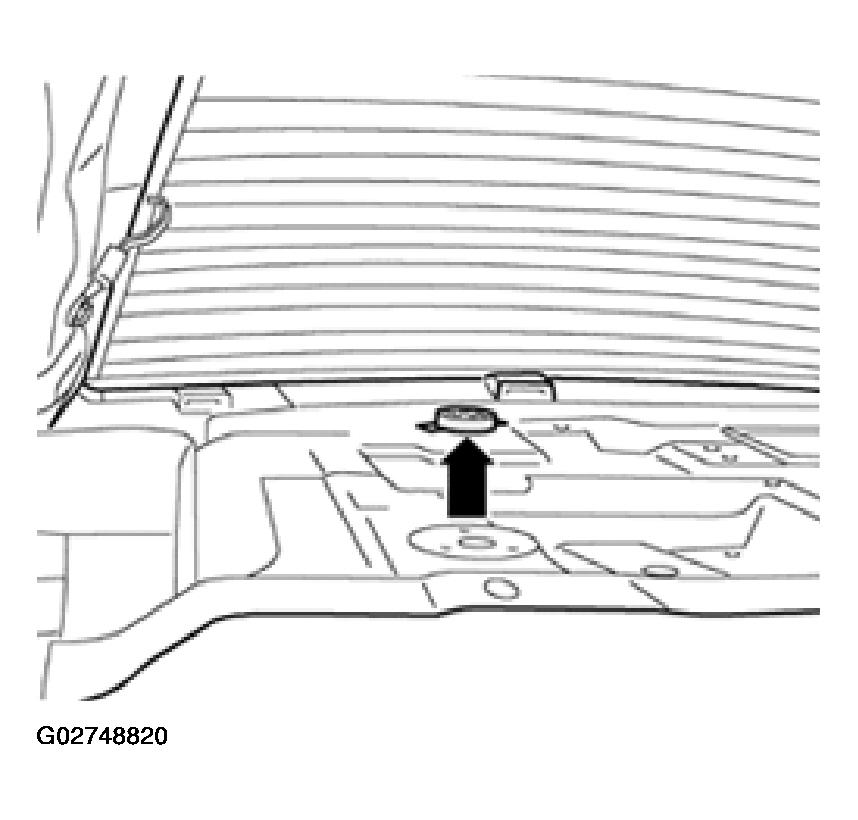

Fig 1: Removing Warning Buzzer -H15- From Luggage Compartment Separating Wall Upward (Sedan)

Courtesy of AUDI OF AMERICA, INC.
