Lock cylinder, removing and installing: Removing: All:

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The spare key is necessary for removing the lock cylinder, because the following sequence can only be performed using an ignition key with flat key grip, i.e. without illumination and without remote control.

Turn replacement key to "Ignition ON" position, this lines up the cutout in the trim -arrow- with the hole in ignition lock.
NOTE: The illustration shows the correct lock position without the ignition key.

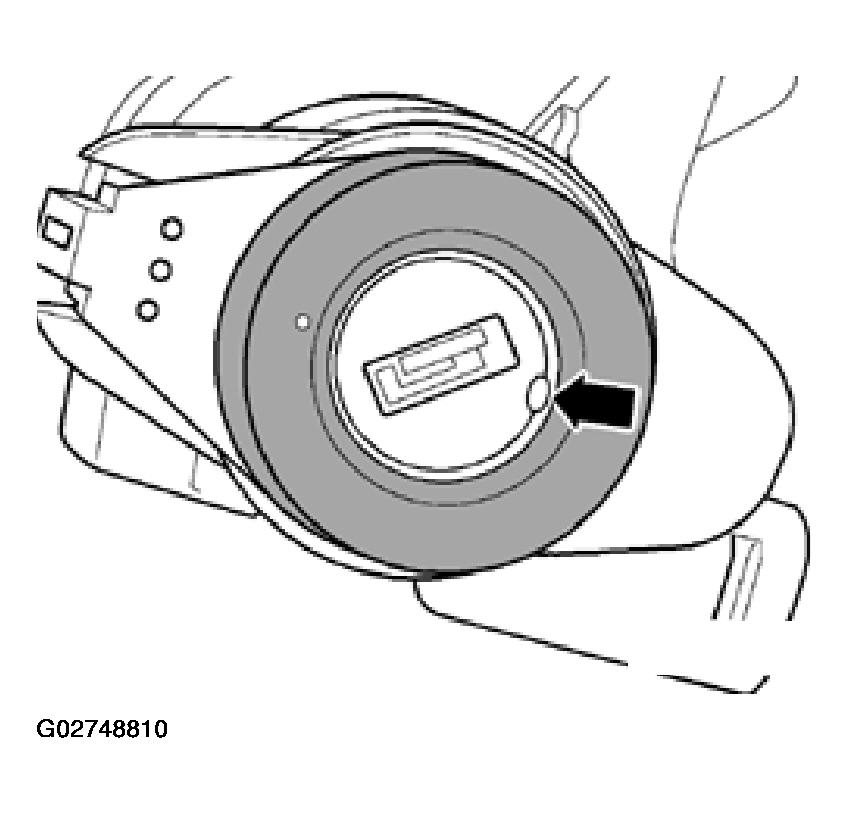

Fig 1: Locating Cutout In Trim

Courtesy of AUDI OF AMERICA, INC.

Insert steel wire or pin (approx. 1.5 mm diameter) into hole -1- up to stop while pulling lock cylinder -2- with induction coil out of steering lock housing -3-.

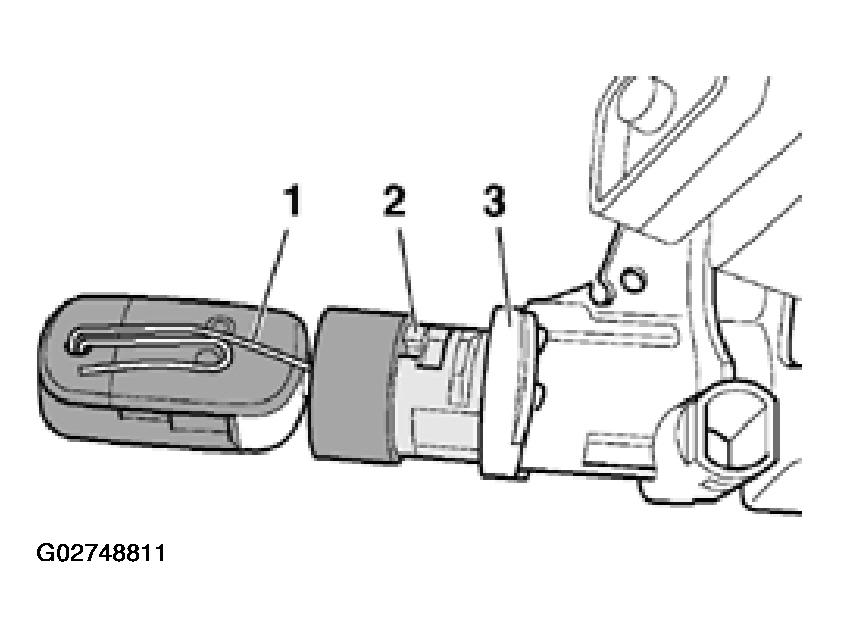

Fig 2: Inserting Steel Wire Or Pin Into Hole & Pulling Lock Cylinder Out Of Steering Lock Housing

Courtesy of AUDI OF AMERICA, INC.

NOTE: Always observe specifications for replacing induction coil for anti-theft immobilizer if lock cylinder must be replaced. See READER COIL, REPLACING .
