High-mount brake light (Avant), removing and installing: Removing

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Remove upper trim of rear lid
See REAR LID TRIM, ASSEMBLY OVERVIEW .

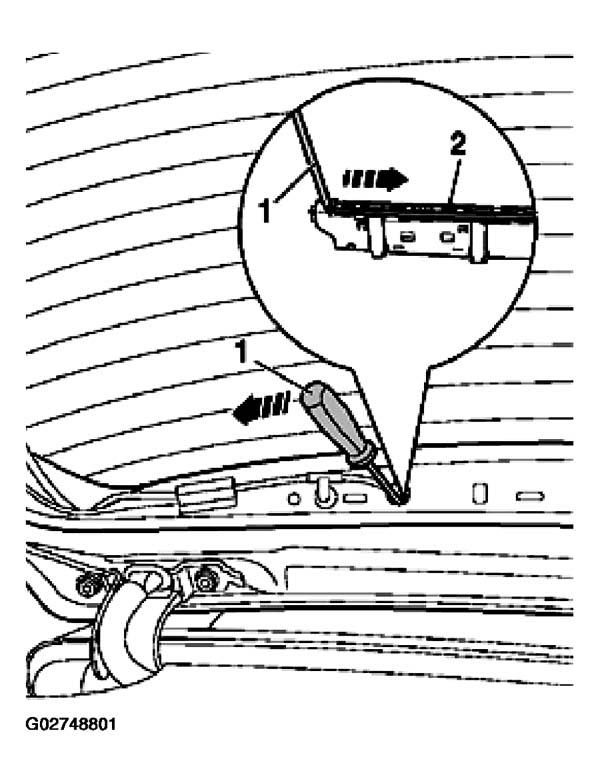

Insert a screwdriver -1- into the hole in the rear lid through which the wire leads to high-mount brake light.
Disengage securing rail -2- of spring tabs toward the right - arrow in exploded view- by pressing screwdriver handle to the left -arrow- with force.

Fig 1: Inserting Screwdriver Into Hole In Rear Lid & Disengaging Securing Rail (Avant)

Courtesy of AUDI OF AMERICA, INC.

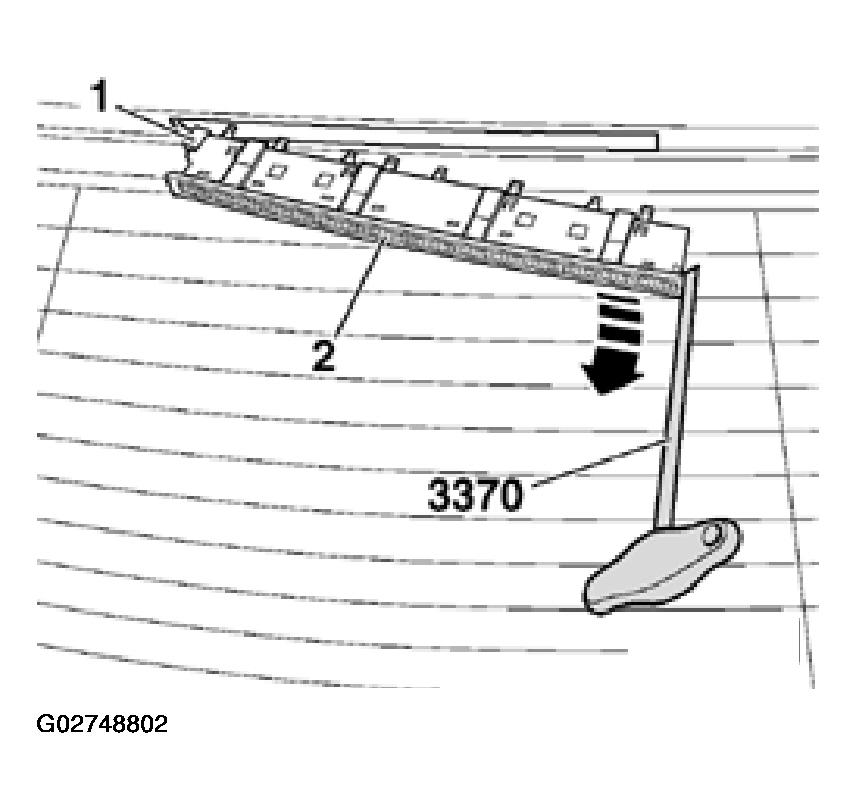

Using 3370 special hook, pull high-mount brake light -2- out of chassis cutout starting at right -arrow-.
Disconnect electrical harness connector -1-.

Fig 2: Pulling High-Mount Brake Light Out Of Chassis Cutout (Avant)

Courtesy of AUDI OF AMERICA, INC.

Remove securing rail for high-mount brake light (5x) from rear lid.
