Ignitor for gas-discharge lamps -N195-, removing and installing: Removing

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Remove headlight. See HEADLIGHTS, REMOVING AND INSTALLING .
Detach cover for dipped beam from headlight housing.
Detach connector -1- on High intensity gas discharge (Xenon) bulb by turning counter-clockwise.
NOTE: Do not remove retaining spring -arrows- for High intensity gas discharge (Xenon) bulb.

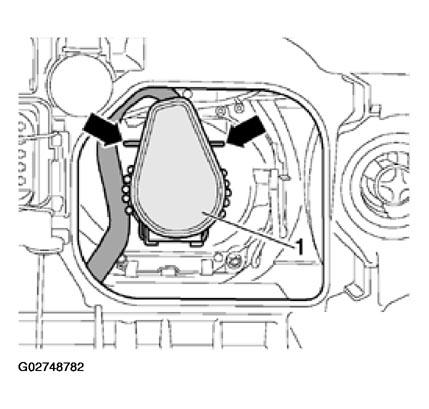

Fig 1: Detaching Connector On High Intensity Gas Discharge (Xenon) Bulb

Courtesy of AUDI OF AMERICA, INC.

Remove bolts -arrows-

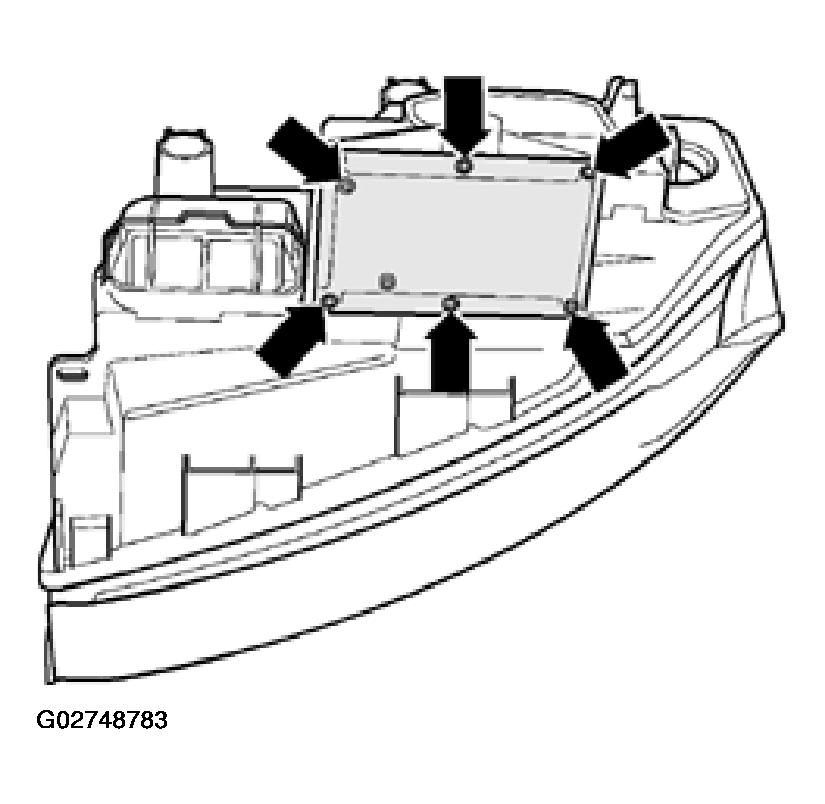

Fig 2: Removing High Intensity Gas Discharge (Xenon) Igniter Bolts
Courtesy of AUDI OF AMERICA, INC.
Detach igniter from headlight housing.
The connector on High intensity gas discharge (Xenon) bulb can then be guided through headlight housing
