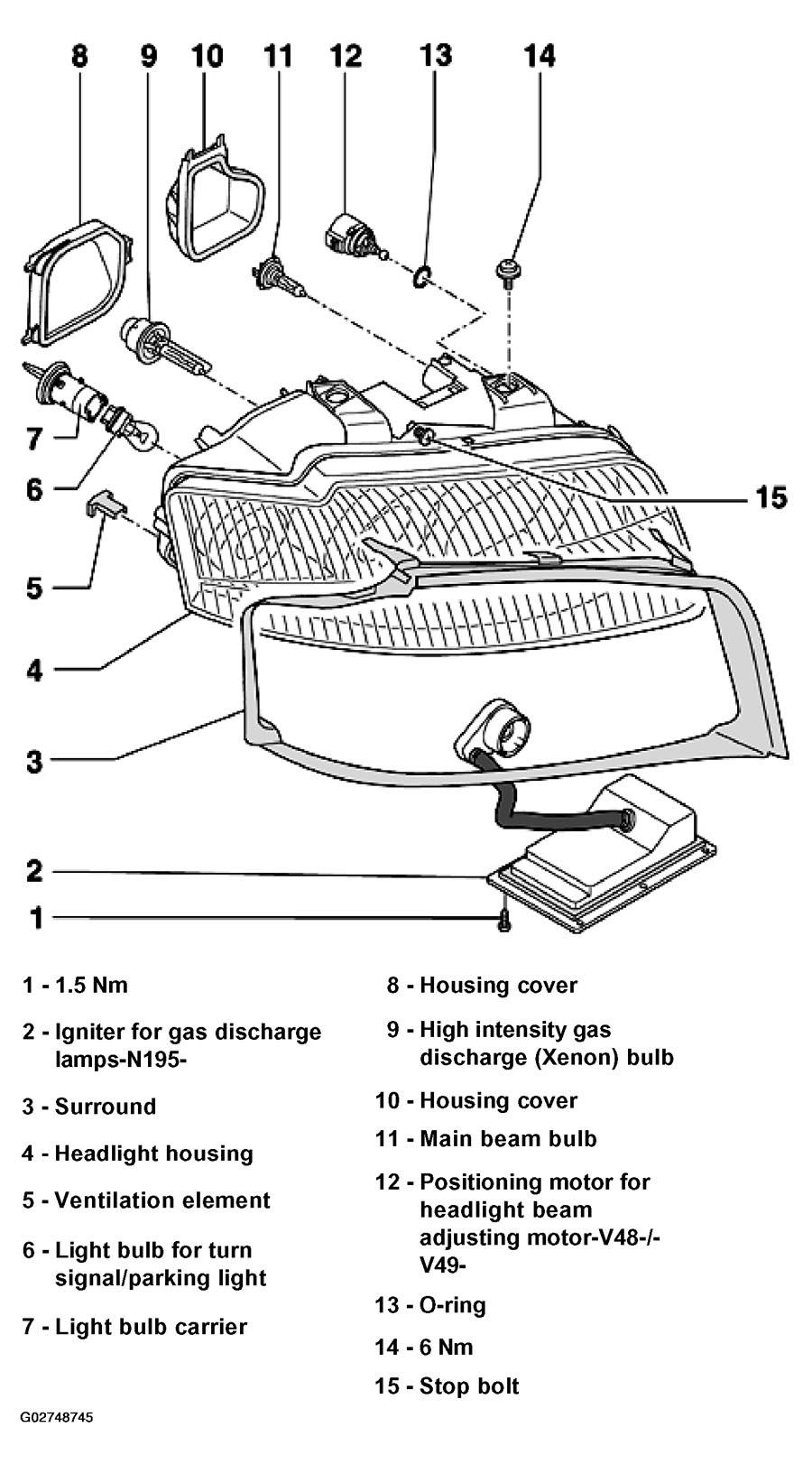

High intensity gas discharge (Xenon) headlights, exploded view
WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The following list refers to Fig 1.
- 1.5 Nm
- Igniter for gas discharge lamps -N195-
- Removing and installing. See IGNITOR FOR GAS-DISCHARGE LAMPS -N195-, REMOVING AND INSTALLING .
- Surround
- Headlight housing
- Ventilation element
- Qty. 2
- Light bulb for turn signal/parking light
- 12 V, 27/7 W
- Orange
- Light bulb replacement. See LIGHT BULB FOR TURN SIGNAL/PARKING LIGHT, REPLACING .
- Light bulb carrier
- For signal/parking light
- Housing cover
- For low beam headlight
- High intensity gas discharge (Xenon) bulb
- 35 W, D2S
- Replacing bulb. See BULB FOR DIPPED BEAM (HIGH INTENSITY GAS DISCHARGE (XENON) HEADLIGHTS), REPLACING .
- Housing cover
- For main beam
- Main beam bulb
- H7 - 12 V, 55 W
- Replacing bulb. See LIGHT BULB FOR HIGH BEAM (HIGH INTENSITY GAS DISCHARGE (XENON) HEADLIGHTS), REPLACING .
- Positioning motor for headlight beam adjusting motor -V48-/-V49-
- Removing and installing. See SIDE LIGHT BULB (HIGH INTENSITY GAS DISCHARGE (XENON) HEADLIGHTS), REPLACING .
NOTE: Performing measures which could affect their setting headlights must be readjusted. - O-ring
- For positioning motor for headlight vertical aim control
- 6 Nm
- Stop bolt
- For aligning headlight housing to body contour
- Must sit against lock carrier
