Headlights, removing and installing: Installing: Notes

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order, paying attention to the following:

Check that ventilation elements at bottom of headlights are inserted.

Fig 1: Checking Ventilation Elements At Bottom Of Headlights Are Inserted

Courtesy of AUDI OF AMERICA, INC.

Push headlight horizontally up to stop on bottom headlight mount.
Bring stop bolt -1- into contact with lock carrier.

Fig 2: Bringing Stop -1- Bolt Into Contact With Lock Carrier

Courtesy of AUDI OF AMERICA, INC.

Align headlight to contours of body (gap widths) using stop bolt.
NOTE: Note area of fender panel cut out when aligning headlight.
Tighten bolts -2 to 5-.

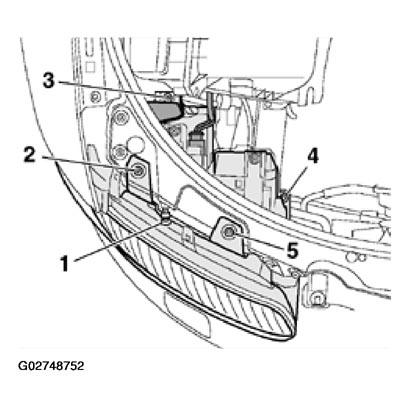

Fig 3: Locating Headlight Bolts

Courtesy of AUDI OF AMERICA, INC.

Adjust headlights after installation. See HEADLIGHTS, ADJUSTING .
