Test requirement:: Notes

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Vehicle diagnostic, testing and information system VAS 5051 with K-wire adapter VAS 6017 connected, vehicle self-diagnosis and vehicle system "55 - headlight vertical aim control" selected.

Indicated on VAS 5051:

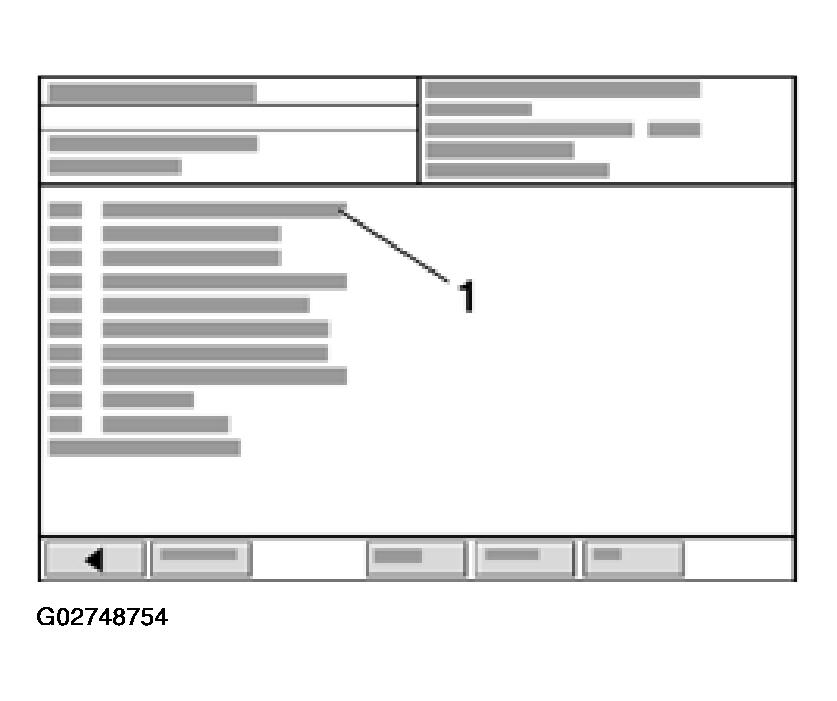

Fig 1: VAS 5051 Display - Adjusting Headlight (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Enter diagnostic function "04 - Basic setting" in selection -1-.

Indicated on VAS 5051:

Fig 2: VAS 5051 Display - Adjusting Headlight (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Enter display group
1. max. input value = 255

Use keypad -2- to enter "001" for "display group number 001" and confirm by pressing Q key.
- The headlights will now be moved into setting position.

Indicated on VAS 5051:

Fig 3: VAS 5051 Display - Adjusting Headlight (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Display group 1
1. System in basic setting
Headlight
1. Adjusting

The headlights are now in setting position.

NOTE: Basic setting function 1 switches off automatic range control and fault "Headlights not set" will be stored in DTC memory.
