Fog lights, removing and installing: Removing

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

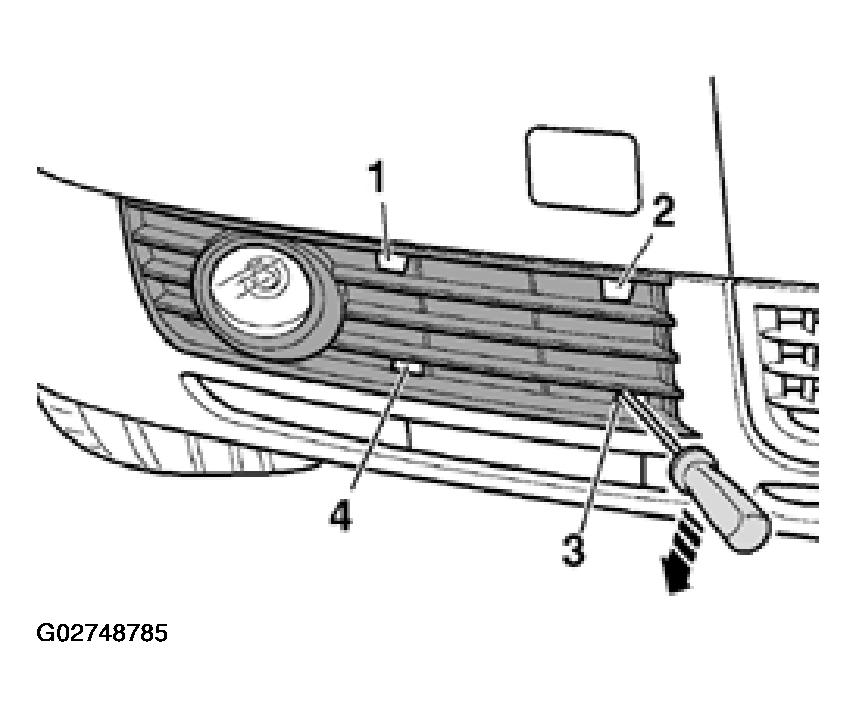

Disengage catches -1 to 4- using a screwdriver -arrow- and pull off air inlet grid in lower part of bumper.

Fig 1: Disengaging Trim Catches Using Screwdriver

Courtesy of AUDI OF AMERICA, INC.

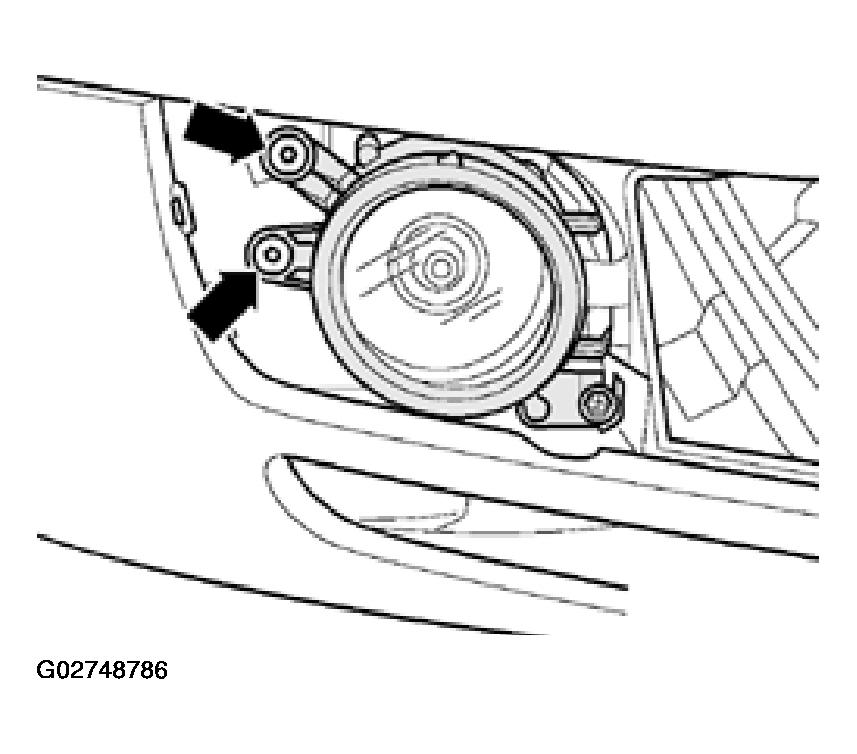

Remove bolts -arrows-.

Fig 2: Removing Fog Light Bolts

Courtesy of AUDI OF AMERICA, INC.

Disengage and remove headlight inserts.
Unplug connector.
