Rear cross panel trim, assembly overview

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

The following list pertains to Fig 1.

Bolts (4x)
- Tightening torque 5 Nm
Rear cross panel trim
- Removal
  - Open lid for storage area floor.
  - Remove bolts -1- (4x).
  - Carefully remove rear cross panel trim -2- from locking pins -arrows-.
- Installing
  - Tailgate rubber must lie over rear cross panel trim.
  - Tighten bolts to 5 Nm.

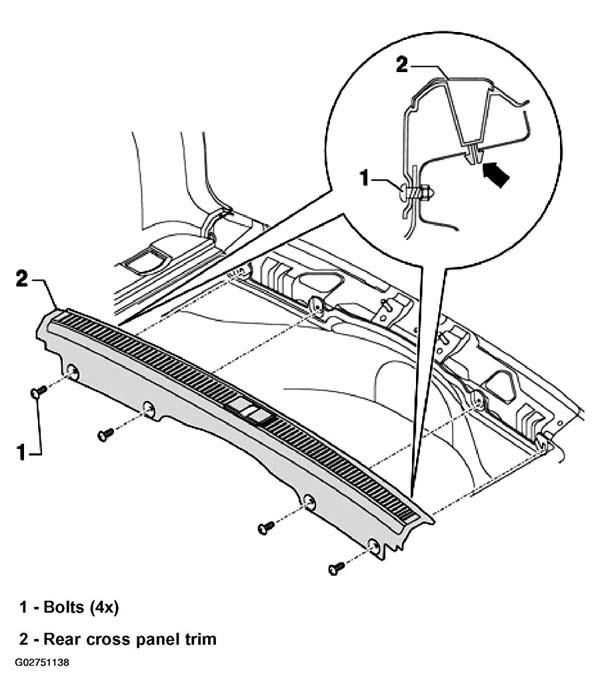

Fig 1: Identifying Rear Cross Panel Trim, Assembly Overview (Avant)

Courtesy of AUDI OF AMERICA, INC.
