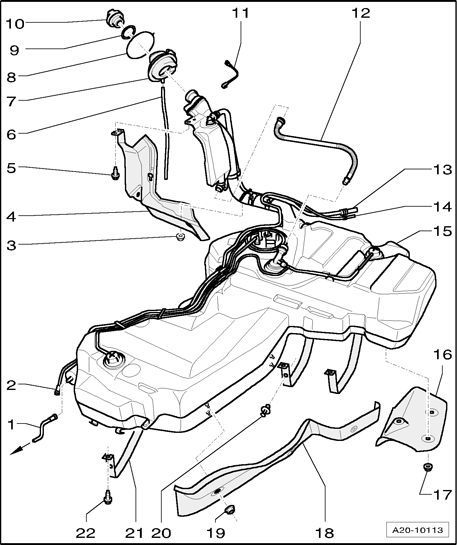

Fuel tank with attachments, assembly overview: Notes
1 - Fuel line
- From fuel filter
- To engine
- Do not kink
- To disconnect, press release button on connection piece
2 - Ventilation line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- Do not kink
- To disconnect, press release button on connection piece
- Clipped in on fuel tank
3 - 2 Nm
4 - Tire protection shield
- For fuel delivery connection
5 - 23 Nm
6 - Overflow hose
- Engage in wheelhousing
7 - Rubber gasket
8 - Circlip
9 - Seal
- Replace if damaged
10 - Cap
11 - Ground (GND) connection
- For discharging electrostatic charge
- Installed position/check requirements Installation position of Ground (GND) connection
- After installing, check electrical connection of metal ring at fuel filler tube to a bare area of chassis using Ohm meter - Specified value: approx. 0 Ω
12 - Ventilation line
13 - Ventilation line
- From gravity valve to EVAP canister
- To remove, press release ring on EVAP canister
14 - Ventilation line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- To remove, press release ring on EVAP canister
- Clipped in on fuel tank
15 - Fuel tank
- Removing and installing → Fuel tank with attachments, removing and installing
16 - Heat shield
- For fuel tank
17 - 2 Nm
18 - Heat shield
- For fuel tank
19 - 2 Nm
20 - Spreader clip
21 - Securing strap
- Observe varying lengths
22 - 23 Nm
