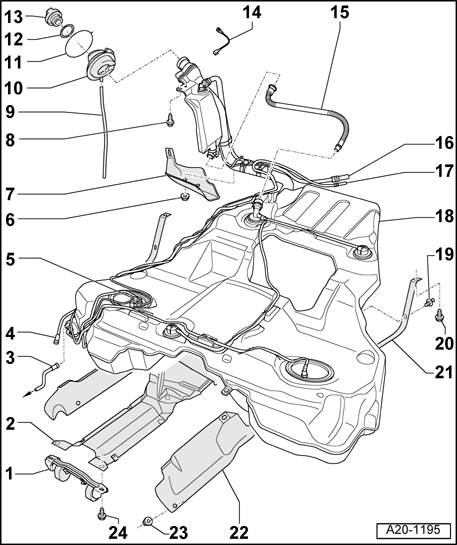

Fuel tank with attachments, component overview: Notes
1 - Bracket
- For exhaust system
2 - Carrier plate
3 - Fuel line
- From fuel filter
- To engine
- Do not kink
- To disconnect, press release button on connection piece
4 - Ventilation line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- Do not kink
- To disconnect, press release button on connection piece
- Clipped in on fuel tank
5 - Electrical harness connector
- For Fuel Tank Lock Switch F314
- Checking electrical → Fuel Tank Lock Switch F314 , checking
6 - 2 Nm
7 - Heat shield
- For fuel delivery connection
8 - 23 Nm
9 - Overflow hose
10 - Rubber gasket
11 - Circlip
12 - Seal
- Replace if damaged
13 - Cap
14 - Ground (GND) connection
- For discharging electrostatic charge
- Installed position/check requirements Installation position of Ground (GND) connection
- After installing, check electrical connection of metal ring at fuel filler tube to a bare area of chassis using Ohm meter - Specified value: approx. 0Ω
15 - Ventilation line
16 - Ventilation line
- From gravity valve to EVAP canister
- To remove, press release ring on EVAP canister
17 - Ventilation line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- To remove, press release ring on EVAP canister
- Clipped in on fuel tank
18 - Fuel tank
- Removing and installing → Fuel tank with attachments, removing and installing
19 - Spreader clip
20 - 23 Nm
21 - Securing strap
22 - Heat shield
- For fuel tank
23 - 2 Nm
24 - 23 Nm
