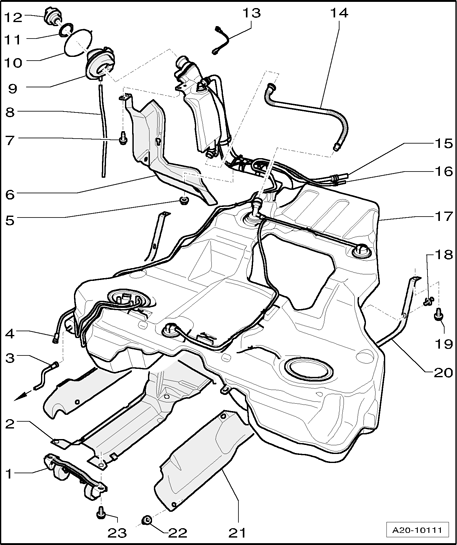

Fuel tank with attachments, assembly overview: Notes
1 - Bracket
- For exhaust system
2 - Carrier plate
3 - Fuel line
- From fuel filter
- To engine
- Do not kink
- To disconnect, press release button on connection piece
4 - Ventilation line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- Do not kink
- To disconnect, press release button on connection piece
- Clipped in on fuel tank
5 - 2 Nm
6 - Tire protection shield
- For fuel delivery connection
7 - 23 Nm
8 - Overflow hose
9 - Rubber gasket
10 - Circlip
11 - Seal
- Replace if damaged
12 - Cap
13 - Ground (GND) connection
- For discharging electrostatic charge
- Installed position/check requirements Installation position of Ground (GND) connection
- After installing, check electrical connection of metal ring at fuel filler tube to a bare area of chassis using Ohm meter - Specified value: approx. 0Ω
14 - Ventilation line
15 - Ventilation line
- From gravity valve to EVAP canister
- To remove, press release ring on EVAP canister
16 - Ventilation line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- To remove, press release ring on EVAP canister
- Clipped in on fuel tank
17 - Fuel tank
- Removing and installing → Fuel tank with attachments, removing and installing
18 - Spreader clip
19 - 23 Nm
20 - Securing strap
21 - Heat shield
- For fuel tank
22 - 2 Nm
23 - 23 Nm
