Step 8: Diagnosis of aging of oxygen sensors upstream of catalytic converter: Condition
WARNING: This page is about a different car, the 2003 Audi RS 6. However, it is still accessible from the selected car via links, so may be relevant.
- Display in zone 2 must be greater than 250 °C then
- Engine idling
- Check display in zone -4-.
DISPLAY GROUP 034: OXYGEN SENSOR UPSTREAM OF CATALYTIC CONVERTER AGING (BANK 1)
| Display zones | ||||
|---|---|---|---|---|
| 1 | 2 | 3 | 4 | |
| Display group 034: Oxygen sensor upstream of catalytic converter aging (bank 1) | ||||
| Display | xxx rpm | xxx °C | x.x s | Test ON |
| Significance | Engine speed | Exhaust gas temperature | Period of oxygen sensor upstream of catalytic converter | Diagnosis status |
| Operating range | min.: 550 rpm max.: 6700 rpm |
70...850 °C | 0.0...3.0 seconds | Test OFF Test ON B1-S1 OK B1-S1 not OK |
| Specification | 730...790 rpm | Greater than 250 °C | 0.2...0.8 seconds | B1-S1 OK |
| Note | If "B1-S1 not OK" is displayed: Interrogate fault memory, see FAULT MEMORY, INTERROGATING AND ERASING | |||
If specification "B1 -S1 OK" is obtained in display zone 4:
- Touch > key.
Indicated on VAS 5051:

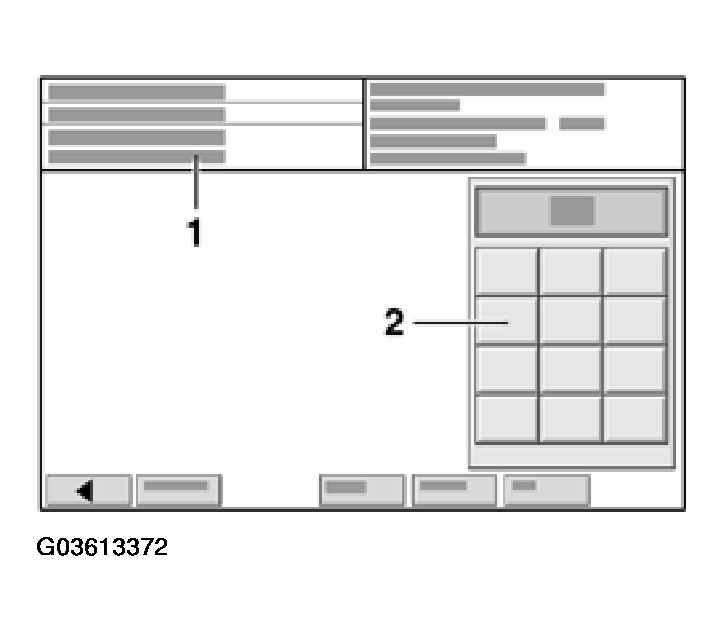

Fig 1: Function Display VAS 5051 - Generating Readiness Code, Diagnosis Of Aging Of Oxygen Sensors Upstream Of Catalytic Converter (3 Of 4)
- - Enter display group
- Use keypad -2- to enter "035" for "Display group number 035" and confirm by touching Q key.
Indicated on VAS 5051:

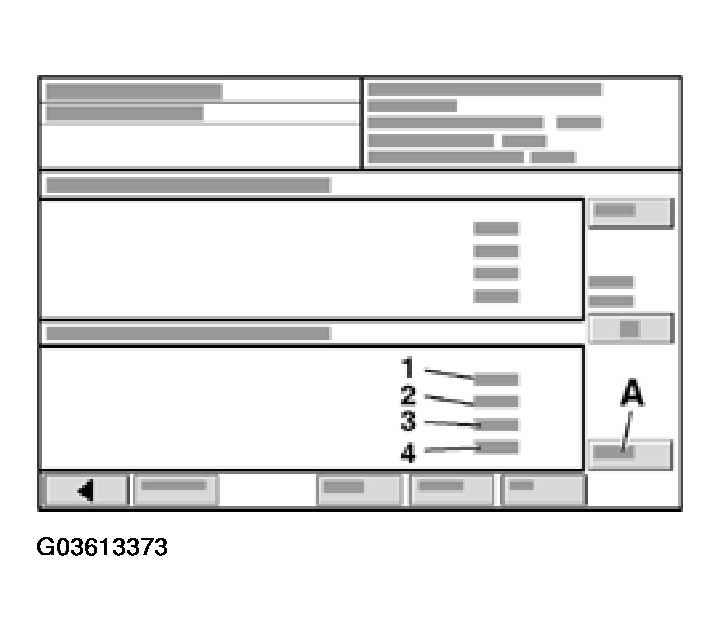

Fig 2: Function Display VAS 5051 - Generating Readiness Code, Diagnosis Of Aging Of Oxygen Sensors Upstream Of Catalytic Converter (4 Of 4)
- Activate basic setting by touching key -A-.
- Display in zone 2 must be greater than 250 °C then
- Engine idling
- Check display in zone -4-.
"B2-S1 OK" may also be displayed immediately. Then continue with the next test step. This also applies to all further test steps.
DISPLAY GROUP 035: OXYGEN SENSOR UPSTREAM OF CATALYTIC CONVERTER AGING (BANK 2)
| Display zones | ||||
|---|---|---|---|---|
| 1 | 2 | 3 | 4 | |
| Display group 035: Oxygen sensor upstream of catalytic converter aging (bank 2) | ||||
| Display | xxx rpm | xxx °C | x.x s | Test ON |
| Significance | Engine speed | Exhaust gas temperature | Period of oxygen sensor upstream of catalytic converter | Diagnosis status |
| Operating range | min.: 550 rpm max.: 6700 rpm |
70...850 °C | 0.0...3.0 seconds | Test OFF Test ON B2-S1 OK B2-S1 not OK |
| Specification | 730...790 rpm | Greater than 250 °C | 0.2...0.8 seconds | B2-S1 OK |
| Note | If "B2-S1 not OK" is displayed: Interrogate fault memory, see FAULT MEMORY, INTERROGATING AND ERASING | |||
If specification "B2 -P1 OK" is obtained in display zone 4:
- Touch > key.
- Proceed with next step.
