Read Measuring Value Block (function 08)
>>
Display group 024
Display group 024

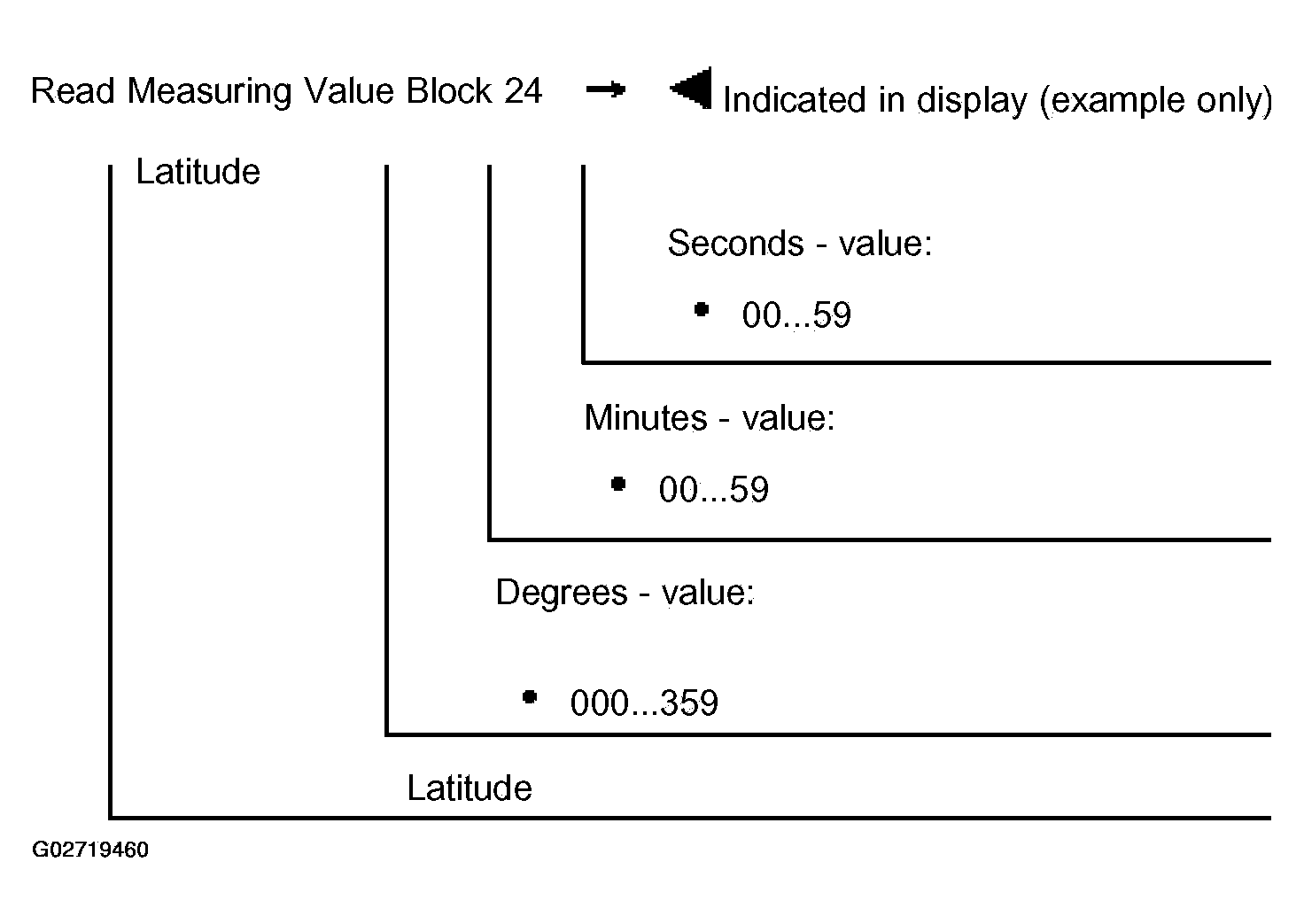

Fig 1: Display Group 024 - Telematics
Courtesy of AUDI OF AMERICA, INC.
NOTE:
This display group has no meaning for service.
Courtesy of AUDI OF AMERICA, INC.
