Display group 003

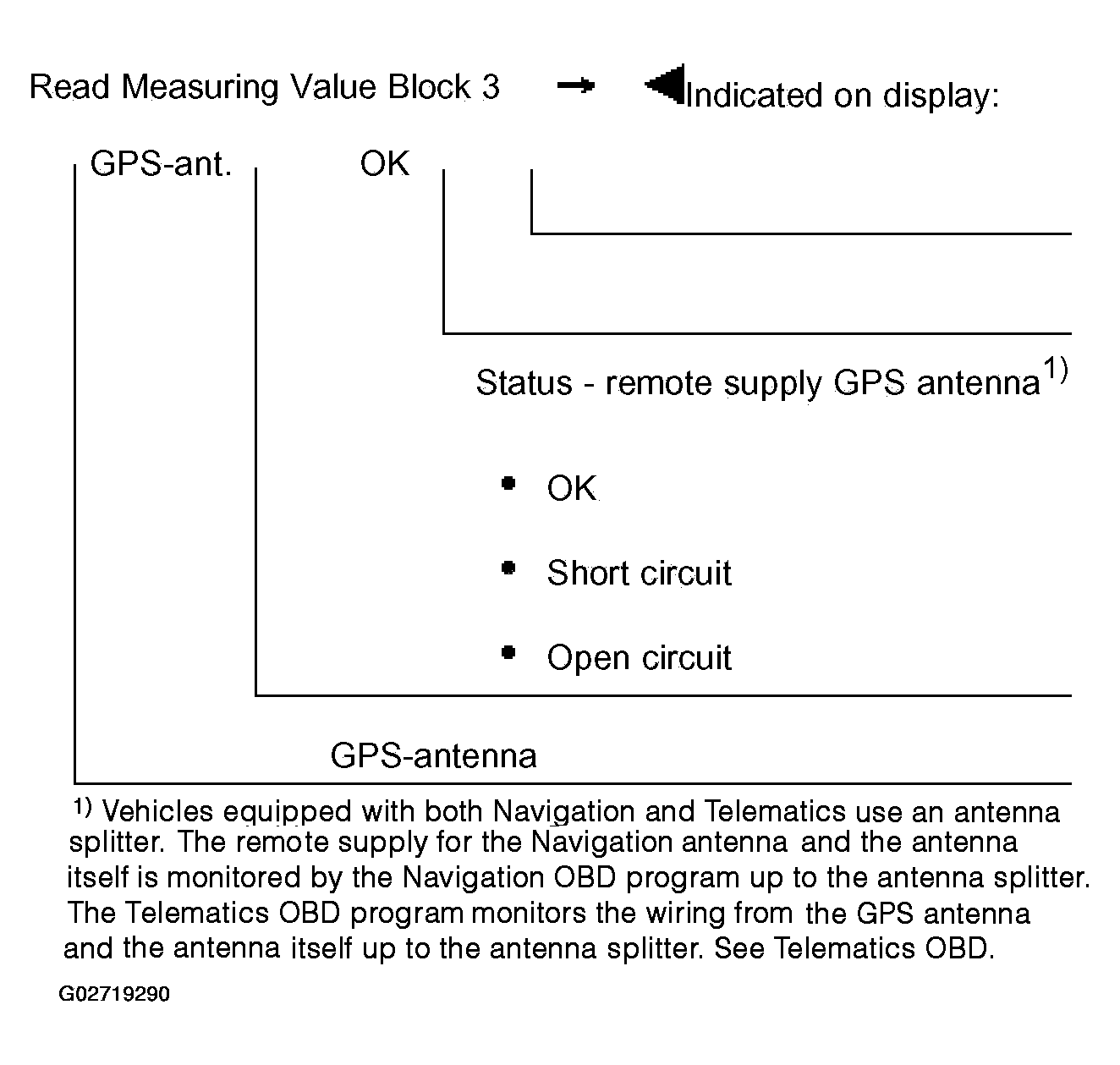

Fig 1: Display Group 003 - Navigation System IV, From 2002

Courtesy of AUDI OF AMERICA, INC.

With DTC 00862, the number of satellites being received must first be determined. In an unobstructed area a minimum of 4 satellites must be received. From the Navigation unit menu, select "Settings" and call-up "GPS-data" to determine the current satellite activity". See Navigation system owner's guide.
