Strut Assembly: Reassembly

To assemble, reverse disassembly procedure. Ensure spring ends are against rubber stops. See Fig 1 .

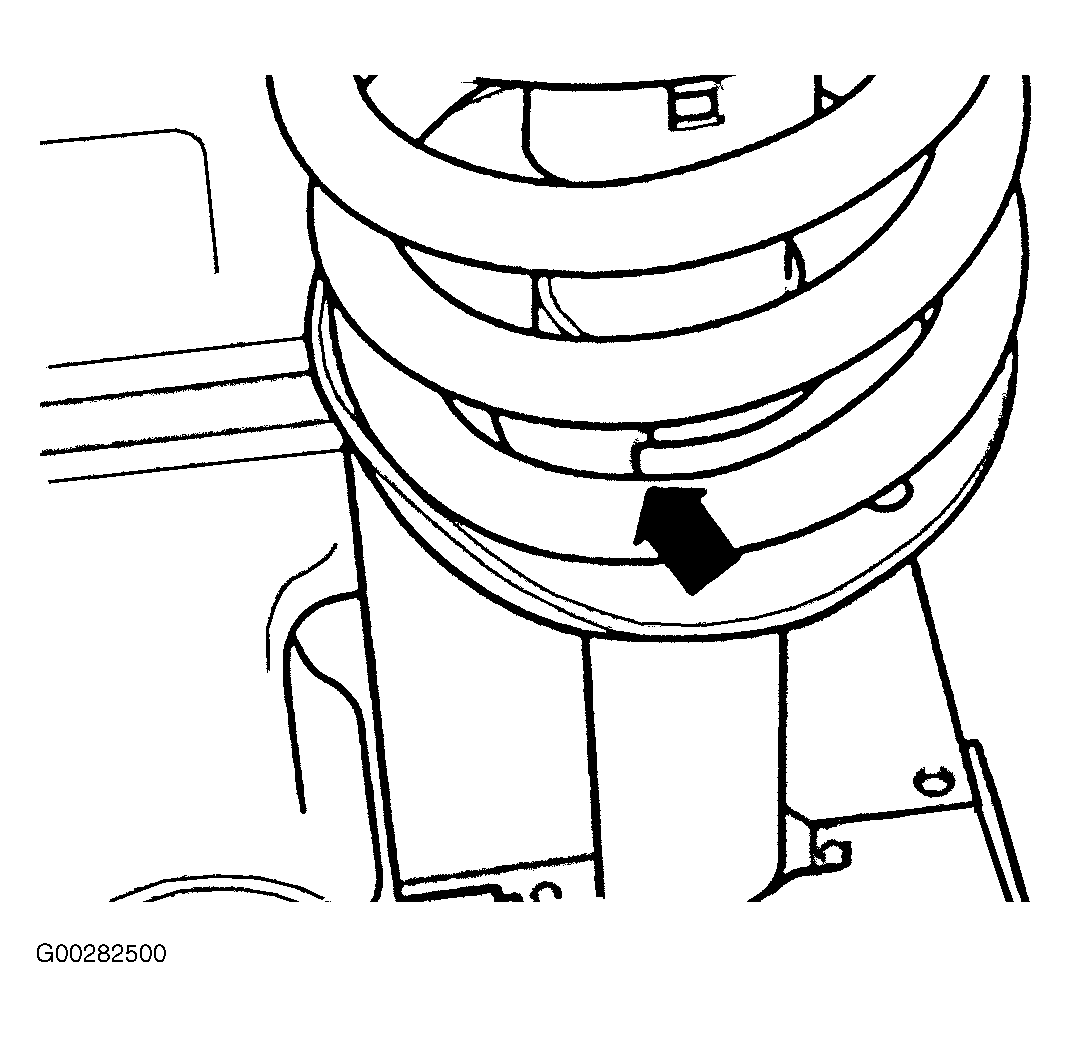

Fig 1: Positioning Spring In Strut Assembly (Lower Spring End Shown)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Ensure that upper strut mount is aligned as specified. See Fig 2 . Using NEW piston rod nut. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

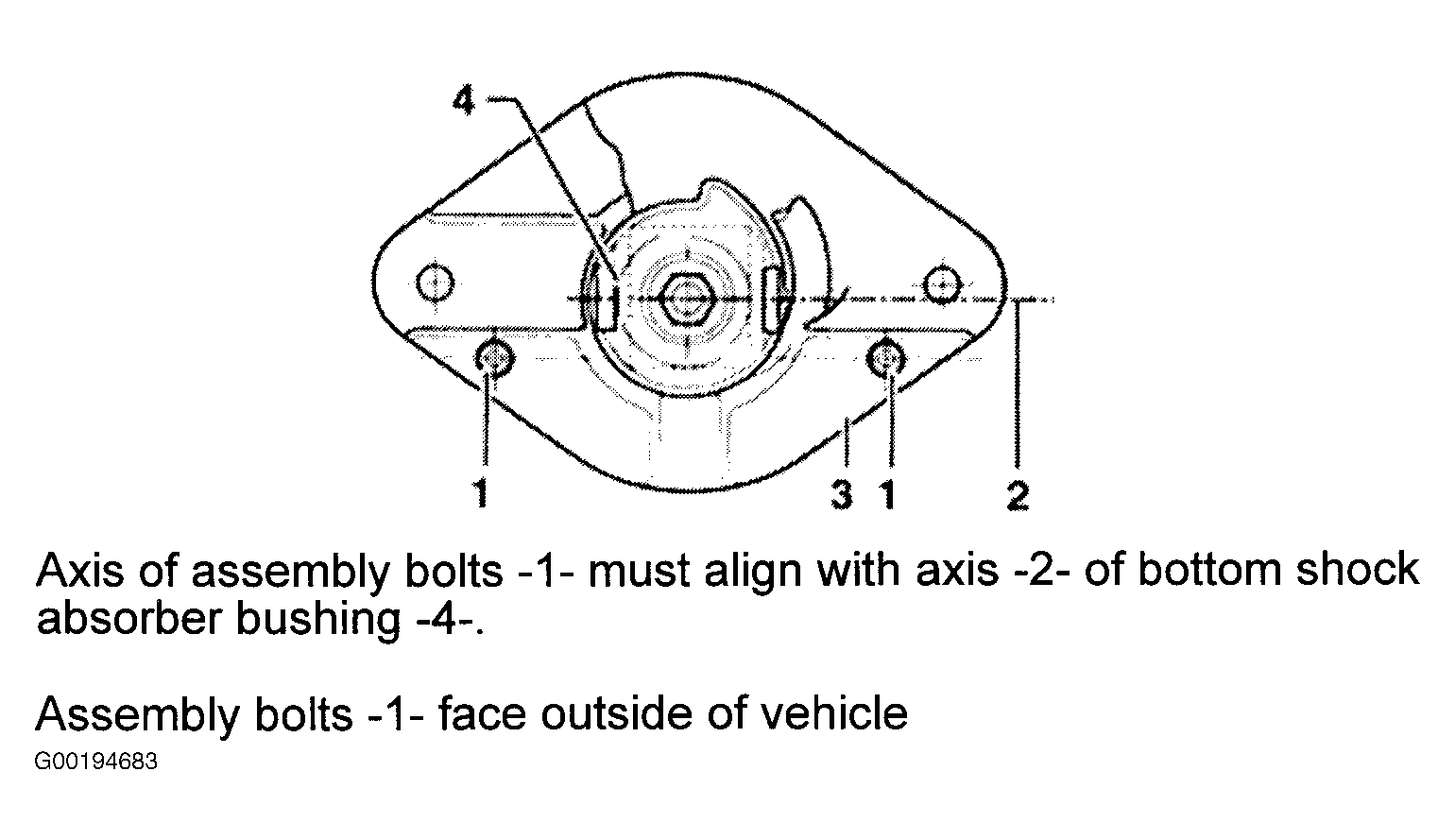

Fig 2: Checking Alignment Of Upper Strut Mount

Courtesy of AUDI OF AMERICA, INC.
