Suspension - Rear, AWD: Description

Rear suspension consists of a rear subframe, upper and lower control arms, lower track rods, wheel bearing housing, stabilizer bar with end links and strut assemblies. See Fig 1 -Fig 3 .

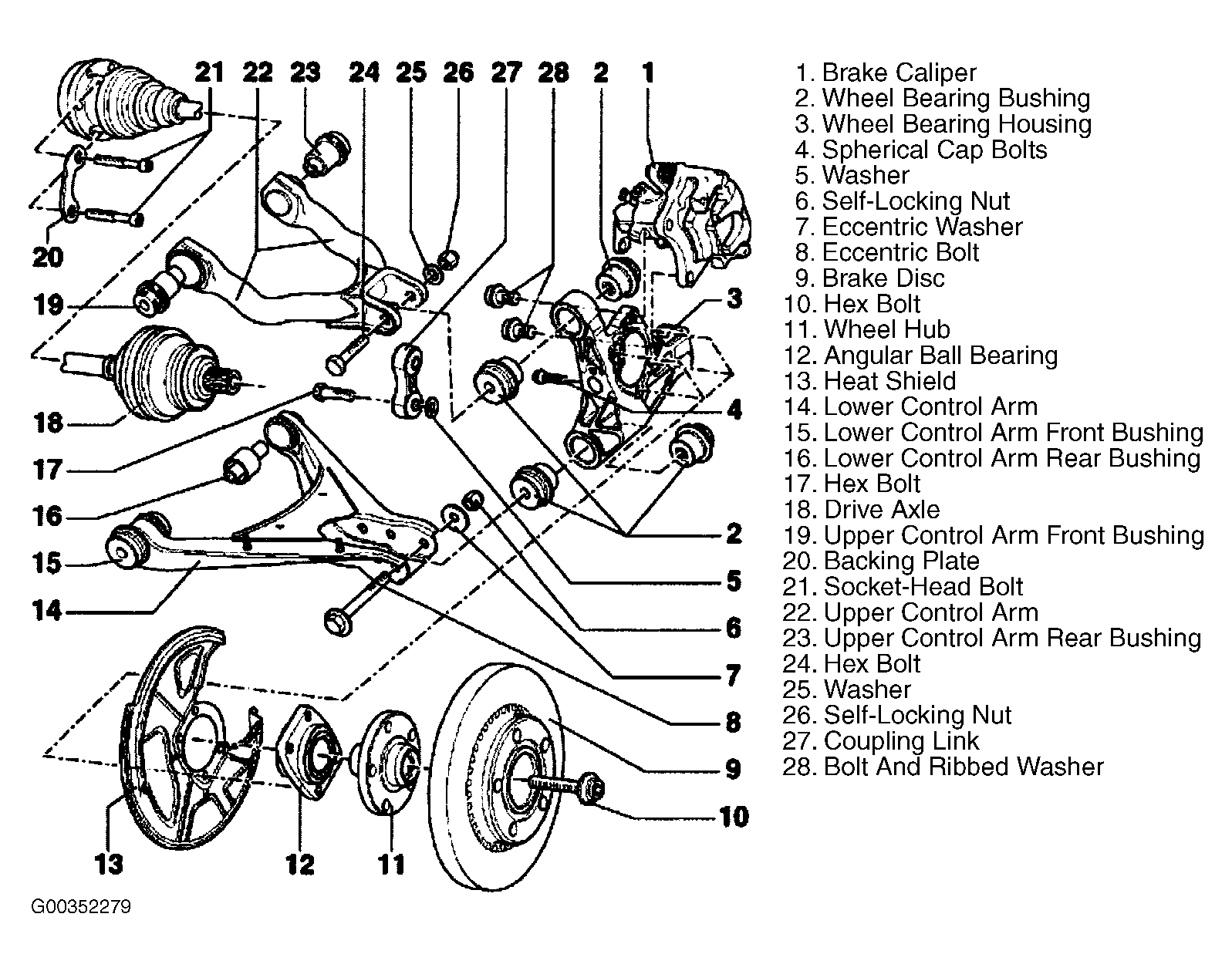

Fig 1: Exploded View Of Rear Suspension

Courtesy of AUDI OF AMERICA, INC.

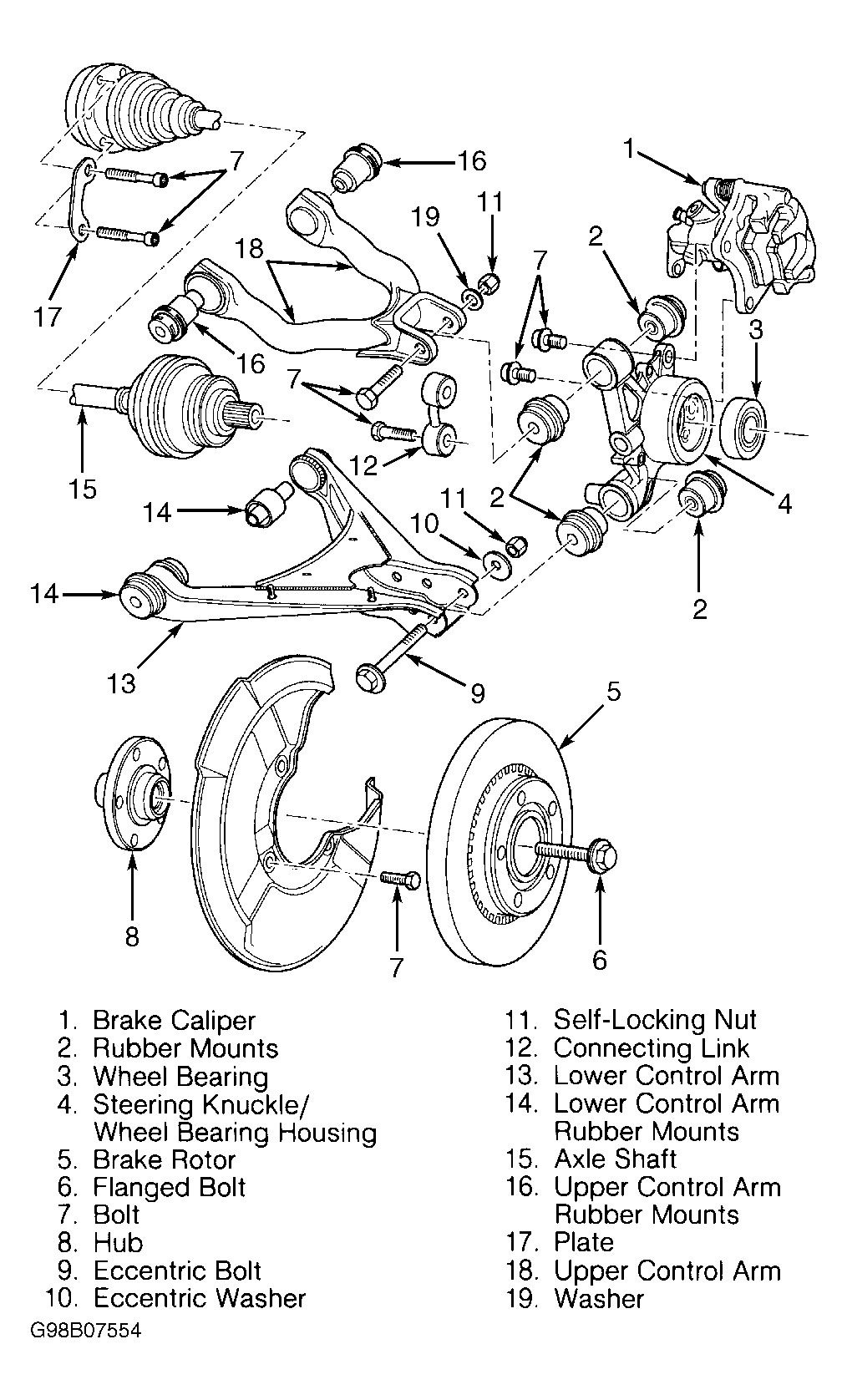

Fig 2: Exploded View Of Rear Suspension Control Arms (Steel)

Courtesy of AUDI OF AMERICA, INC.

Fig 3: Exploded View Of Rear Suspension Control Arms (Aluminum)

Courtesy of AUDI OF AMERICA, INC.
