Air cleaner housing, cleaning; air cleaner element, replacing

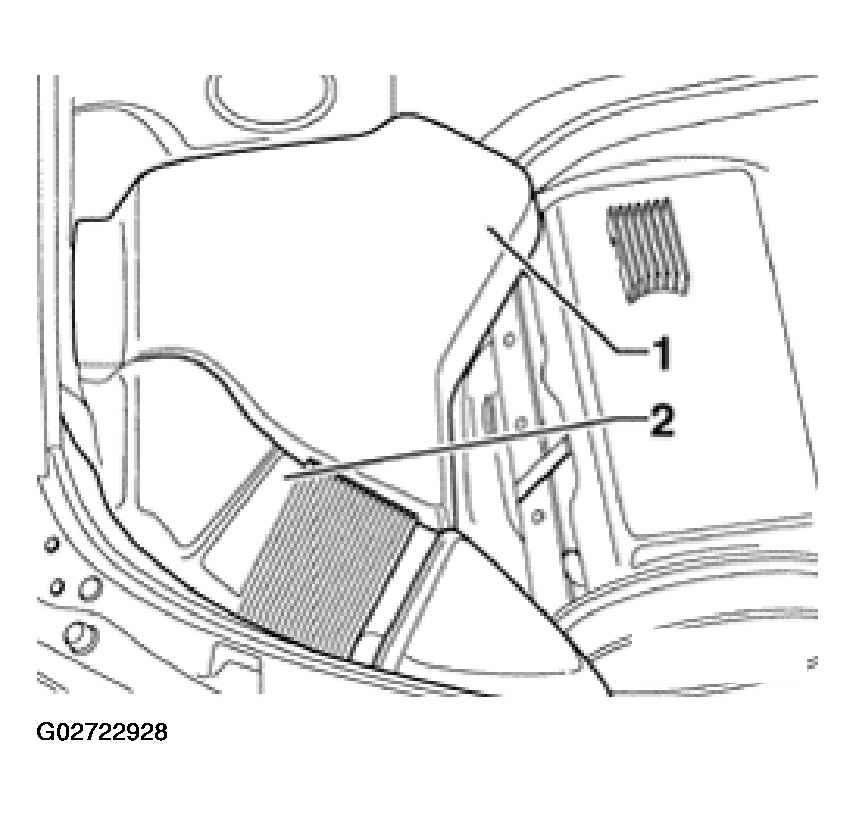

- Remove cover -1- (where applicable) upward.
- Remove intake air hose -2-.

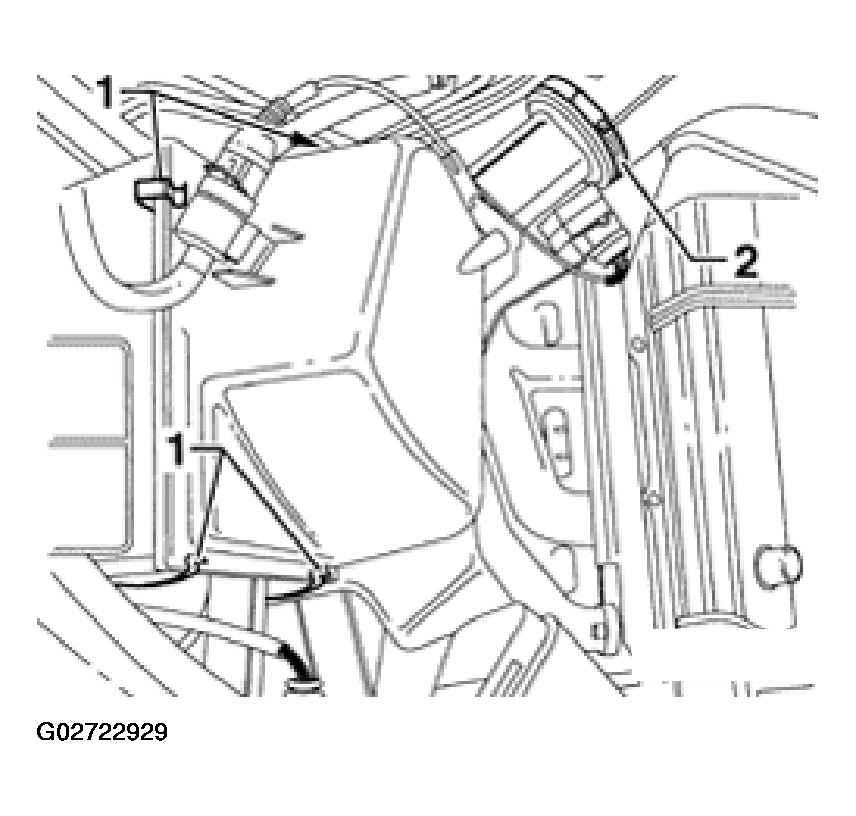

- Loosen clamps -1-.
- Swing upper part of air cleaner housing to side, if necessary remove intake air hose -2-.
- Remove old air cleaner element.CAUTION: Always comply with disposal regulations.
- Clean air cleaner housing and install new air cleaner element.
