Removing left turbocharger: Notes

Slide back heat insulation hose in direction of arrow.

Fig 1: Sliding Back Heat Insulation Hose
Courtesy of AUDI OF AMERICA, INC.

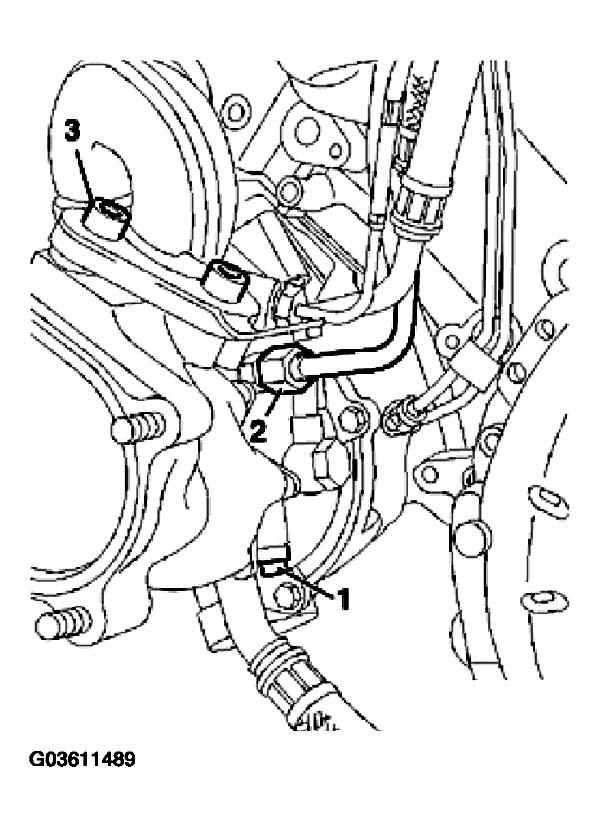

Disconnect vacuum line -1-.
Remove lower part of pressure line -2-.
Unbolt pressure hose -3- from turbocharger.
Loosen vacuum line -1-. See Fig 2.
Loosen vacuum hose -2-.
Disconnect line -3- to right turbocharger.

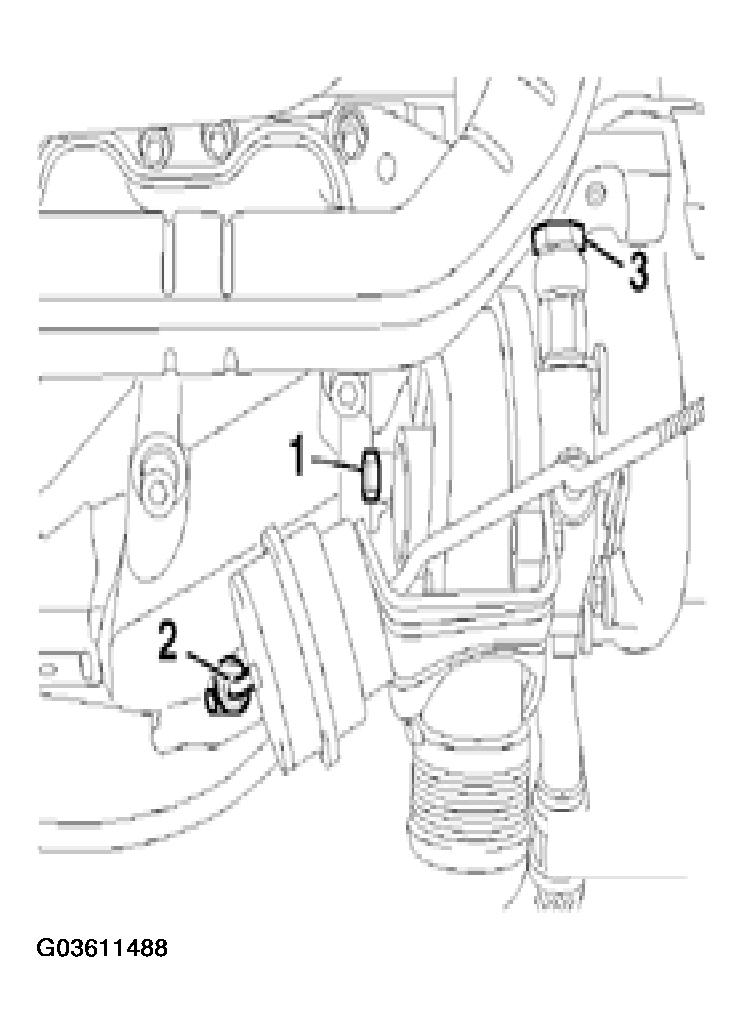

Fig 2: Locating Vacuum Lines

Courtesy of AUDI OF AMERICA, INC.

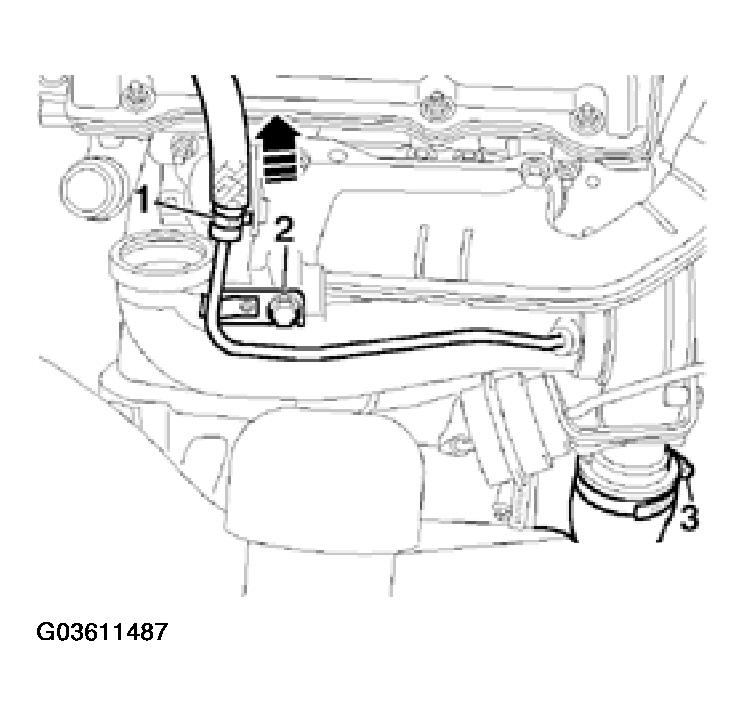

Fig 3: Unbolting Oil Return Line From Turbocharger
