Removing right-hand turbocharger: Notes

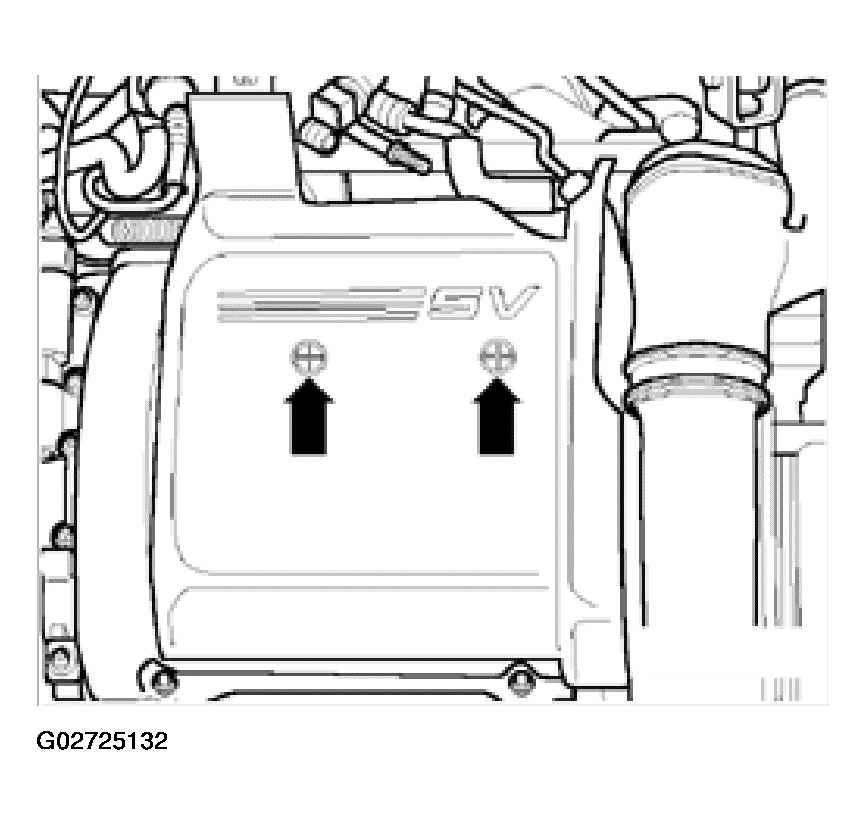

Remove cover panel from right-hand cylinder head cover - arrows-.

Fig 1: Removing Cover Panel From Right-Hand Cylinder Head Cover
Courtesy of AUDI OF AMERICA, INC.

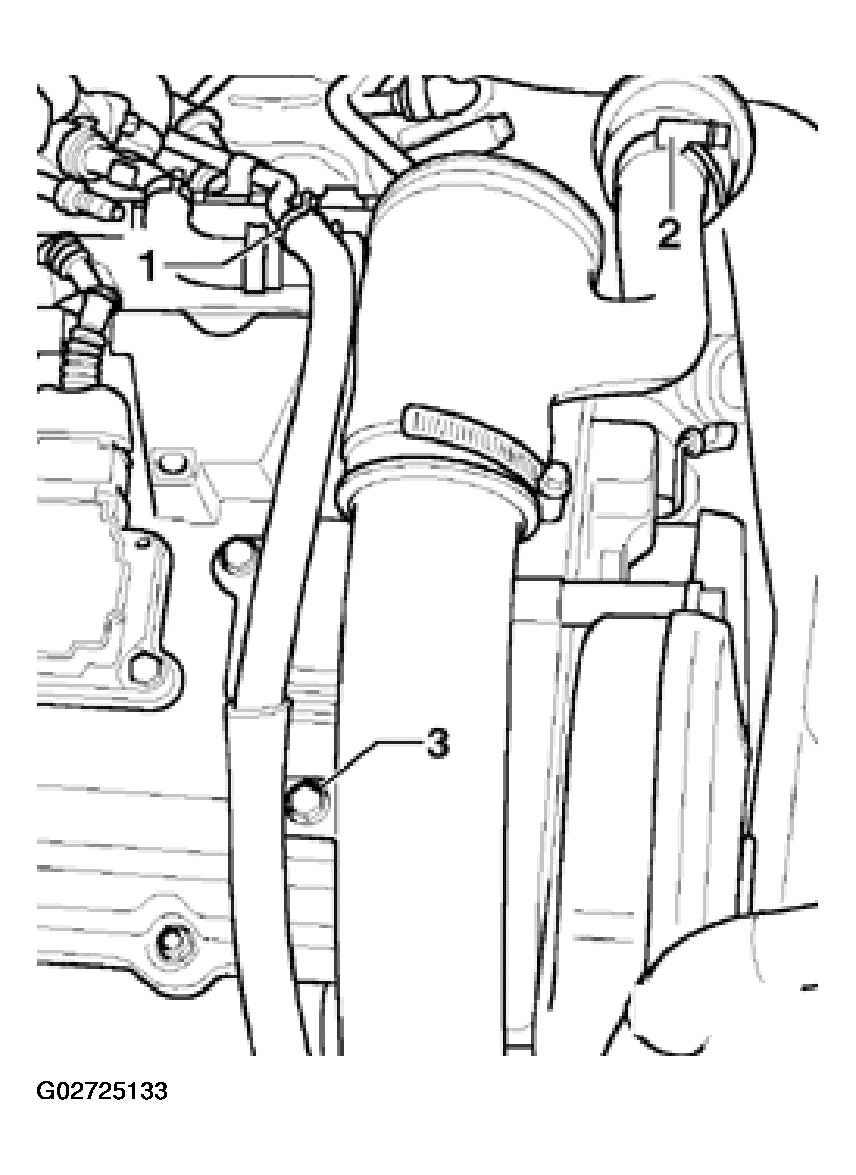

Disconnect hose -1-.
Disconnect hose -2-. See Fig 2.
Unbolt upper section of intake line -3-.
NOTE: Plug lower section of intake line.

Fig 2: Disconnecting Hose & Unbolting Upper Section Of Intake Line
Courtesy of AUDI OF AMERICA, INC.

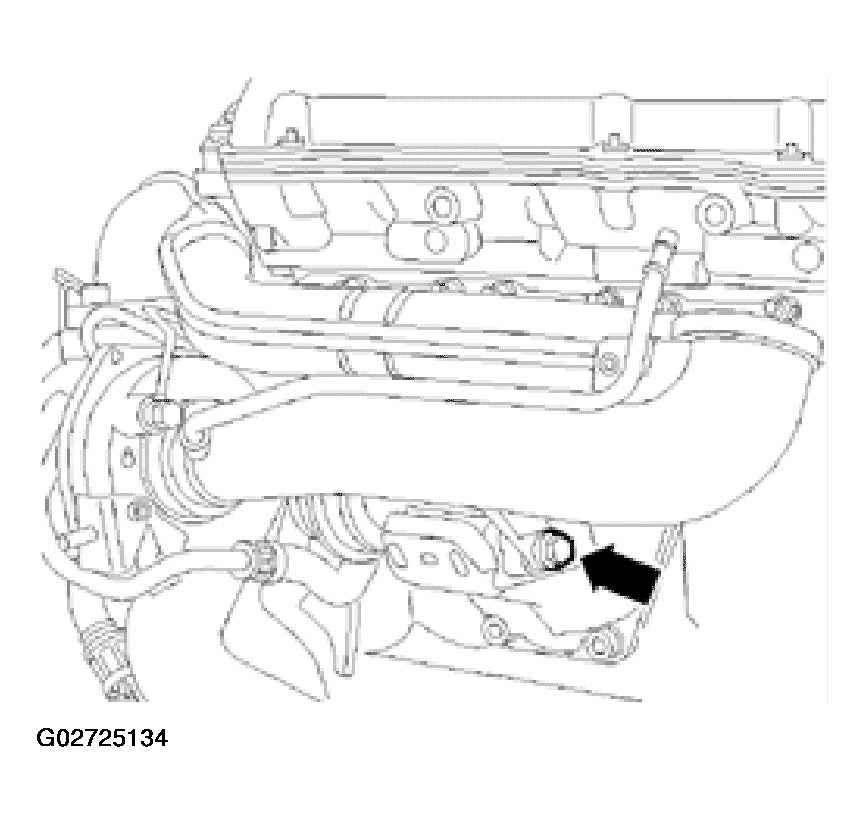

Remove lower section of intake line -arrow-.

Fig 3: Removing Lower Section Of Intake Line
Courtesy of AUDI OF AMERICA, INC.

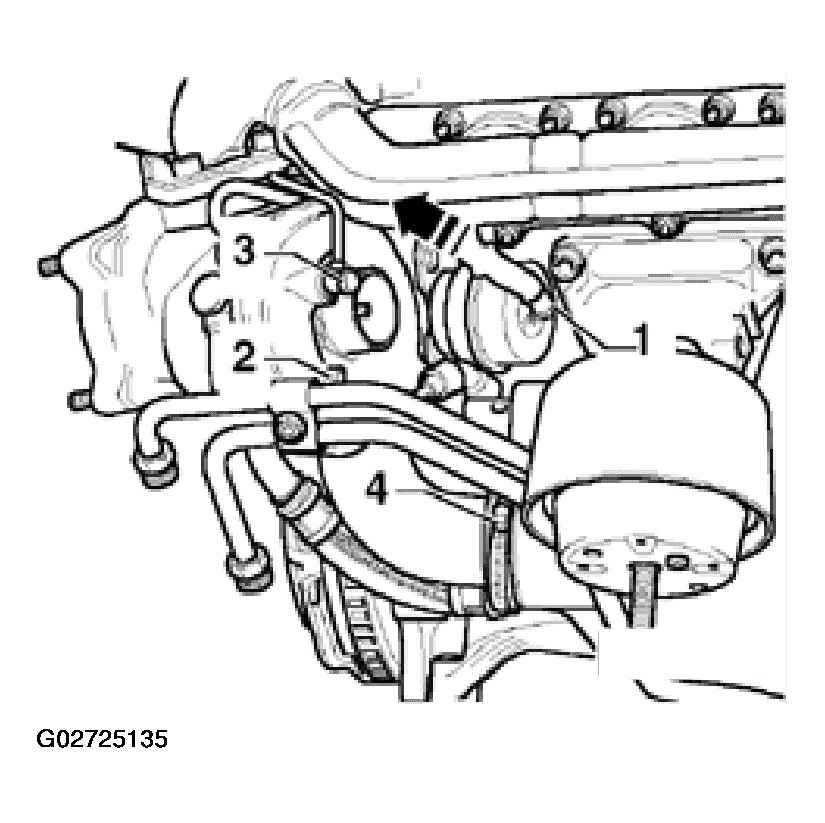

Push back heat insulation hose in direction of arrow. See Fig 4.
Disconnect vacuum hose -1-.
Unbolt bracket -2- with transmission oil lines.
Disconnect line -3-.
Disconnect pressure hose -4- from turbocharger.

Fig 4: Disconnecting Pressure Hose -4- From Turbocharger
Courtesy of AUDI OF AMERICA, INC.

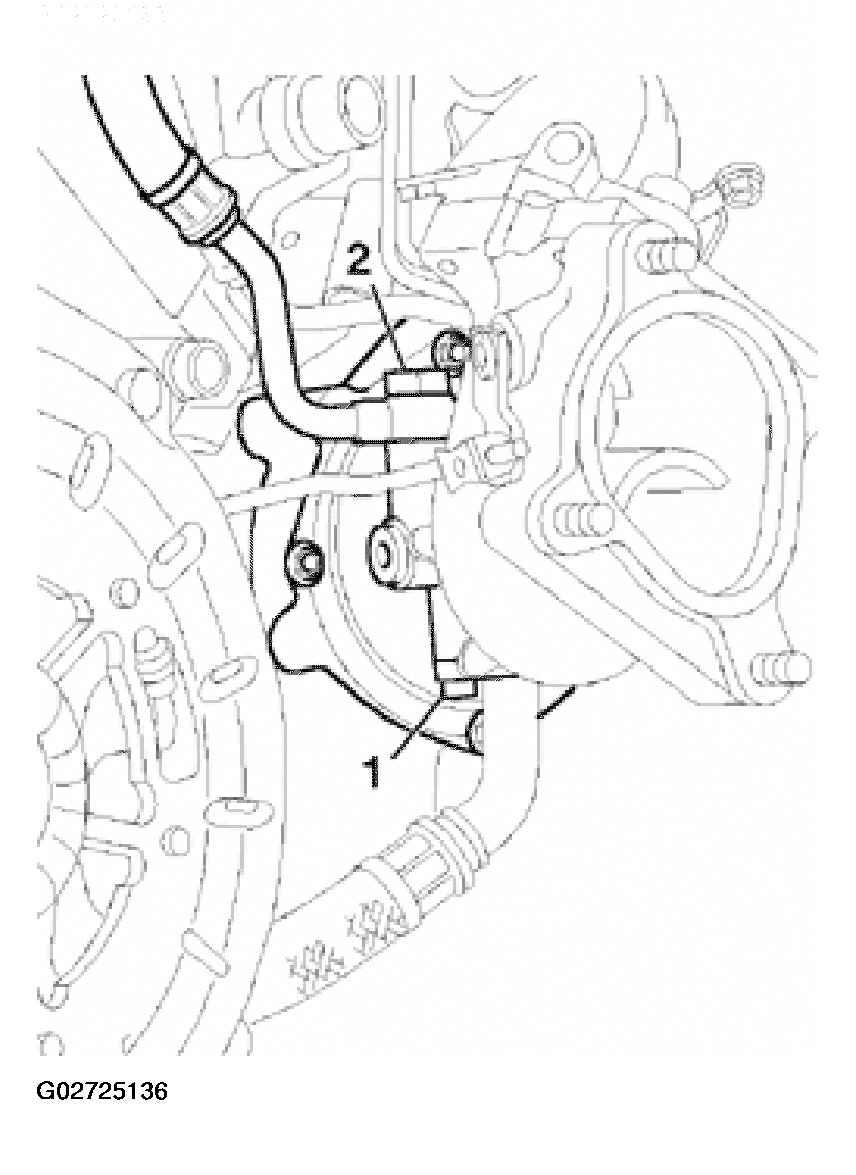

Disconnect oil return line -1-.
Disconnect water line -2-.

Fig 5: Disconnecting Oil Return Line And Water Line From Turbocharger
Courtesy of AUDI OF AMERICA, INC.

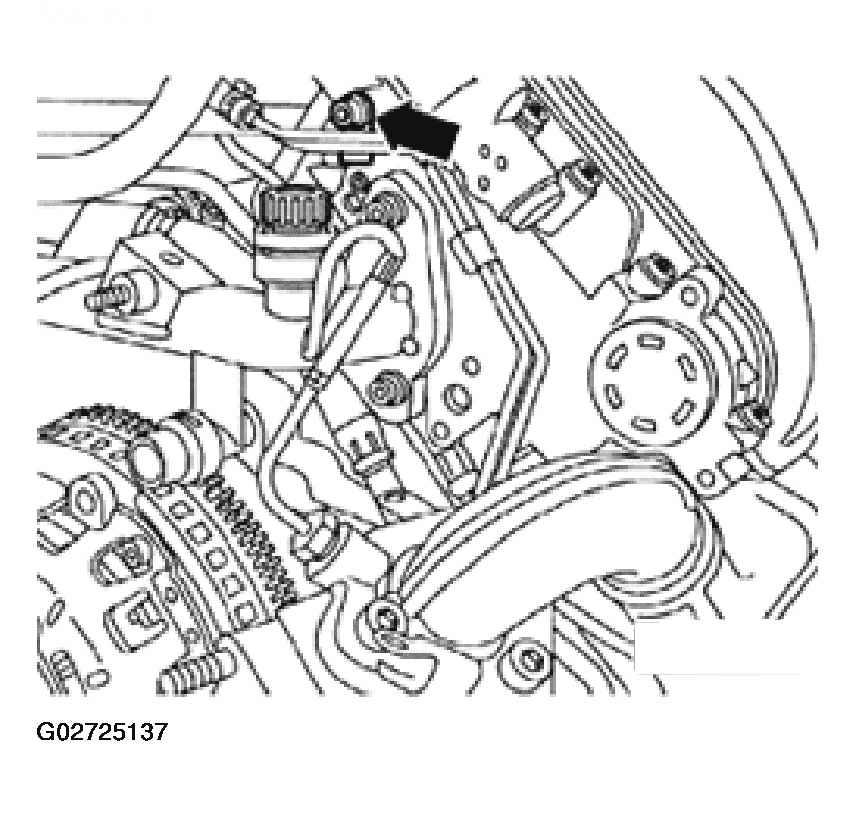

Disconnect hose -arrow- from cylinder head.

Fig 6: Disconnecting Hose From Cylinder Head
Courtesy of AUDI OF AMERICA, INC.

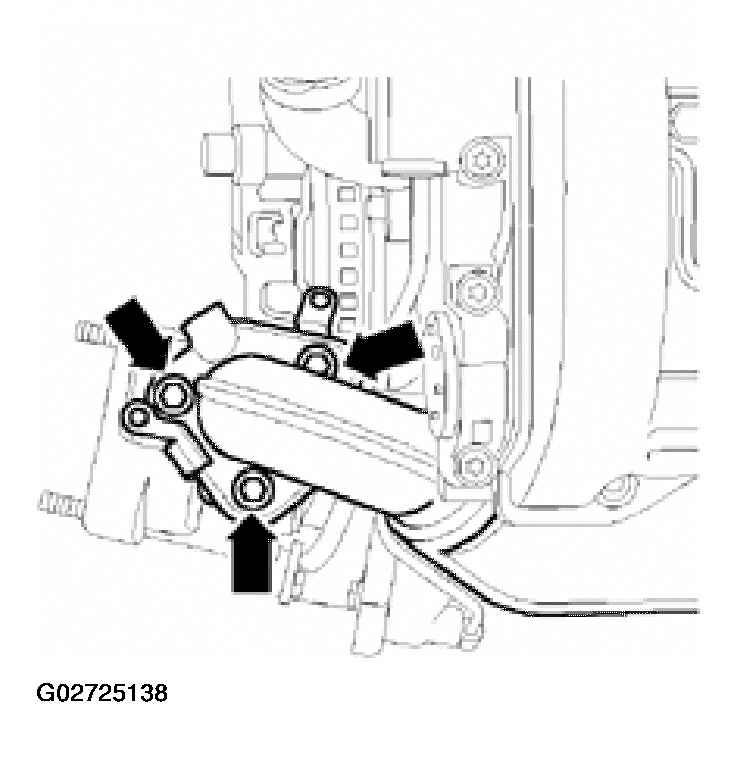

Remove turbocharger -arrows-.

Fig 7: Removing Turbocharger Bolts

Courtesy of AUDI OF AMERICA, INC.
