Read measuring value block: display group 4

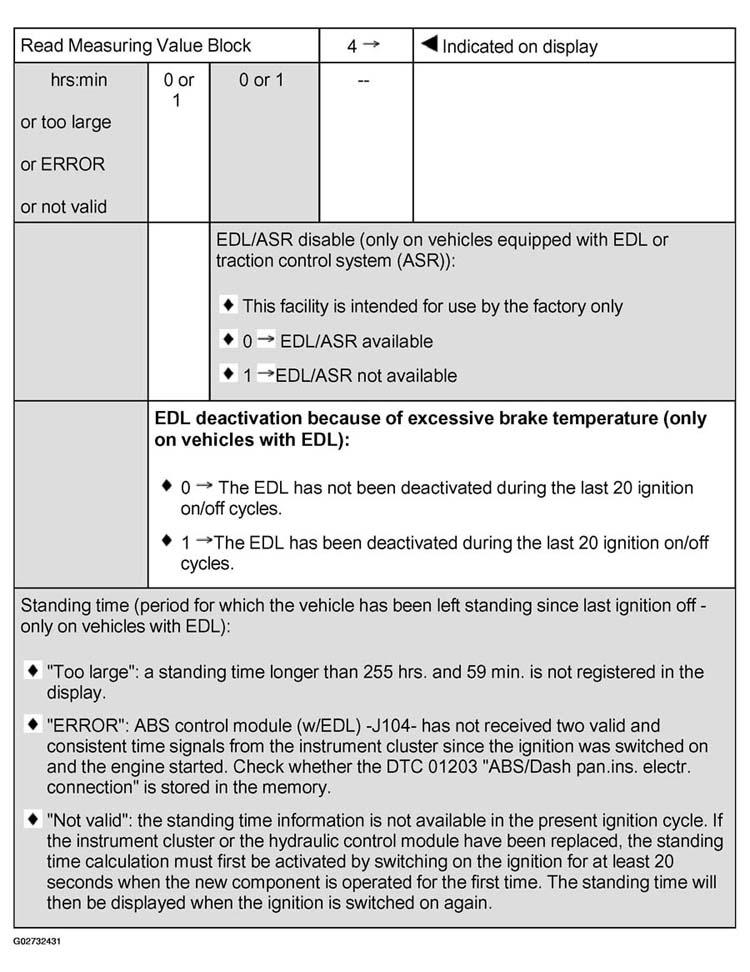

Fig 1: Read Measuring Value Block Chart (Display Group 4)

G02732431

Courtesy of AUDI OF AMERICA, INC.
