Read measuring value block: display group 2

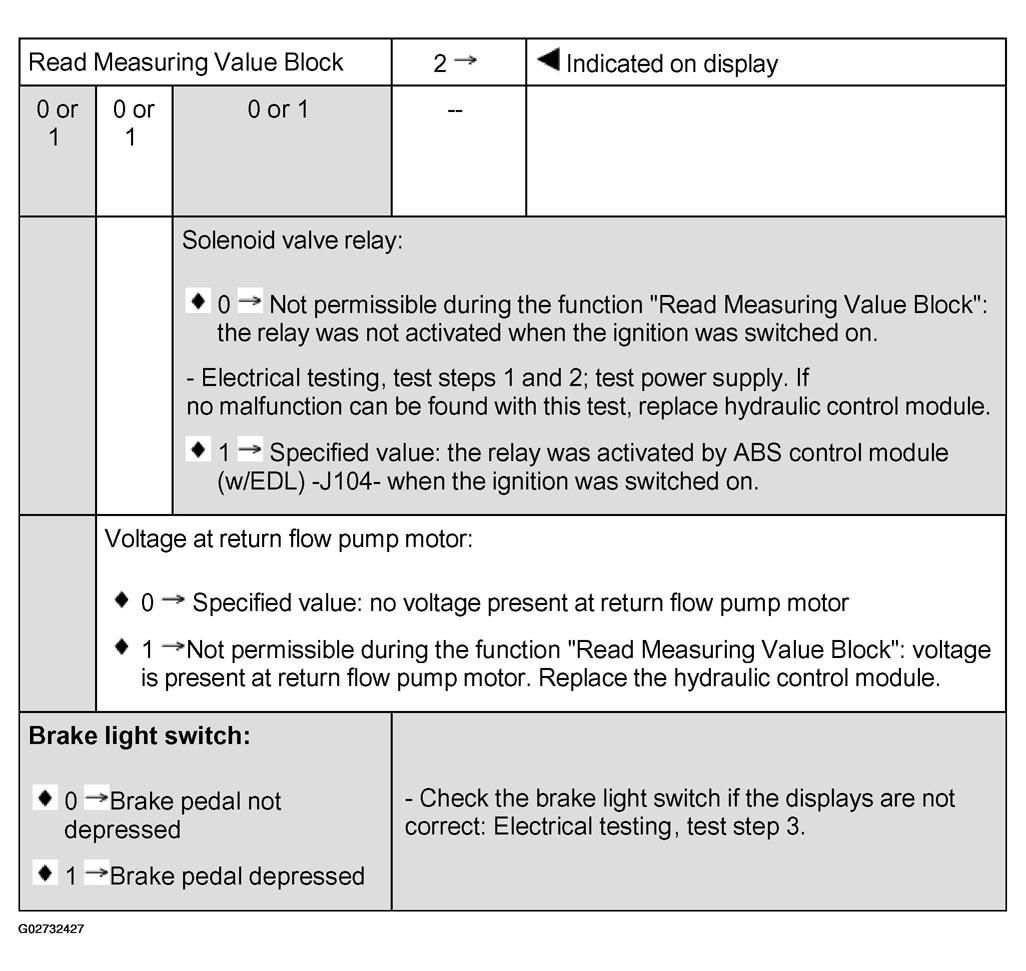

Fig 1: Read Measuring Value Block Chart (Display Group 2)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .

NOTE: The display group numbers can be selected in sequence by pressing buttons -1- and -3- ((VAG 1551 scan tool) or buttons uparrow and downarrow ((VAG 1552 scan tool).

Press button -C- in order to enter the display group number manually.

Indicated on display

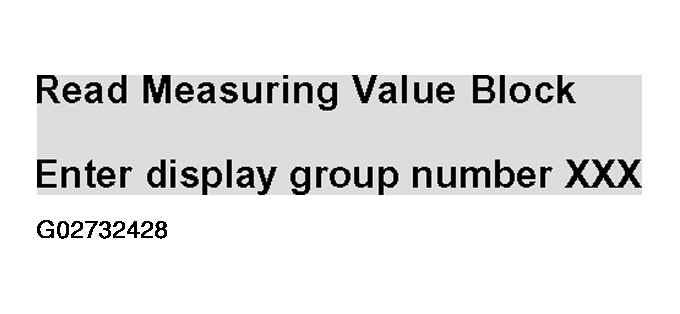

Fig 2: VAG 1551 Scan Tool Display - Enter Display Group Number XXX

Courtesy of AUDI OF AMERICA, INC.

NOTE: For Display Group 3:

If you wish to read out the display zones for engine speed and actual engine torque with the engine running, you must first interrupt the diagnostic link between the scan tool and the control module using the function "End Output". See ENDING OUTPUT . Then start the engine and set up the diagnostic link between scan tool and control module once again.

Press buttons -0- and -8- for the function "Read Measuring Value Block".
Press -Q- button to confirm input.
Press buttons -0-, -0- and -3-.
Press -Q- button to confirm input.
