Read Measuring Value Block (function 08)

The control module can supply test data (measured values). These measured values can provide information about the operational condition of the system and the sensors connected to it. In many cases the data supplied can be used to help trace and repair malfunctions. The test data provided by the Bosch 5.3 ABS/EDL are grouped in four Display Groups, which can be called up via Display Group numbers.

Observe the relevant safety precautions when road testing the vehicle. See TROUBLESHOOTING ABS AND ESP, SAFETY PRECAUTIONS AND GENERAL NOTES .
Connect VAG 1551 scan tool and select address word 03 for "Brake electronics". See VAG 1551 SCAN TOOL, CONNECTING AND ENTERING ADDRESS WORD .

NOTE:

When the printer is switched on, the contents of the display will be printed out on the scan tool log.
When reading measured value block, also check wiring and connectors for intermittent loose contacts.

Check the control module version. See CHECK CONTROL MODULE VERSIONS (FUNCTION 01) and press --> button.

Indicated on display

Fig 1: VAG 1551 Scan Tool Display - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -8- for the function "Read Measuring Value Block".

Indicated on display:

Fig 2: VAG 1551 Scan Tool Display - 08 Read Measuring Value Block

Courtesy of AUDI OF AMERICA, INC.

Press -Q- button to confirm input.

Indicated on display

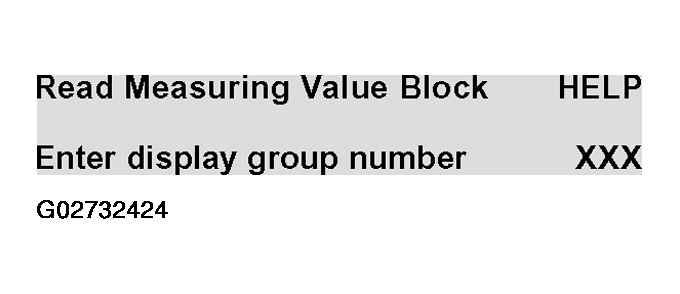

Fig 3: VAG 1551 Scan Tool Display - Enter Display Group Number

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0-, -0- and -1-.
Press -Q- button to confirm input.
