ABS/EDL/ASR coding table

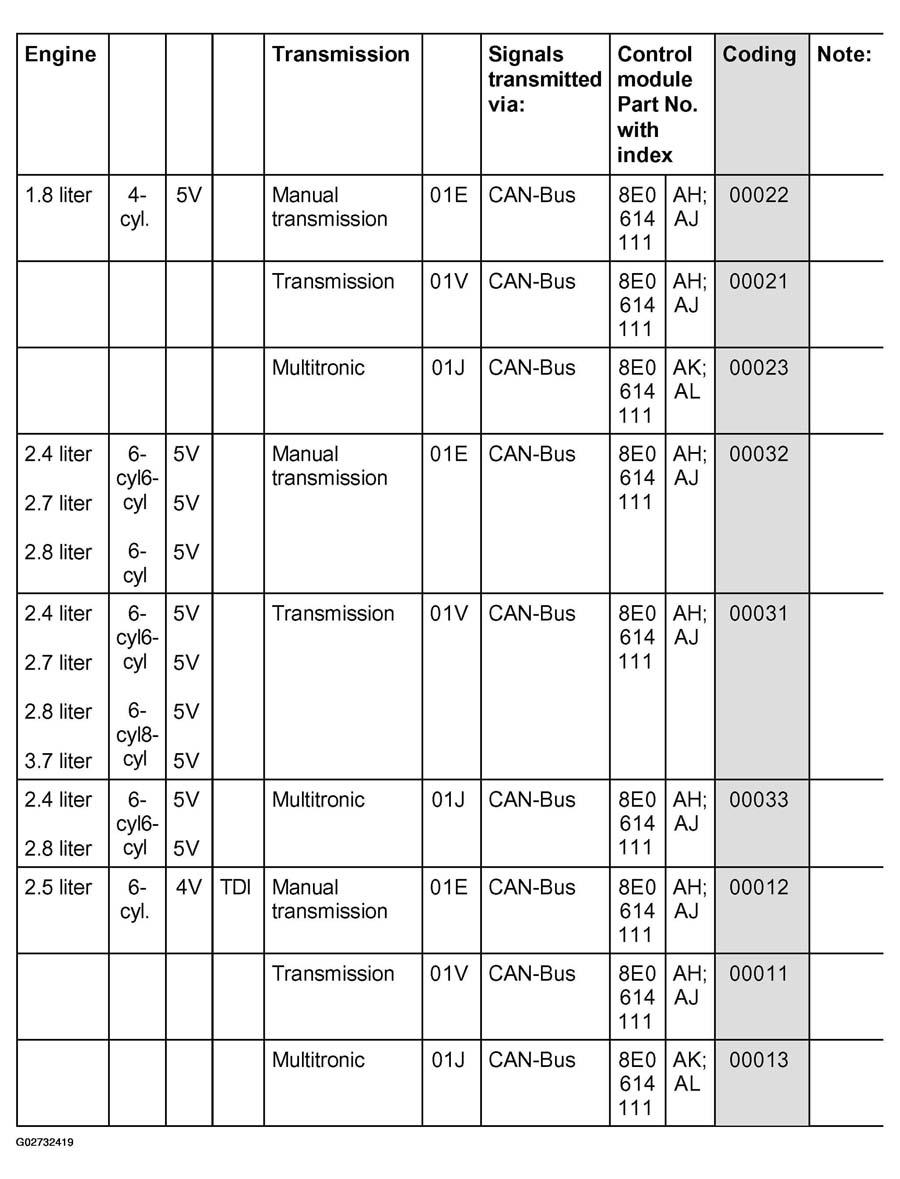

Fig 1: ABS, EDL And ASR Coding Chart (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

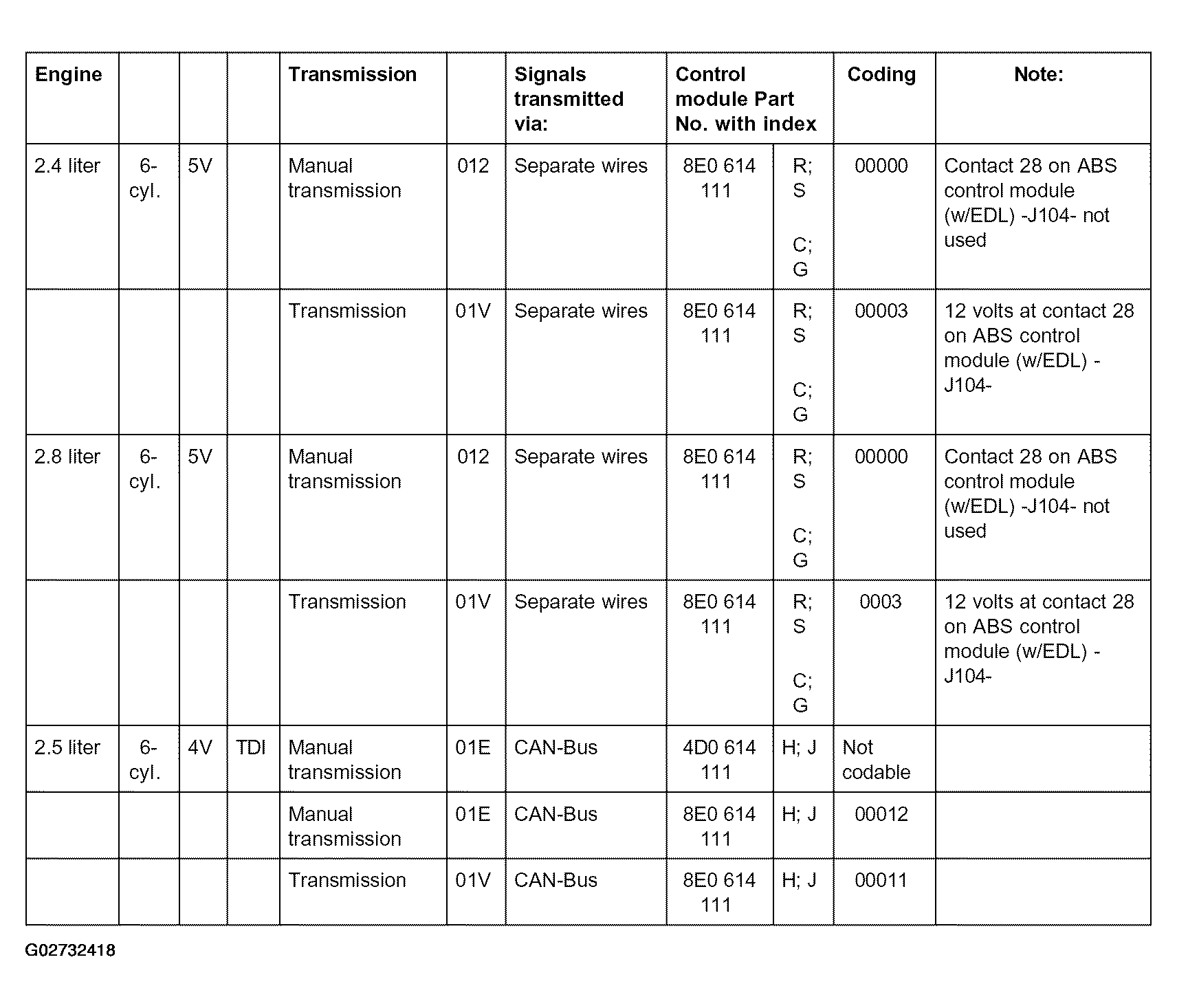

Fig 2: ABS, EDL And ASR Coding Chart (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.

The display will show the control module identification and the coding that has been entered (For example, 00000).

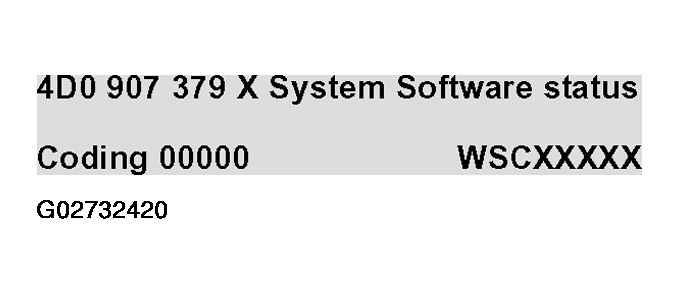

Fig 3: VAG 1551 Scan Tool Display - Control Module Identification (Example)

Courtesy of AUDI OF AMERICA, INC.

• Press --> button.

Indicated on display

Fig 4: VAG 1551 Scan Tool Display - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

• Press buttons -0- and -6- for the function "End Output" and confirm entry with the -Q- button.
