ABS, EDL control module versions

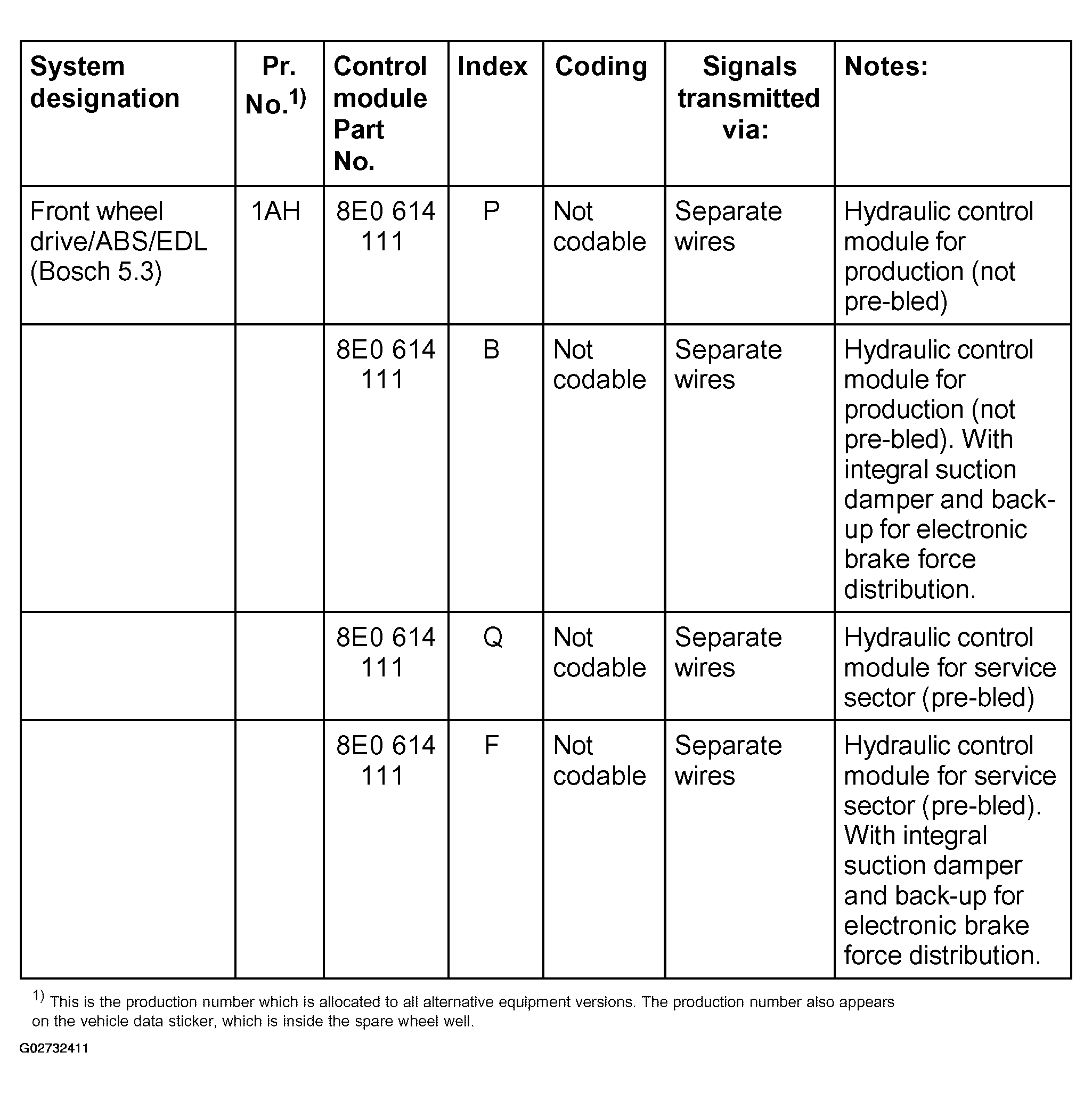

Fig 1: ABS And EDL Control Module Versions Description Chart (1 Of 2)
G02732411Courtesy of AUDI OF AMERICA, INC.

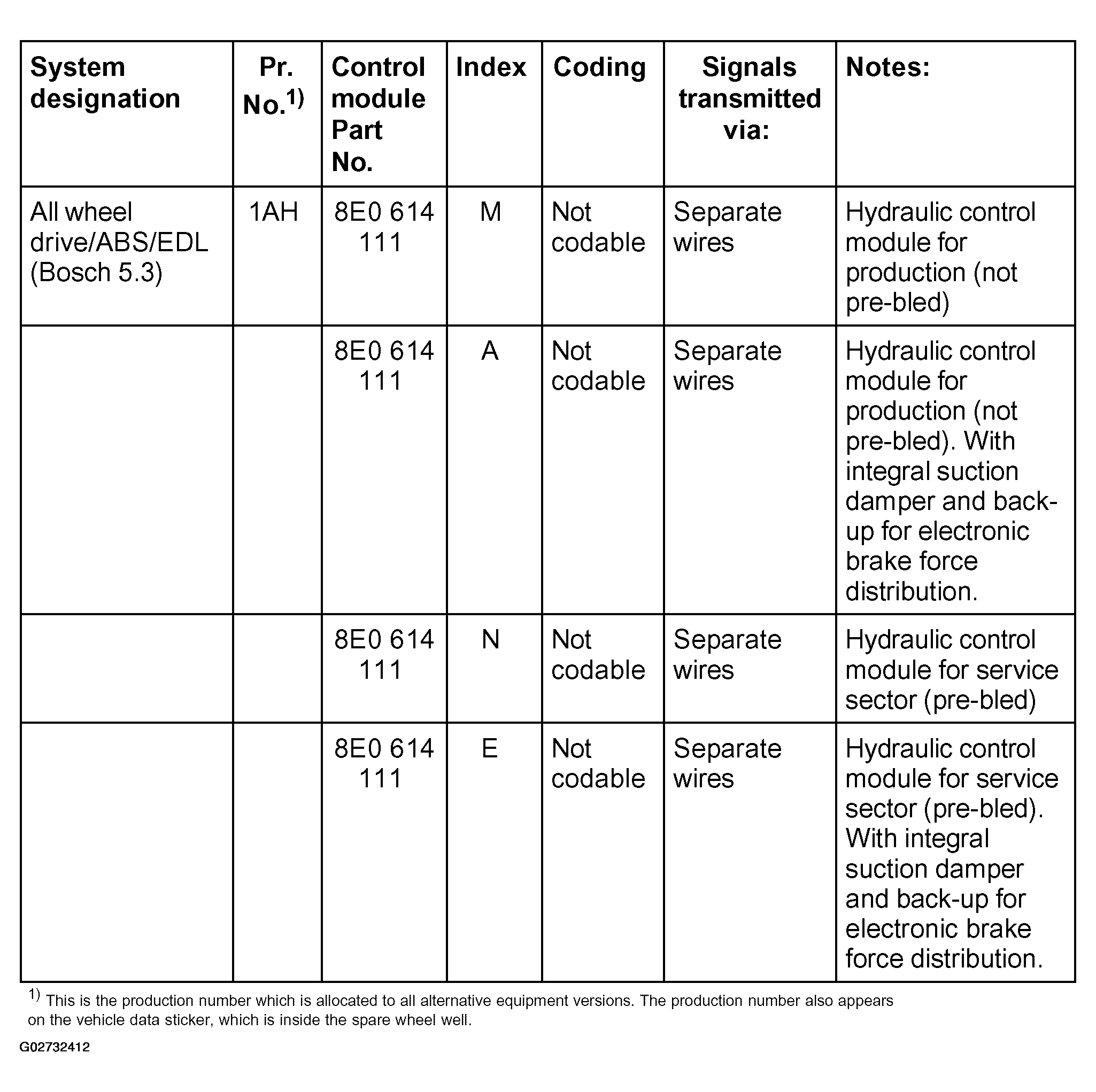

Fig 2: ABS And EDL Control Module Versions Description Chart (2 Of 2)
G02732412Courtesy of AUDI OF AMERICA, INC.
