Lower A-pillar trim, removing and installing

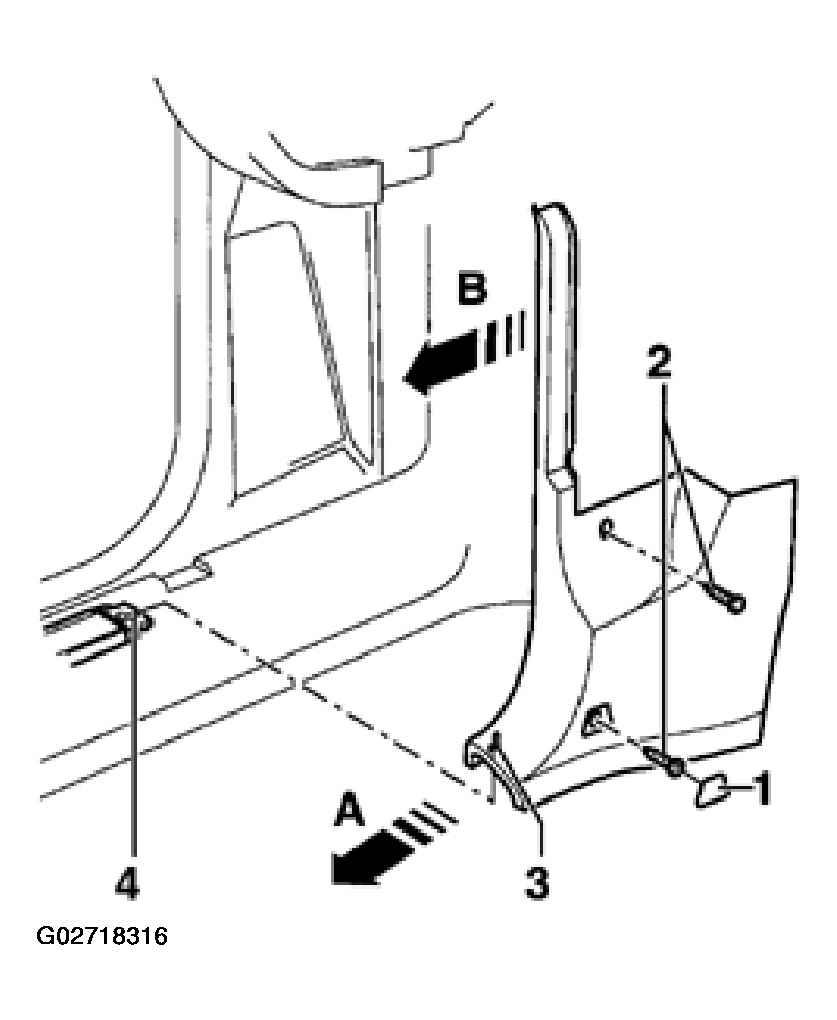

- Pry out cover -1-.
- Remove screws -2- (2x).
Tightening torque: 2.5 Nm (22 in lb)
- Pull lower A-pillar trim in direction of -arrow A- until pin -3- can be detached from groove -4-.
- Pull extension of lower A-pillar trim in direction of -arrow B- out of retainers (2x).
