Actuating Evaporative emission (EVAP) canister purge regulator valve -N80-

WARNING: This page is about a different car, the 2003 Audi S6 and 2002 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Press -->key.

Indicated on display

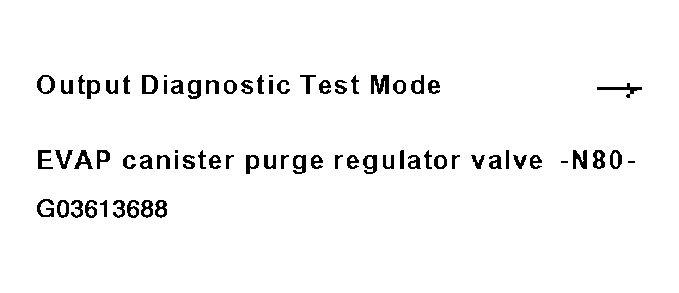

Fig 1: VAG 1551 Scan Tool Display - Actuating Evaporative Emission Canister Purge Regulator Valve

Courtesy of AUDI OF AMERICA, INC.

Valve will continue to be actuated (clicks) until -->key is pressed to switch to next control element.

If the solenoid valve is not actuated (does not click).

Check Evaporative emission (EVAP) canister purge regulator valve - N80-. See EVAP CANISTER PURGE REGULATOR VALVE -N80-, CHECKING .
