Vehicles with double clamp between center and rear mufflers

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For vehicles with double clamps between center and rear muffles, the center muffler must also be aligned.

Loosen bolts of double clamps between catalytic converters and center mufflers.
Push exhaust pipes forward (in direction of arrow) untill pretension at left rear mount is at center muffler is a = 7 to 9 mm (0.3 to 0.4 in.).

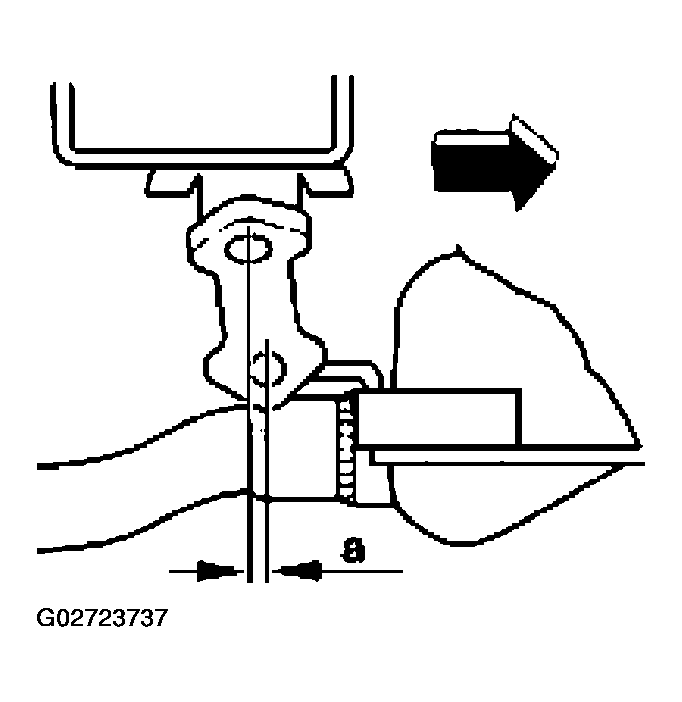

Fig 1: Pushing Exhaust Pipes Forward Left Rear Mount Is At Center Muffler
Courtesy of AUDI OF AMERICA, INC.
Tighten double clamps between catalytic converters and center mufflers evenly to 40 Nm (30 ft lb). Installation position => DOUBLE CLAMPS FRONT, INSTALLATION POSITION .
Push rear muffler forward (in direction of arrow) until pretension at right rear mount at rear muffler is:
- Dimension a = 7 to 11 mm (0.3 to 0.43 in.)

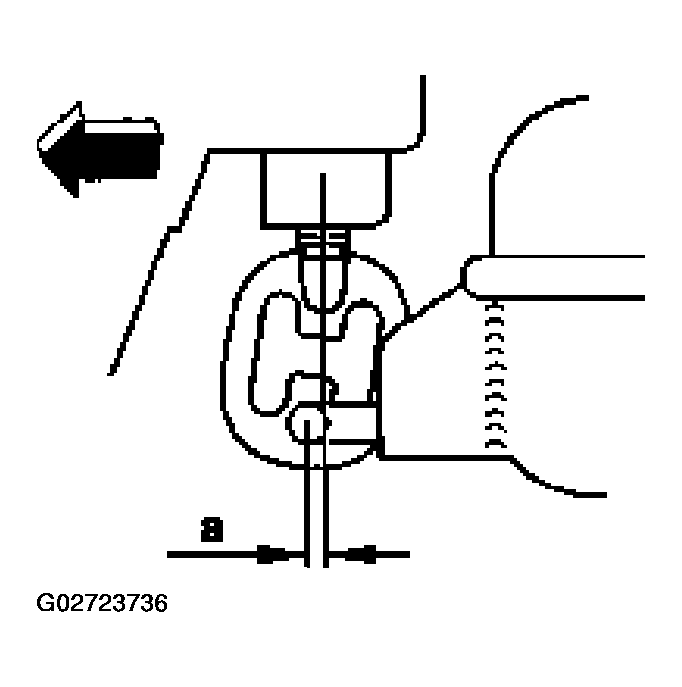

Fig 2: Pushing Rear Muffler Forward At Right Rear Mount At Rear Muffler
Courtesy of AUDI OF AMERICA, INC.
Tighten double clamps between and center and rear mufflers evenly to 40 Nm (30 ft lb). Installation position, see DOUBLE CLAMPS FRONT, INSTALLATION POSITION .
