Separating point between center and rear mufflers

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

The cutting point between center an rear mufflers is used to replace parts separately if required.

Cut through connecting pipes between center and rear mufflers at points marked with groove:
- Dimension a = approx. 244 mm (9.6 in.)

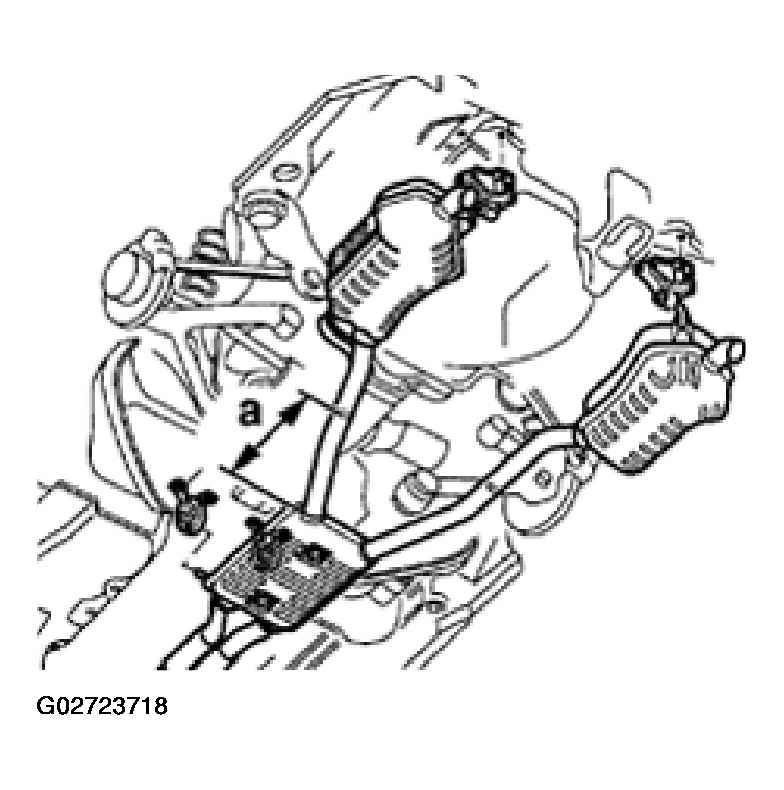

Fig 1: Separating Point Between Center And Rear Mufflers

Courtesy of AUDI OF AMERICA, INC.
